Basic Info.

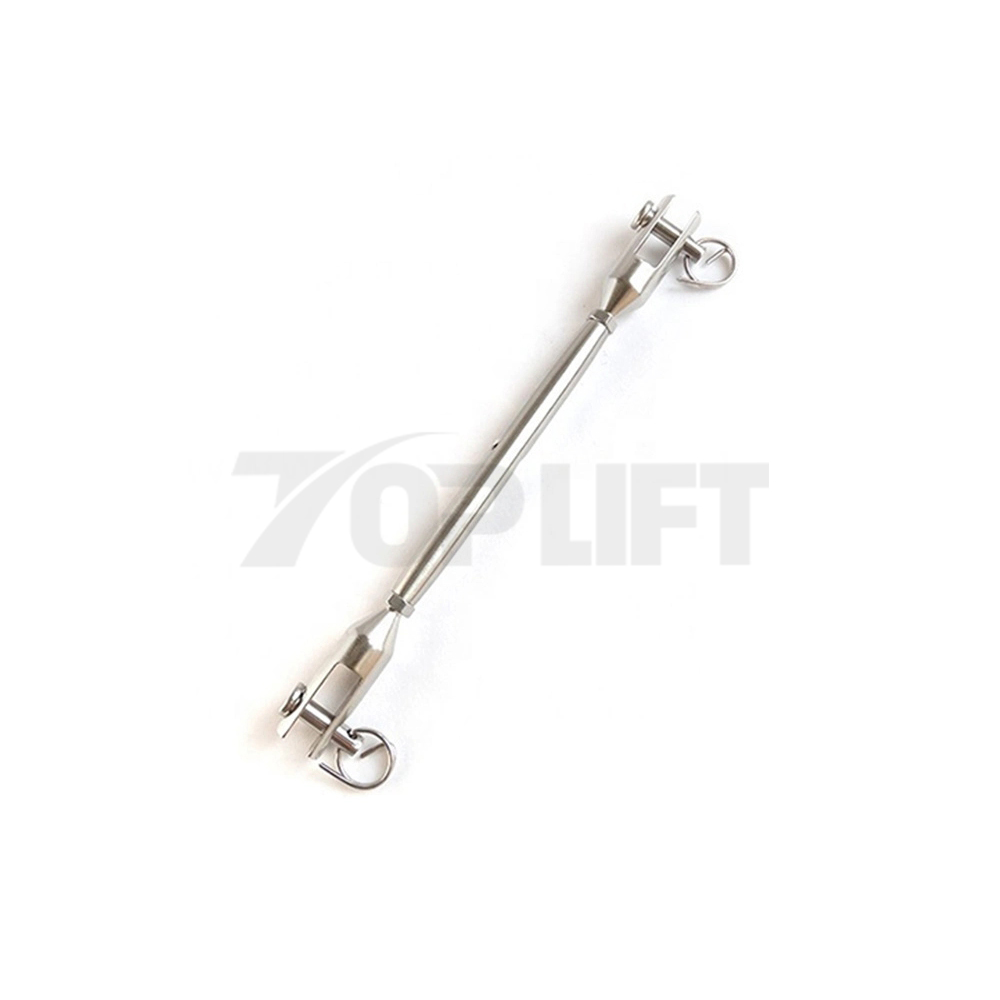

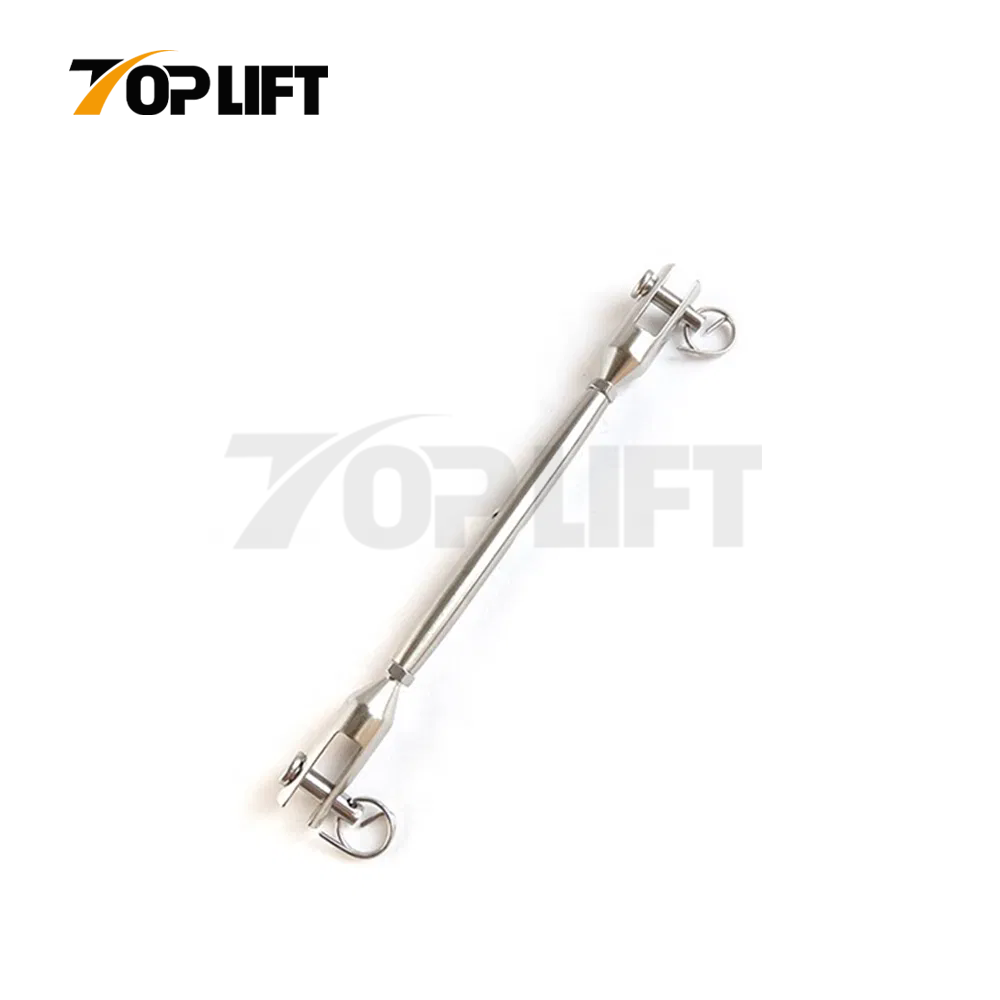

A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems.
| Product name | JIS Type Turnbuckle | Type | closed body | |
| Material | stainless steel 316 or 304 | Trademark | TOPLIFT or OEM | |
| Usage | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings | HS Code | 73269090 |
Features
Preferably stainless steel 316 or 304 material, corrosion resistance;
A variety of specifications are available to meet different needs;
Closed tube design to prevent damage to the nut during use;
High-precision polishing treatment, effective anti-corrosion, and anti-rust;
Notice:Turnbuckle srecommended for straight orin-Line pull Only
Specification

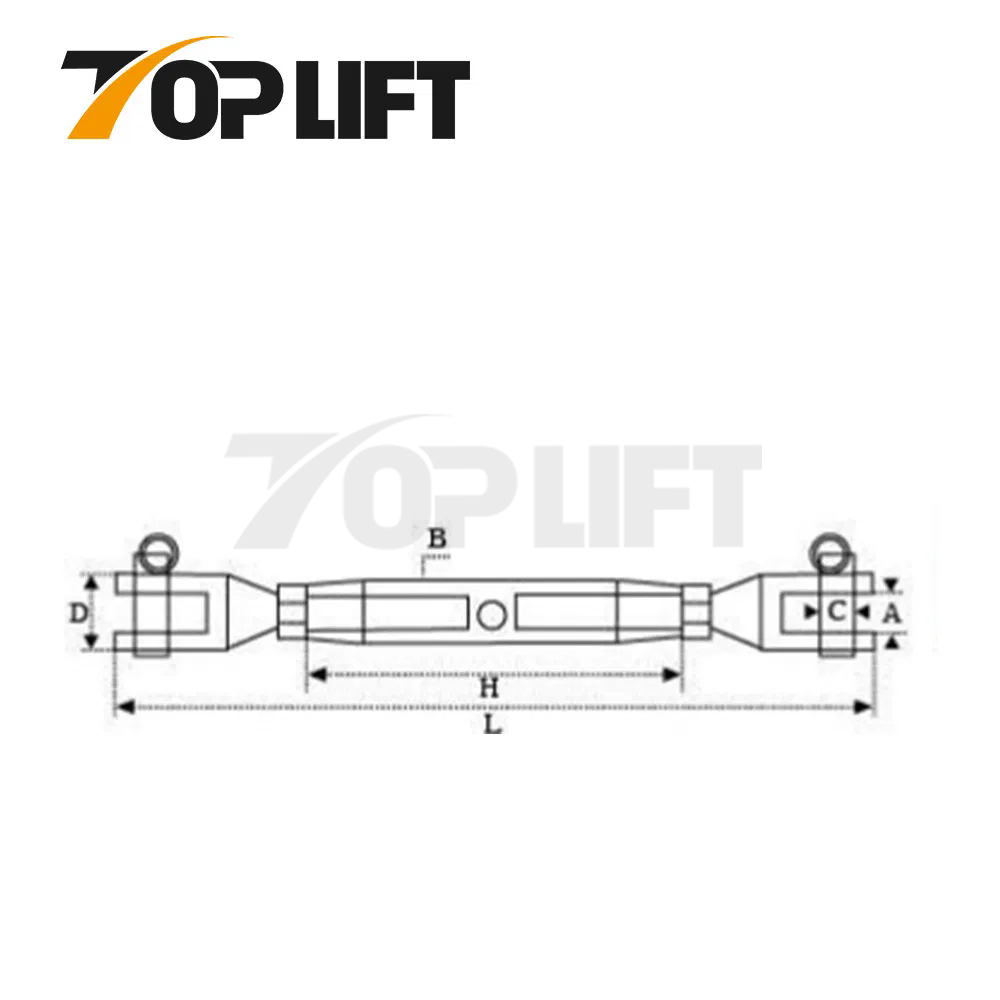

A /mm | B /mm | C /mm | D /mm | E /mm | H /mm | L /mm | WLL /T |
4 | 8 | 4 | 10 | 4 | 65 | 120 | 0.15 |
5 | 9 | 4 | 11.5 | 4 | 70 | 130 | 0.25 |
6 | 10 | 5 | 13 | 4 | 78 | 145 | 0.35 |
8 | 12 | 7 | 16 | 6 | 88 | 172 | 0.7 |
10 | 15 | 8 | 20 | 7 | 99 | 200 | 0.1 |
12 | 19 | 10 | 23 | 8 | 125 | 214 | 1.5 |
14 | 20 | 10 | 28 | 8 | 149 | 290 | 1.9 |
16 | 25 | 12 | 32 | 10 | 170 | 342 | 2.2 |
20 | 30 | 16 | 40 | 10 | 220 | 420 | 3.1 |
