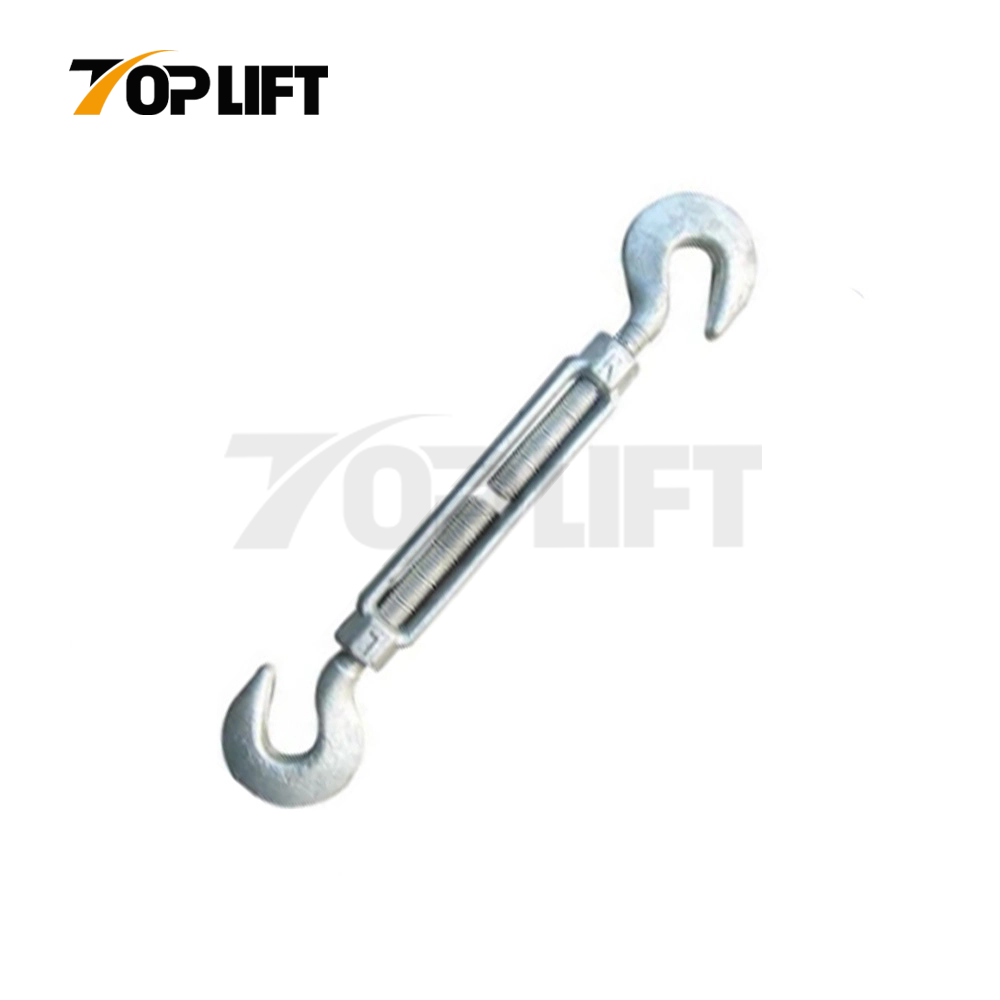

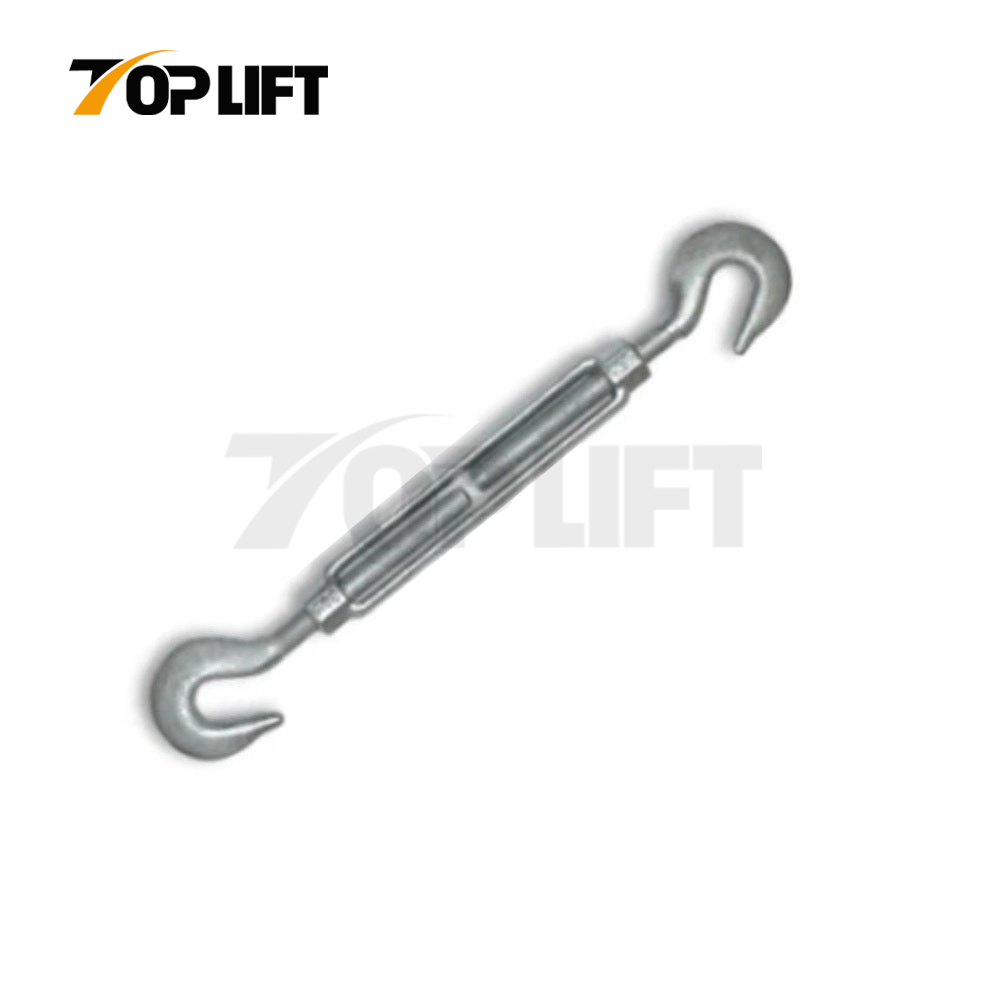

US Type Turnbuckle Hook & Hook
Basic Info.
A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It Normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
Product name | US Type Turnbuckle | Type | open body Hook & Hook | |
Material | Carbon steel | Finish | Hot Dipped Galvanized | |
Usage | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings | HS Code | 7318190000 |
Features
Standard: Meet US Federal Specification FF-T-791B, Type 1, Form1
Production Process: Drop Forged
Material: Carbon Steel
Safety Factor: 5:1
Finish: Hot Dipped Galvanized
Notice:Turnbuckle srecommended for straight orin-Line pull Only

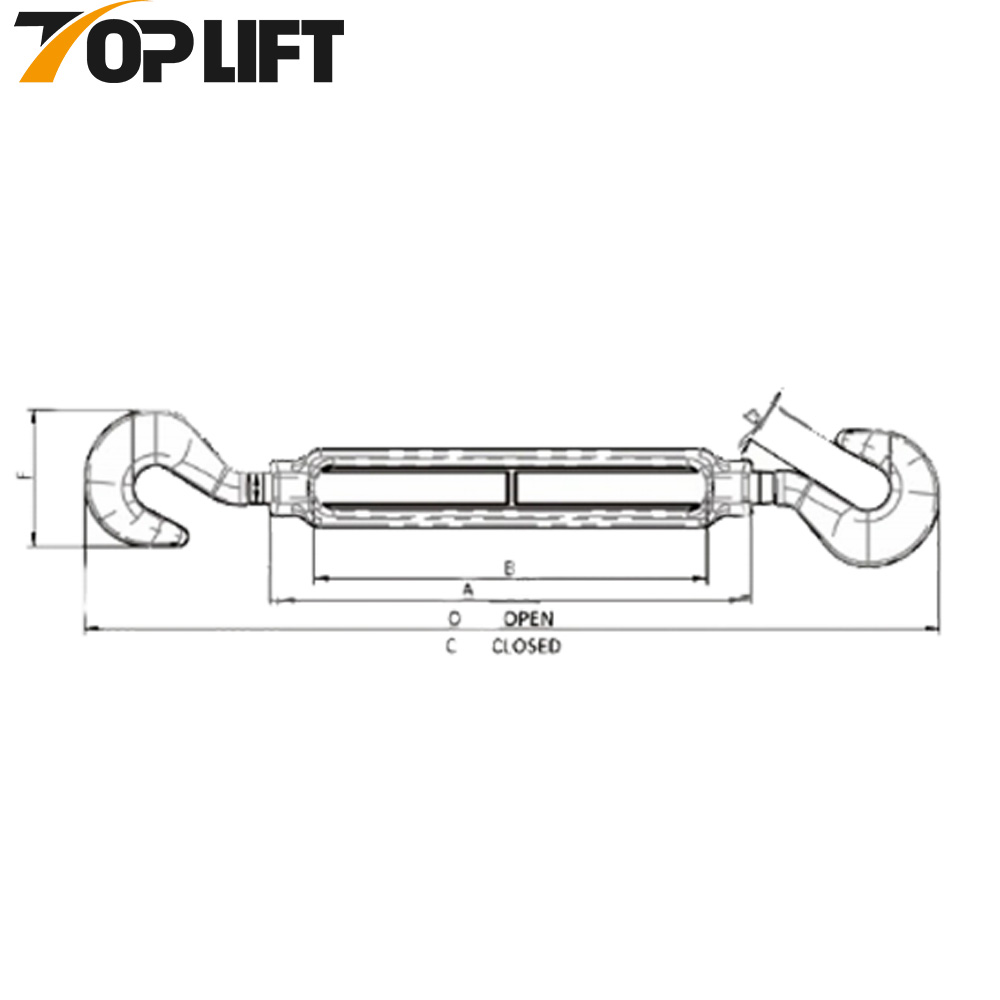

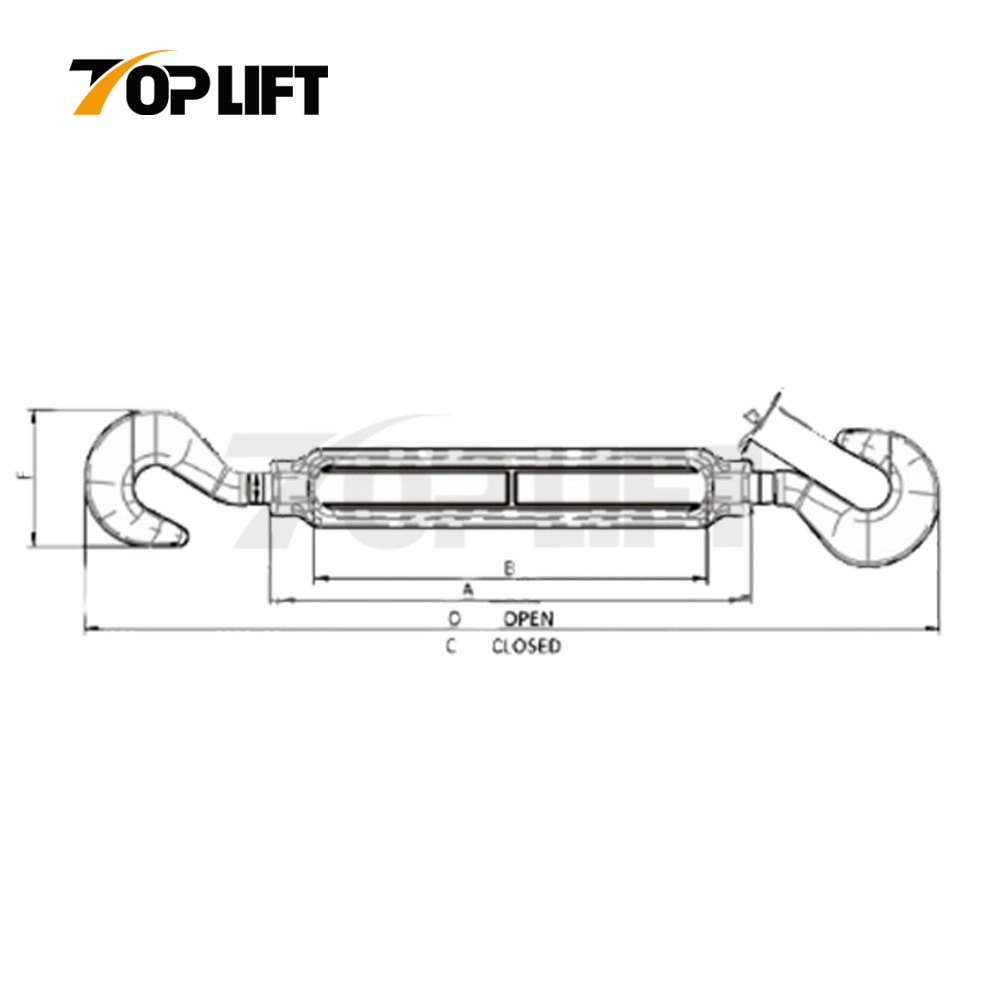

Specification
US Turnbuckle,Type Hook and Hook | 单位 | Unit:mm | |||||||
规格Size | 安全拉力WLL(T) | 重量Weight(Kg) | 尺寸 Dimensions | 公差Tolerance | |||||
A | B | D | F | C | O | ||||
1/4×4 | 0.18 | 0.13 | 120 | 101.5 | 11.5 | 32 | 205 | 306.5 | ±5% |
5/16×4-1/2 | 0.32 | 0.21 | 138 | 114 | 13 | 38 | 241 | 355 | ±5% |
3/8×6 | 0.45 | 0.35 | 180 | 152 | 14 | 45 | 301 | 453 | ±5% |
1/2×6 | 0.68 | 0.754 | 190 | 152 | 17 | 58 | 364 | 516 | ±5% |
1/2×9 | 0.68 | 0.924 | 267 | 229 | 17 | 58 | 424 | 653 | ±5% |
1/2×12 | 0.68 | 1.164 | 343 | 305 | 17 | 58 | 516 | 821 | ±5% |
5/8×6 | 1.02 | 1.35 | 203 | 152 | 21 | 71 | 388 | 540 | ±5% |
5/8×9 | 1.02 | 1.53 | 279 | 228 | 21 | 71 | 464 | 692 | ±5% |
5/8×12 | 1.02 | 1.81 | 355 | 304 | 21 | 71 | 540 | 844 | ±5% |
5/8×18 | 1.02 | 2.4 | 507 | 456 | 21 | 71 | 692 | 1148 | ±5% |
3/4×6 | 1.36 | 2.12 | 213 | 152 | 25 | 84.5 | 440 | 592 | ±5% |
3/4×9 | 1.36 | 2.52 | 289 | 229 | 25 | 84.5 | 516 | 745 | ±5% |
3/4×12 | 1.36 | 2.78 | 365 | 305 | 25 | 84.5 | 590 | 895 | ±5% |
3/4×18 | 1.36 | 3.42 | 517 | 457 | 25 | 84.5 | 744 | 1201 | ±5% |
7/8×12 | 1.81 | 3.98 | 374 | 304 | 28 | 96 | 636 | 940 | ±5% |
7/8×18 | 1.81 | 5.01 | 527 | 457 | 28 | 96 | 788 | 1245 | ±5% |
1×6 | 2.27 | 4.32 | 233 | 152 | 31 | 108 | 524 | 676 | ±5% |
1×12 | 2.27 | 5.61 | 385 | 305 | 31 | 108 | 678 | 983 | ±5% |
1×18 | 2.27 | 6.56 | 537 | 457 | 31 | 108 | 830 | 1287 | ±5% |
1×24 | 2.27 | 8.01 | 690 | 610 | 31 | 108 | 982 | 1592 | ±5% |
1 1/4×12 | 2.95 | 9.61 | 388 | 304 | 38 | 130 | 750 | 1054 | ±5% |
1 1/4×18 | 2.95 | 11.45 | 541 | 457 | 38 | 130 | 904 | 1361 | ±5% |
1 1/4×24 | 2.95 | 13.13 | 693 | 609 | 38 | 130 | 1056 | 1665 | ±5% |
1 1/2×12 | 3.4 | 12.76 | 403 | 305 | 48 | 146 | 824 | 1129 | ±5% |
1 1/2×18 | 3.4 | 15.04 | 555 | 457 | 48 | 146 | 976 | 1433 | ±5% |
1 1/2×24 | 3.4 | 20.48 | 708 | 610 | 48 | 146 | 1128 | 1738 | ±5% |
