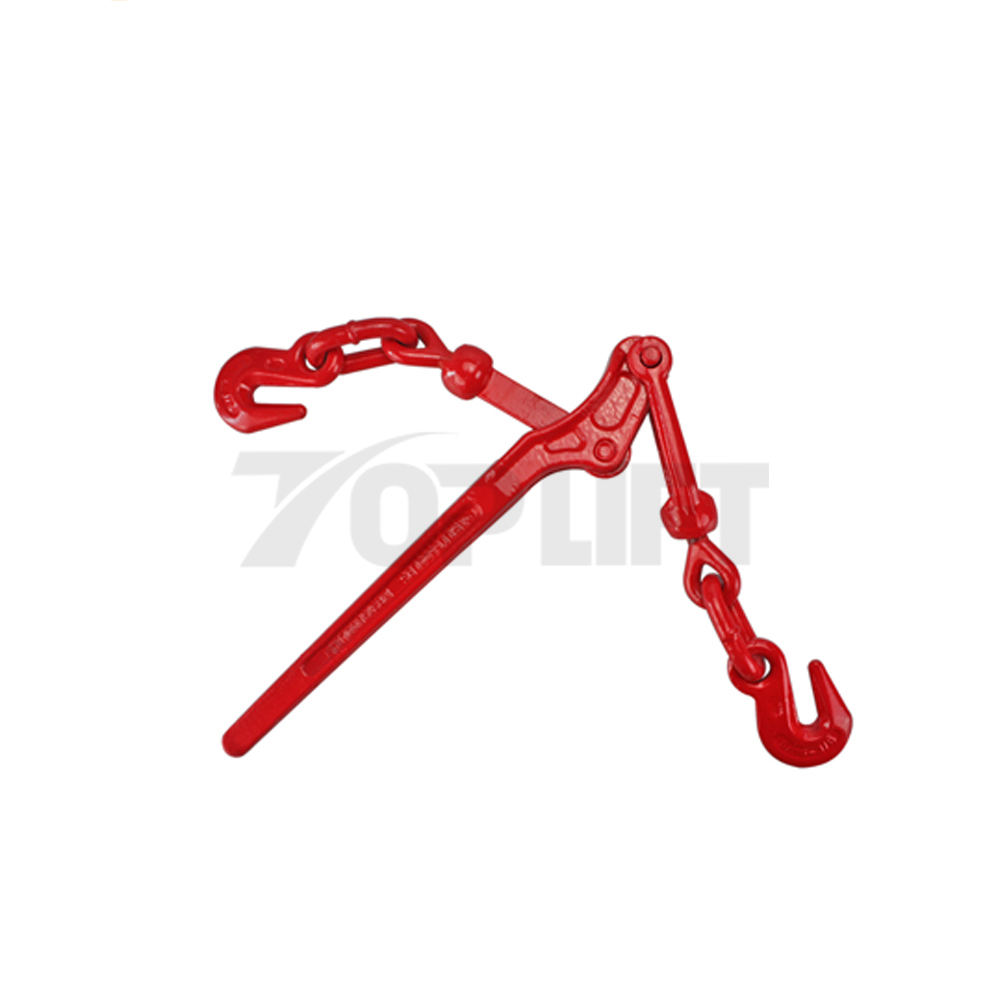

TP-10-910
| Quantity: | |
|---|---|
Features:
1. Comply with EN standard EN12195-3.
2. With G80 eye grab hook.
3. Suitable for G80 chain.
4. Surface Finish: Powder Plastified(Colour code: Red RAL 3020/Yellow RAL 1003)
5. The hook can be rotated 360 degrees, flexible operation, and can be applied to various angles.
Not for lifting,only for lashing
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification

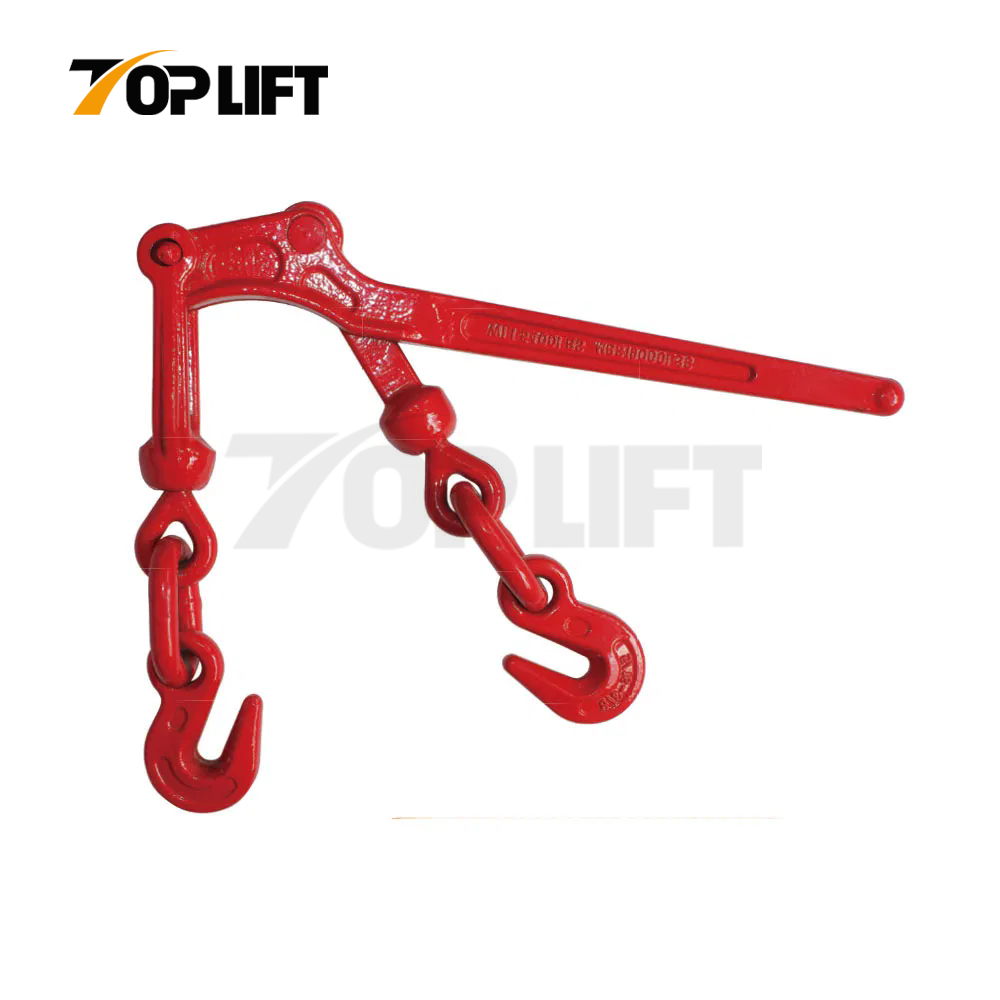

| G100 LEVER TIGHTENER ACCORDING TO EN 12195-3 STANDARD | ||||||||
| ITEM NO. | WEIGHT (kg) | WLL (LBS) | MBL (LBS) | L±4 (mm) | LMAX (mm) | LMIN (mm) | E±1 (mm) | L'±2 (mm) |
| 5/16-3/8 | 3.9 | 5400 | 19000 | 403 | 582 | 482 | 13 | 272 |
Details & Advantages
It is made of alloy steel die forging and supplied after several reasonable heat treatments. It has the advantages of beautiful appearance, high strength, high wear resistance and high fit.
Uniform surface and beautiful appearance.
Usage Scenario
Different Types
Instructions for use
1. Check the condition of the tool
Always check that the LEVER CHAIN BINDER is in good condition and that the chain is not worn, broken or otherwise damaged before use.
Ensure that the lever operating mechanism operates smoothly and that the safety catch is functioning properly.
2. Choosing the right chain and bundling method
Ensure that the load capacity of the chain matches the weight of the items to be bundled. Select the appropriate chain and strapping device according to the load.
Use suitable strapping that does not allow the chain to be over-tensioned or over-loosened. Over-tightening may damage the bundle, while over-loosening may cause the item to become unstable.
3. Correct installation and operation
Secure the ends of the chain correctly to the binding points of the bundle to ensure that the chain passes smoothly through the bundle to avoid damaging the item.
Maintain a smooth action when tightening the chain using the lever mechanism to avoid sudden force that may cause damage to the tool or make it unsafe.
Ensure that the lever is in a safe position and firmly seated to prevent it from coming loose.
