Basic Info.
Product name | alloy aluminum ferrule | Brand | Toplift or OEM | |
Material | Aluminum alloy | Place of origin | China | |
Size | inch 1/4 to 1-1/2 | Packing | Cartons and pallets | |
Surface | Self color | Using range | To conclude with a pipe joint | |
Function | Fastener for wire rope |
Features

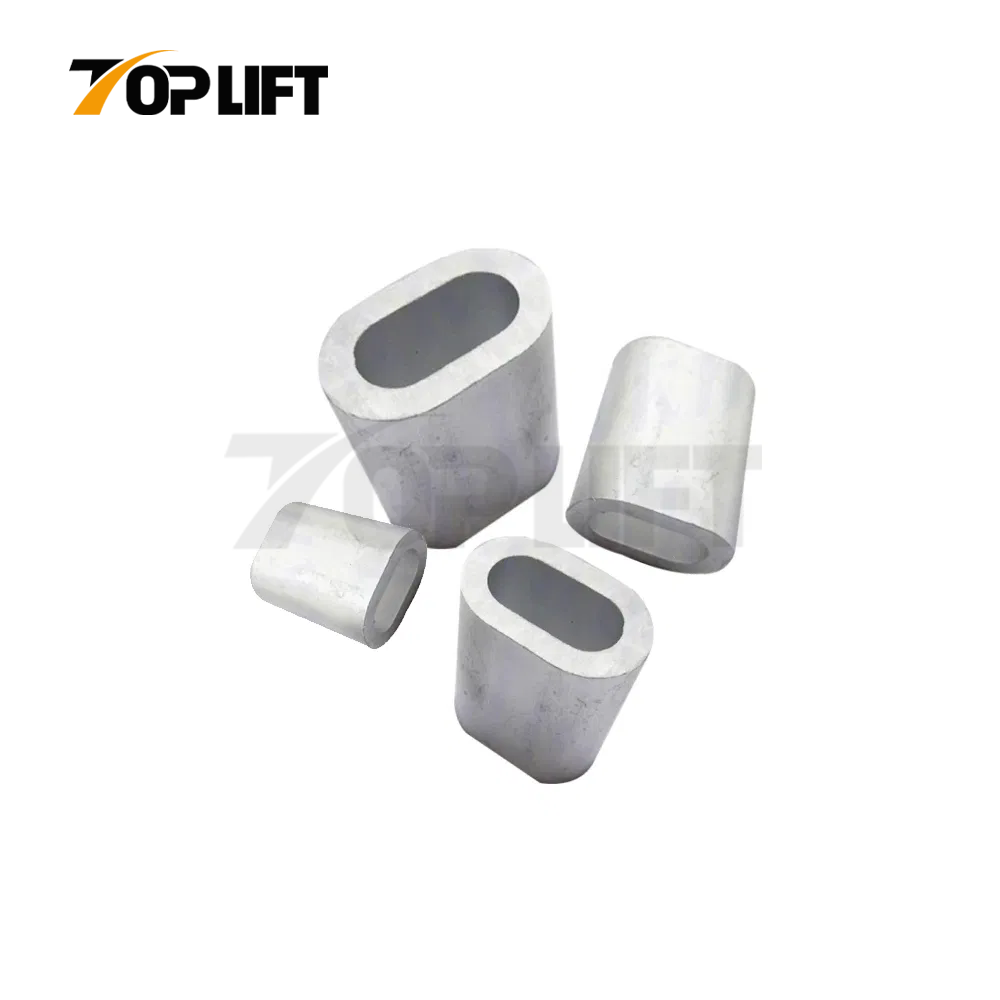

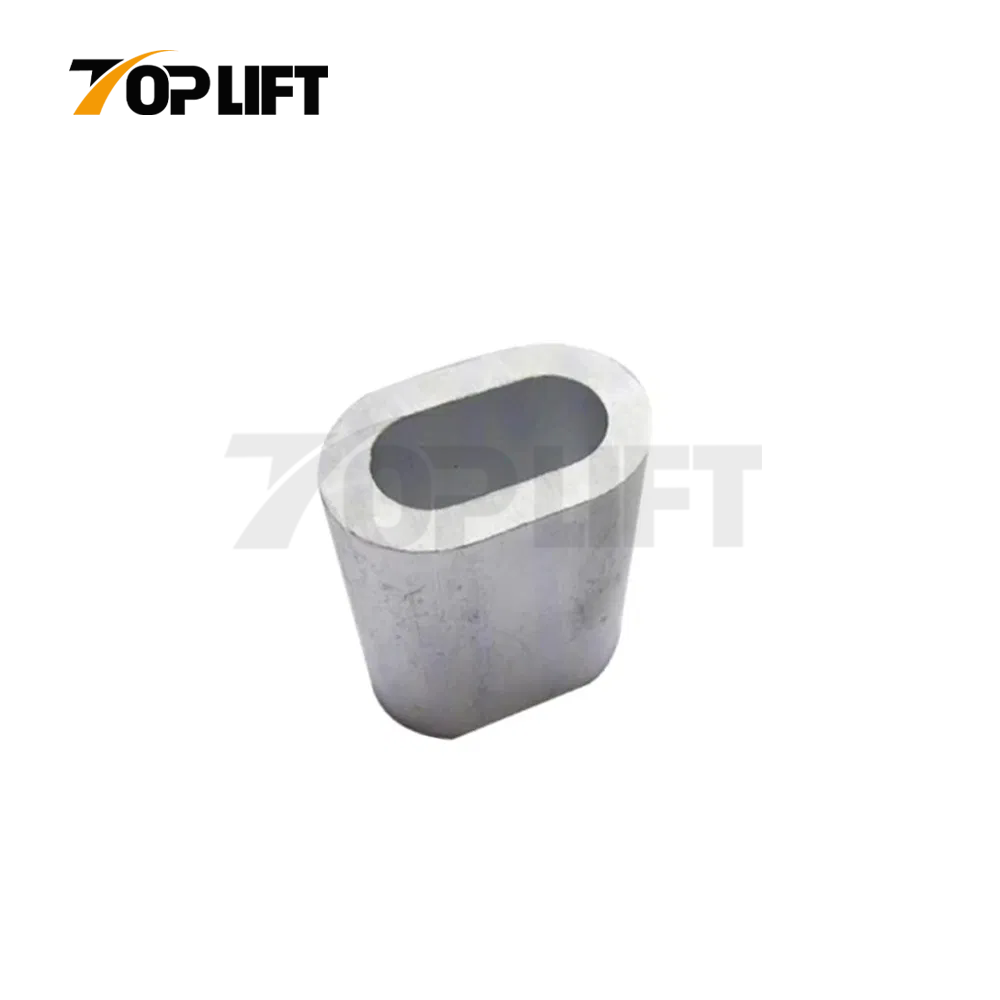

Aluminum Oval Sleeves are extruded from a high quality aluminum alloy, and heat treated for excellent cold forming or swaging qualities.
Reyurn eye splice using ALUMINUM SLLEEVES will attain 95% of improved plow wire rope catalog strength when properly swaged.
CAUTION: Return eye slings using oval aluminum sleeves must be properly swaged to attain strength.
Specification
Size | A | B | C | D | L | Weight |
inch | inch | inch | inch | inch | inch | lbs/100pcs |
1/4 | 16/64 | 19/32 | 17/32 | 27/332 | 1 | 2.3 |
5/16 | 3/8 | 3/4 | 21/32 | 11/32 | 1-17/84 | 4.3 |
3/8 | 7/16 | 27/32 | 3/4 | 15/32 | 1-3/8 | 5.3 |
7/16 | 1/2 | 1 | 29/32 | 1-13/32 | 1-23/32 | 11 |
1/2 | 19/32 | 1-11/64 | 11/32 | 1-5/8 | 1-15/16 | 16.5 |
9/16 | 23/32 | 1-3/8 | 17/32 | 1-57/64 | 2-7/32 | 22 |
5/8 | 3/4 | 1-1/2 | 1-3/8 | 2-3/32 | 2-1/2 | 32 |
3/4 | 53/64 | 1-11/16 | 1-1/2 | 2-3/8 | 2-7/8 | 52 |
7/8 | 61/64 | 1-7/8 | 1-11/16 | 2-5/8 | 3 | 67 |
1 | 13/32 | 2-7/32 | 1-31/32 | 3-3/32 | 3-3/4 | 125 |
1-1/8 | 19/32 | 2-9/16 | 2-5/16 | 3-19/32 | 4-9/32 | 172 |
1-1/4 | 1-13/32 | 2-25/32 | 2-1/2 | 3-7/8 | 4-7/16 | 214 |
1-1/2 | 1-21/32 | 3-19/64 | 3-1/8 | 4-3/4 | 5-35/64 | 390 |
Product Details
Our Products
Packing
FAQ
1. Q: Do you offer OEM service?
A: OEM accepted and offer a confidentiality agreement and business secret contract for your design safe.
2. Q: Can we just customize the goods?
A: Yes, you can. Just give us your size and we will give you a quotation.
3. Q: Can I order products that aren't shown on your website?
A: If you're looking for a product that doesn't currently show on the website, please contact us and we'll respond to you in a positive and efficient style.
4. Q: Lowest price in China?
A: Definitely we offer very competitive prices for a single product, further, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expect.5. Q: What makes you different from others?
A: 1) Our Excellent Service6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stages of your order. You will get the latest information in time.
