TP-VL
| Quantity: | |
|---|---|

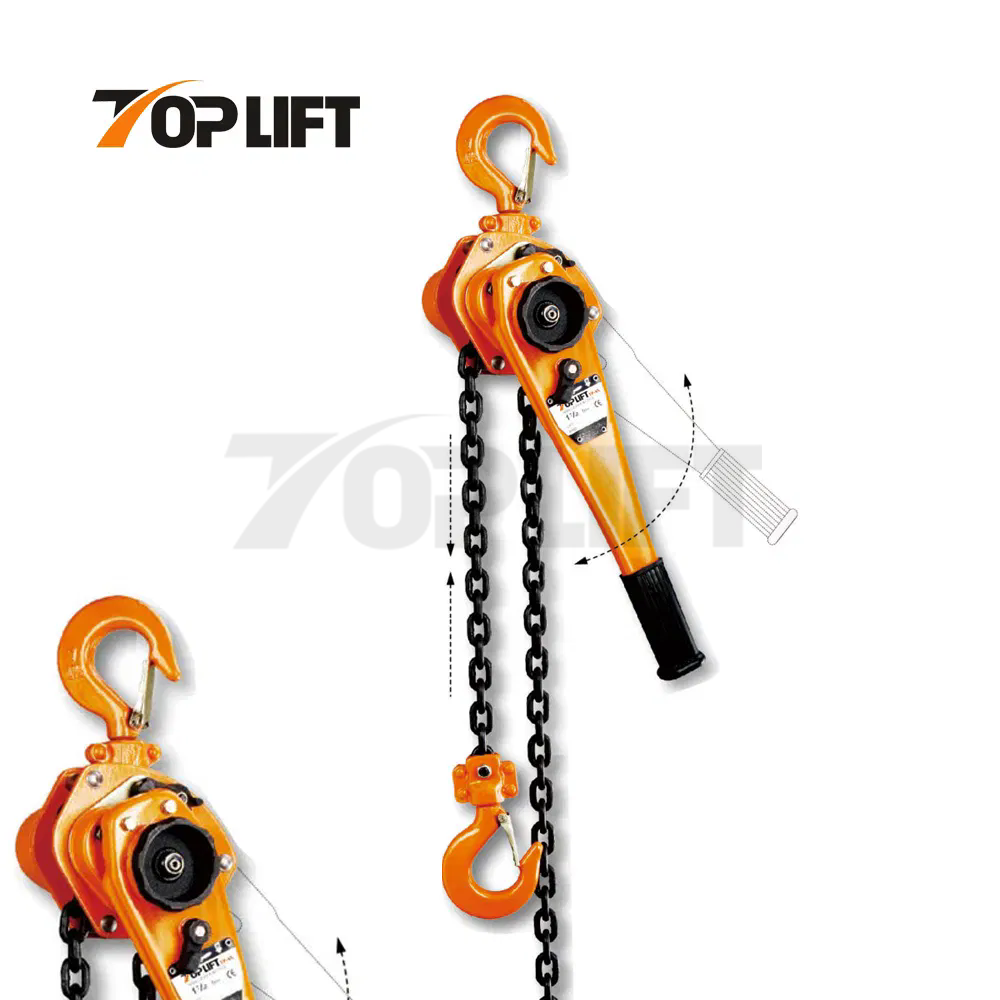

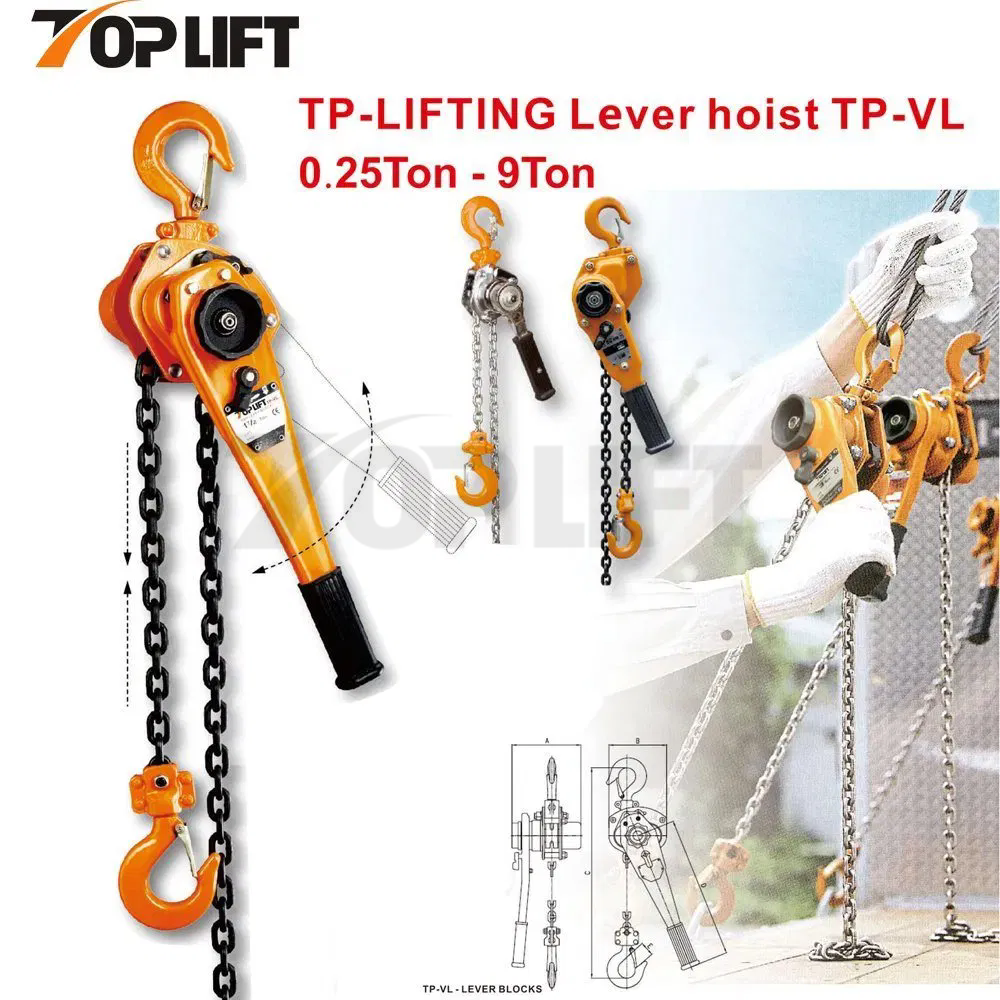

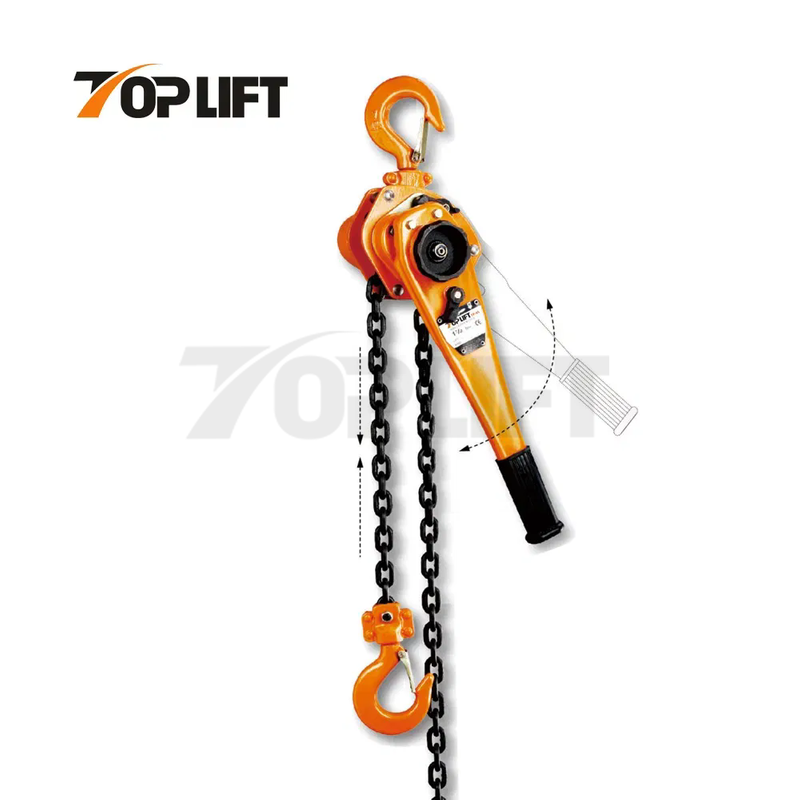

The compact and lightweight premium class ratchet hoist is designed for demanding application. The maximum lifting height of this powerful chain hoist is 3 meters high and the standard lift height is 1.5 meters.Chain block is widely used in factories, miners, docks, warehouses, construction sites, agriculture and other fields, to lift goods and lifting equipment, especially in conditions with no power supply or narrow , demonstrate superiority.
Features:
1. Capacity from 0.25T to 9T.
2. Chain rail allows chain to operate smoothly.
3. All unpainted parts with high-grade corrosion protection.
4. Bearings inside load chain sprocket increase mechanical efficiency.
5. Precision-machined alloy steel gears for exceptional durability and long life
6. The top hook mounting articulates to aid in rigging and help insure straight line loading between hooks.
7. Drop forged Alloy hooks are designed to stretch when overloaded before chain failure and are equipped with heavy duty cast steel safety latch.
8.The housing is made of steel which increase durability and lengthening tool life. It is also covered powder coating and fully encapsulated aganinst moisture and dust.
Our advantages
1. Provide OEM service.
2. We have our own brand of chain hoist: POLYTEX
3. The same quality product with the best price.
4. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
Model | Rated load (Ton) | Standard Lift (m) | Test Load (Ton) | Efforts Required at Capacity (N) | Dia. Of Load Chain (mm) | No. Of Load Chains | Major Dimensions(approx)(mm) | Net Weight (kg) | Extra Weight Per Meter of Extra Lift(kg) | ||||
A | B | C | D | E | |||||||||
TP-VL020 | 0.25 | 1.0 | 0.375 | 205 | 4 | 1 | 92 | 75 | 205 | 153 | 17 | 1.85 | 1.85 |
TP-VL050 | 0.50 | 1.5 | 0.750 | 260 | 5 | 1 | 110 | 82 | 260 | 261 | 23 | 4.6 | 4.6 |
TP-VL075 | 0.75 | 1.5 | 1.125 | 295 | 6 | 1 | 152 | 128 | 295 | 256 | 26 | 7.7 | 7.7 |
TP-VL100 | 1.00 | 1.5 | 1.500 | 295 | 8 | 1 | 152 | 128 | 295 | 256 | 26 | 8 | 8 |
TP-VL150 | 1.50 | 1.5 | 2.250 | 335 | 7.1 | 1 | 175 | 148 | 335 | 368 | 30 | 10.6 | 10.6 |
TP-VL200 | 2.00 | 1.5 | 3.000 | 385 | 8 | 1 | 175 | 160 | 385 | 368 | 33 | 14.8 | 14.8 |
TP-VL300 | 3.00 | 1.5 | 4.500 | 450 | 10 | 1 | 195 | 181 | 450 | 368 | 34 | 20 | 20 |
TP-VL600 | 6.00 | 1.5 | 9.000 | 615 | 10 | 2 | 195 | 232 | 615 | 368 | 47 | 28 | 28 |
TP-VL900 | 9.00 | 1.5 | 13.500 | 720 | 10 | 3 | 195 | 366 | 720 | 368 | 64 | 46 | 46 |
High Standard for Details
The lever block with high quality parts, includes double brakes, precise gear, G80 chain and high quality hook.
Real Shoot of Parts
The picture shows the real shoot of parts: forged shell, high-strength gear and other precise parts.
Packaging
The lever block is packed with carton box, wooden case or customized package.
Product Test Equipment
Before the product leaves the factory, it will pass strict testing.
Factory Environment
We strictly control every step in order to bring the best products to our customers.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send you the video to guide your engineers.
2.How to ensure the quality?
Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
