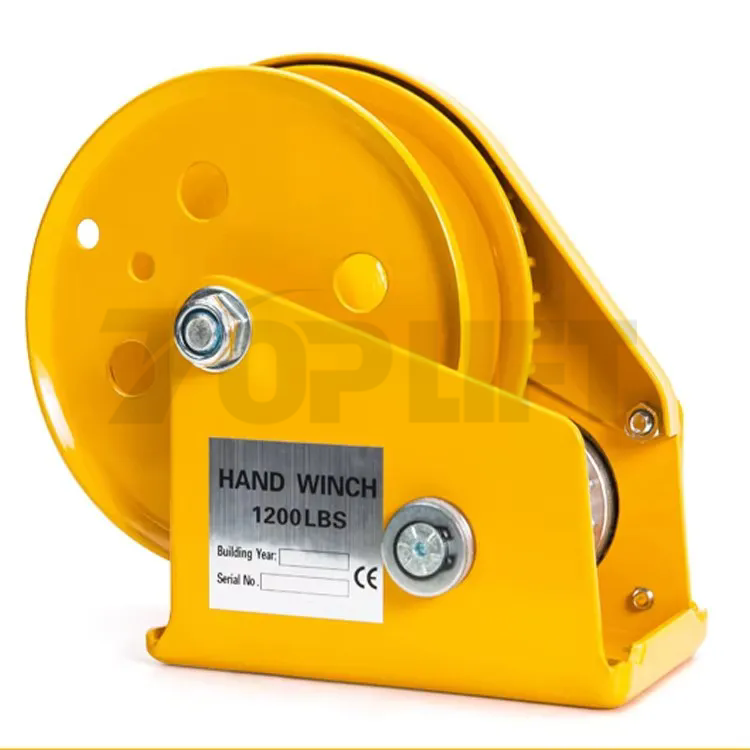

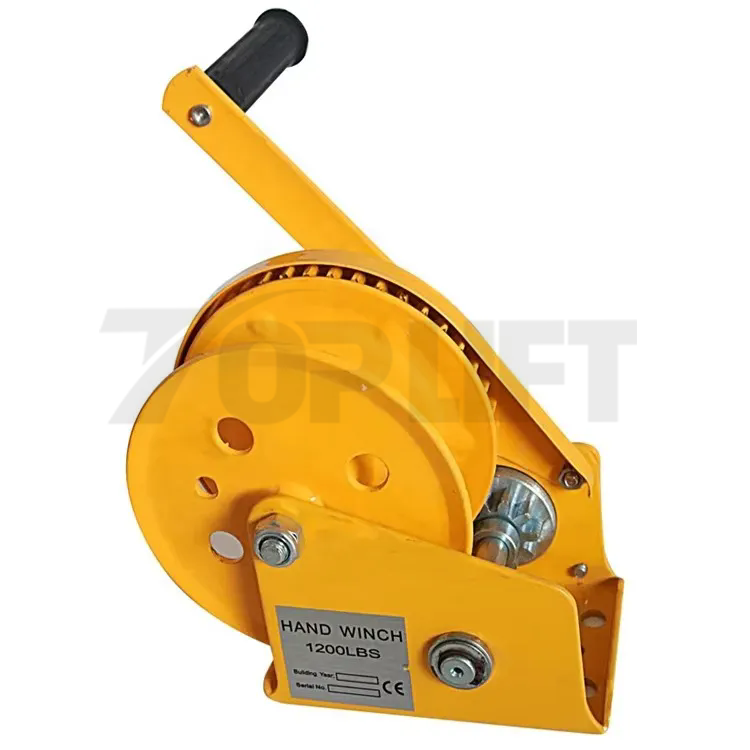

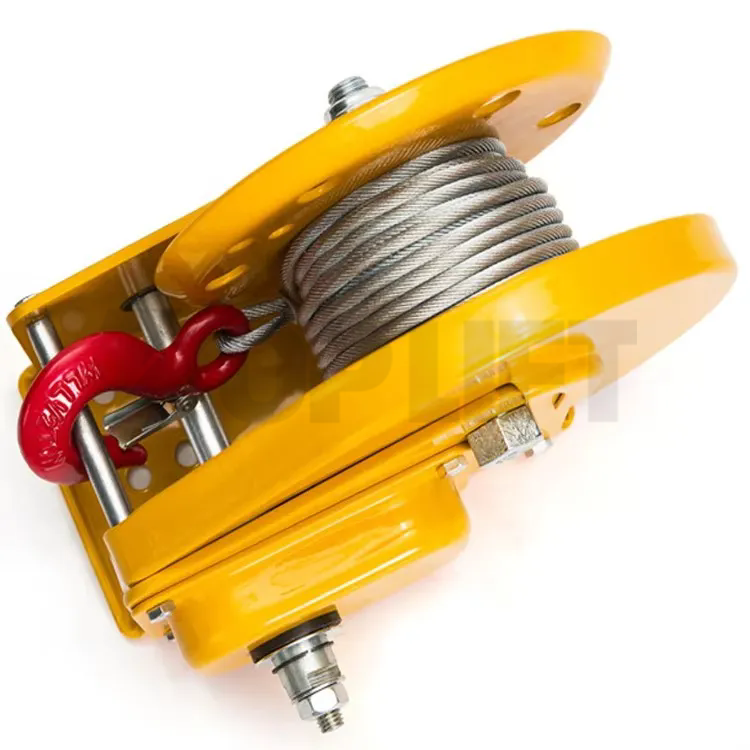

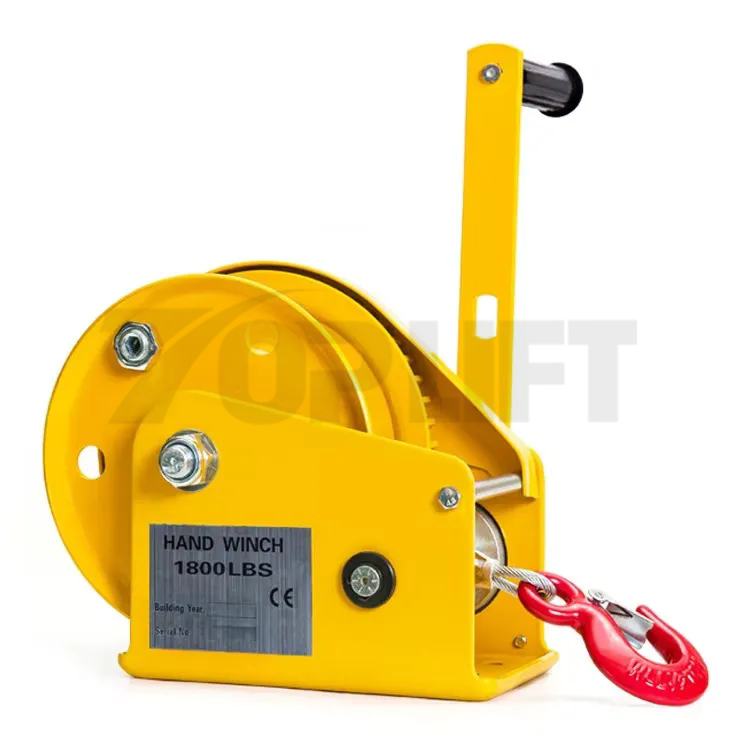

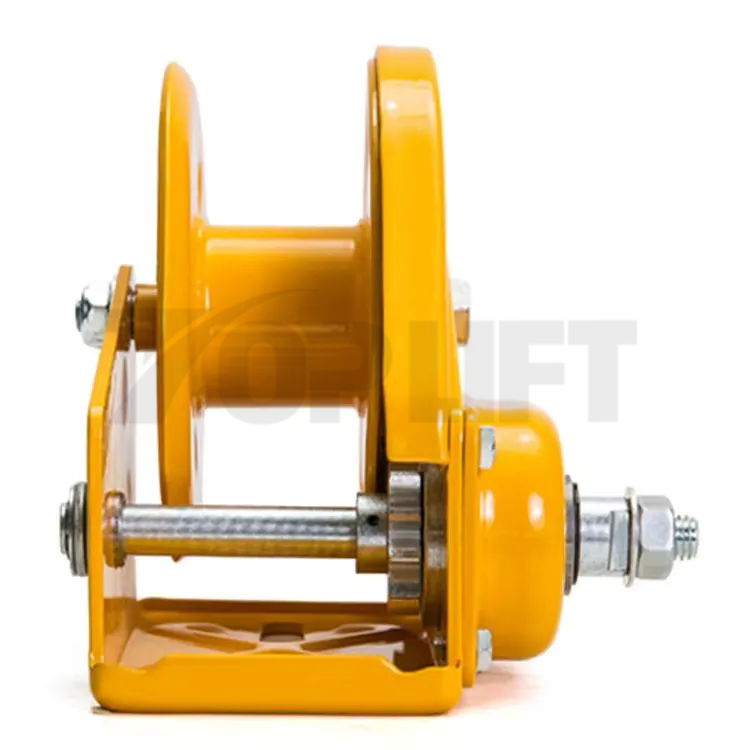

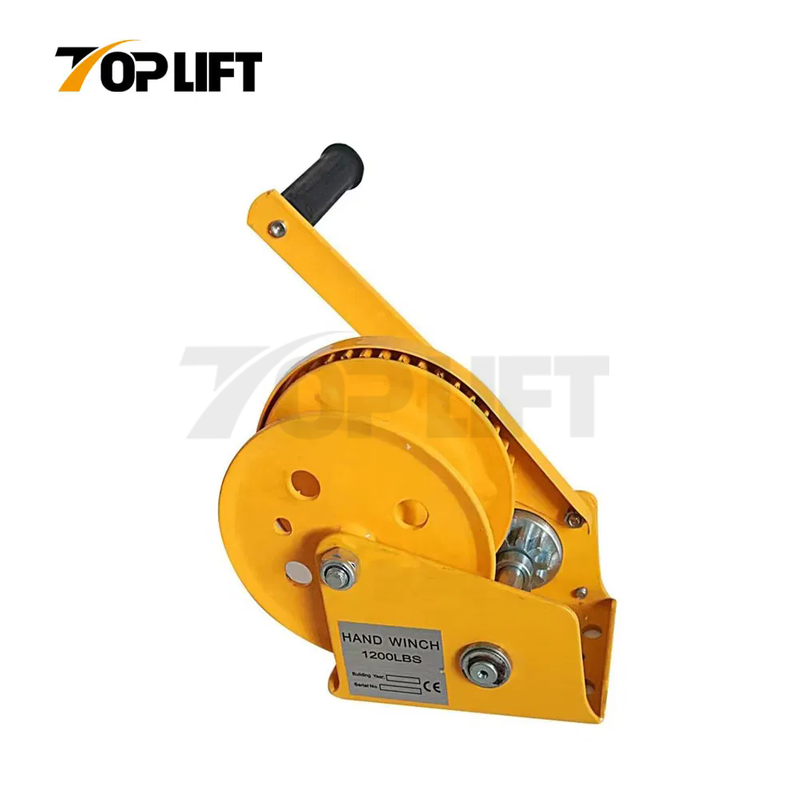

TP-LIFTING MC Manual Winch
WLL.: 1200-2600 LBS
Basic Info.
Model Type. | MC | Standard | National Standards | |
Transport Package | Carton | Specification | 1200-2600 LBS | |
Trademark | TOPLIFT or OEM | Origin | China | |
HS Code | 8425399000 |
Features
uWinching housing and rope drum from robust steel plate for high versatility.
uRope drum bush bearing for flawless rope lead-off.
uSpur gear drive for optimal efficiency.
uCompact design.
uEasy and quick mounting onto walls,poles, towers etc.
uAutomatic load pressure brake for safe holding and extremely sensitive lowering of he load.
uUnintentional brake release is prevented even with swinging loads.
uSuitable for operation in ambient temperature of -10°to + 50°.
Specification
Model | Rated Capacity (LBS) | Test Road (KN) | Transmission Ratio | Hand Operated Strength (N) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | R (mm) | Net Weight (kg) |
MC1200 | 1200 | 8 | 4.2:1 | 180 | Ø48 | Ø134 | 51 | 157 | Ø27 | 273 | 110 | 156 | 184 | 208 | 3.7 |
MC1800 | 1800 | 12 | 5:01 | 190 | Ø60 | Ø180 | 60 | 190 | Ø27 | 288 | 110 | 203 | 246 | 319 | 8.1 |
MC2600 | 2600 | 17.5 | 10:01 | 190 | Ø75 | Ø180 | 63 | 209 | Ø27 | 307 | 110 | 216 | 294 | 319 | 10.3 |
Product Details
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
