PNW
| Quantity: | |
|---|---|

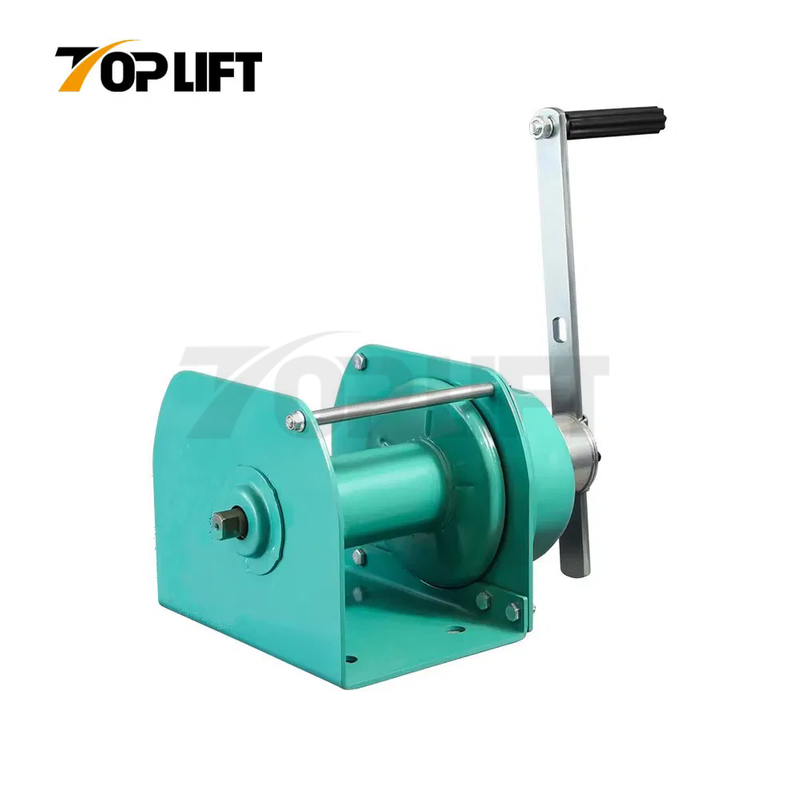

TP-LIFTING PNW Manual Winch
WLL: 100-3000 KGS
Basic Info.
Model Type | PNW | Transport Package | in Pallet | |
Specification | 100-3000 KGS | Trademark | TOPLIFT/OEM | |
Origin | China | HS Code | 8425399000 |
Application
As a new model of manual winch, PNW type manual hand winch is more convenient in use：
lApplied for cross-country vehicle,agriculture vehicle.
lApplied for self-protection and pulling of vehicles and boats.
lUsed for saving in snowfield,marshland,desert,sea beach,muddy patch and other adverse circumstances.
lOperated for cleaning away obstacles ,pulling mater and installation.
lUsed in mine, environment protection, forestry transportation, fire fighting and other open field.
Features
lAdopting lever handle,either may shake operation along the whole circle,or may swing operation at any angle in the any position of circle.It has unique advantage in the narrow space.
lThe gear box and braking mechanism are designed with sealed structure to avoid foreign matter entering the gear box and braking mechanism , and affect the normal operation.
lThe braking material is made of environmental material an is more suitable for the normal operation.
lThe new brake pawls designed for more better ensuing the stability of braking.
lThe handle is adopted free structure to adjust the length for handle freely.
lThe ratchet is big enough to contain more wire rope and more suitable for the operation in deep well and drawing or long distance.
Specification
Model | Capacity (kg) | Sate Working Load (kg) | Adopted Wire Rope Dia×Length (mm×m) | Speed Ratio | The Max Length of Link-Pole Action (mm) | Min Force of Hand Turn | A | B | C | D | E | F | G | H | I | J | Net Weight (kg) |
PNW-100KG | 100 | 100 | Ø5.0×30 | 1.225 | 1:1 | 240 | 115 | Ø48 | Ø110 | 116 | 80 | Ø11 | 402 | 147 | 90 | 160 | 6.9 |
PNW-300KG | 300 | 300 | Ø6.3×30 | 3.675 | 2.88:1 | 350 | 110 | Ø60 | Ø125 | 150 | 100 | Ø15 | 403 | 174 | 130 | 220 | 11.8 |
PNW-500KG | 500 | 500 | Ø6.3×40 | 6.125 | 4.33:1 | 350 | 120 | Ø60 | Ø140 | 150 | 100 | Ø15 | 403 | 182 | 130 | 245 | 14.4 |
PNW-1000KG | 1000 | 1000 | Ø8.0×40 | 12.25 | 12.19:1 | 350 | 120 | Ø76 | Ø175 | 154 | 110 | Ø18 | 443 | 214 | 170 | 266 | 19.7 |
PNW-2000KG | 2000 | 2000 | Ø9.0×40 | 24.5 | 22.68:1 | 350 | 130 | Ø90 | Ø190 | 195 | 155 | Ø18 | 490 | 230 | 170 | 300 | 25.1 |
PNW-3000KG | 3000 | 3000 | Ø12.5×40 | 36.75 | 29.16:1 | 350 | 180 | Ø100 | Ø230 | 205 | 155 | Ø18 | 549 | 296 | 170 | 365 | 44.3 |
Product Details
Packing
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
