TP-JW
| Quantity: | |
|---|---|
Features

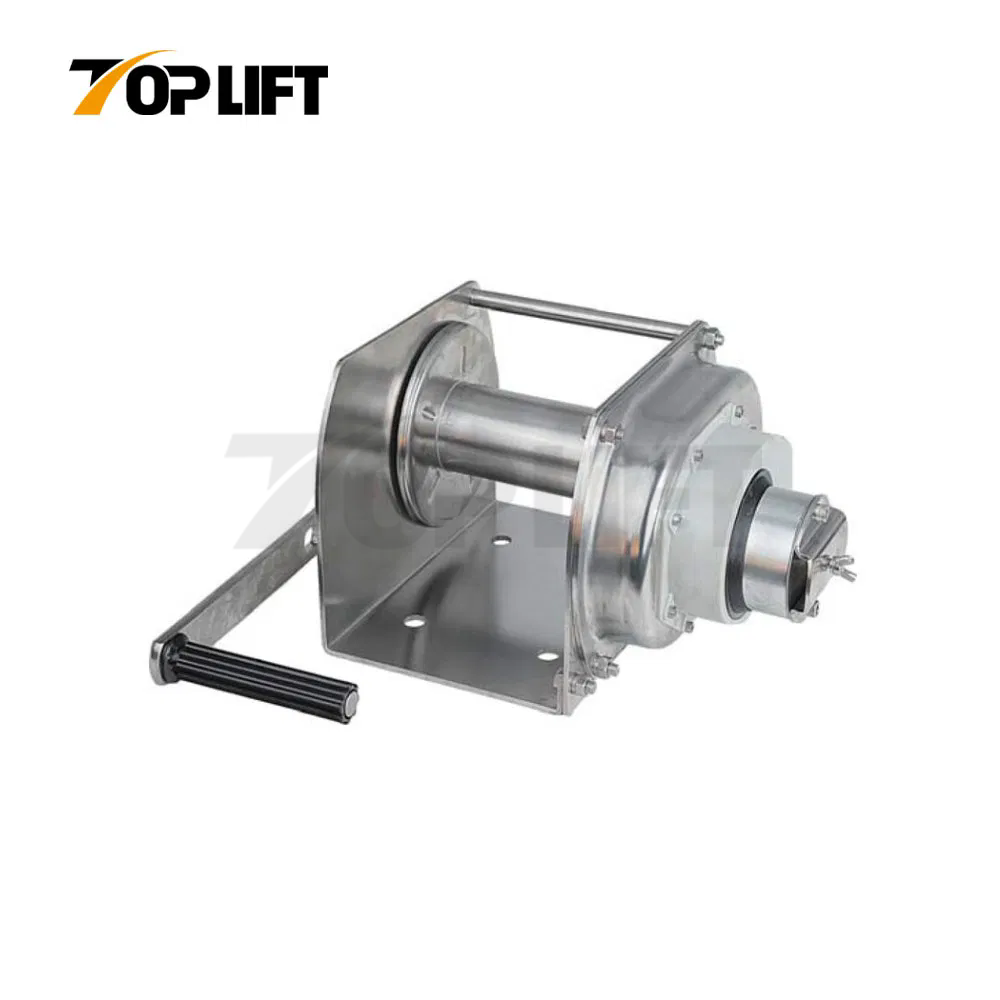

JW type manual winch has WLL of 0.5T and 1T.
Automatic load pressure brake for safe holding and extremely sensitive lowering of he load.
This product is suitable for places with high cleanliness requirements, such as pharmaceutical processing, food processing, sewage treatment, marine engineering and other industries.
The winch is made of 304 stainless steel, except the hard-hearted gear parts, bearings, handle sleeves and other parts, with a beautiful appearance.
Our Advantage
The key gear parts are all specially heat treated, all bearing design, sealed gear box, not easy to rust. Sturdy and durable, the whole machine has good rust removal and corrosion resistance effect.
The logo we can use TOP LIFT, also we accept you to customize your own logo.
| Model | JW-500 | JW-1000 | |
| WLL(T) | 0.5 | 1 | |
| Tested Load | 6.125 | 12.25 | |
| Applicable Wire Rope Dia(mm)*Length*(m) | 6.0*40 | 8*40 | |
| Speed Ratio | 4.33:1 | 12.18:1 | |
| 350Max. Length of Rocker Action(mm) | 350 | 350 | |
| Min. Hand Power | 120 | 120 | |
| Size | A | 60 | 76 |
| B | 140 | 175 | |
| C | 150 | 154 | |
| D | 100 | 110 | |
| E | 15 | 18 | |
| F | 403 | 443 | |
| H | 182 | 214 | |
| I | 130 | 170 | |
| J | 245 | 266 | |
| M | 178 | 191 | |
| N | 57.5 | 48 | |
| P | 39 | 38.5 | |
| Weight(kg) | 14.4 | 19.7 | |
DESCRIPTION
PRODUCT DETAILS
CONCRETE IMAGE

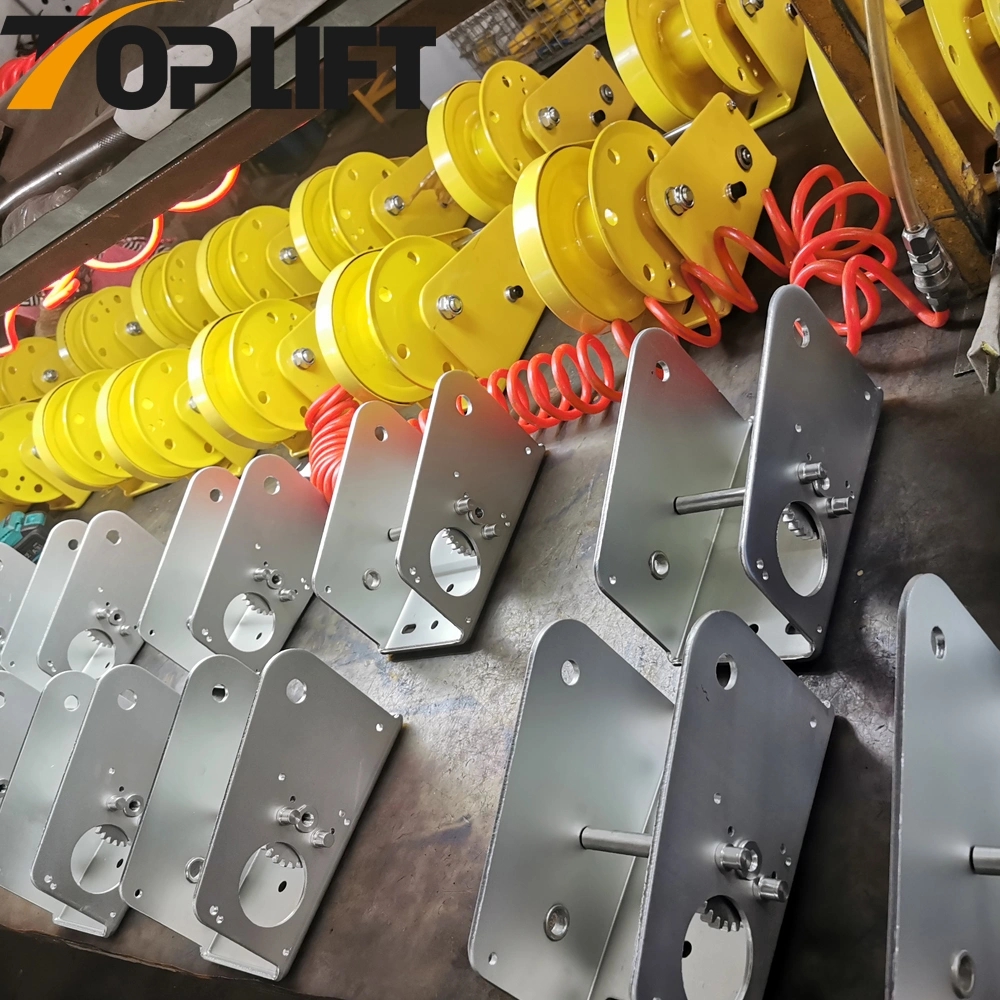

FACTORY
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
