TP-RS-04
| Quantity: | |
|---|---|

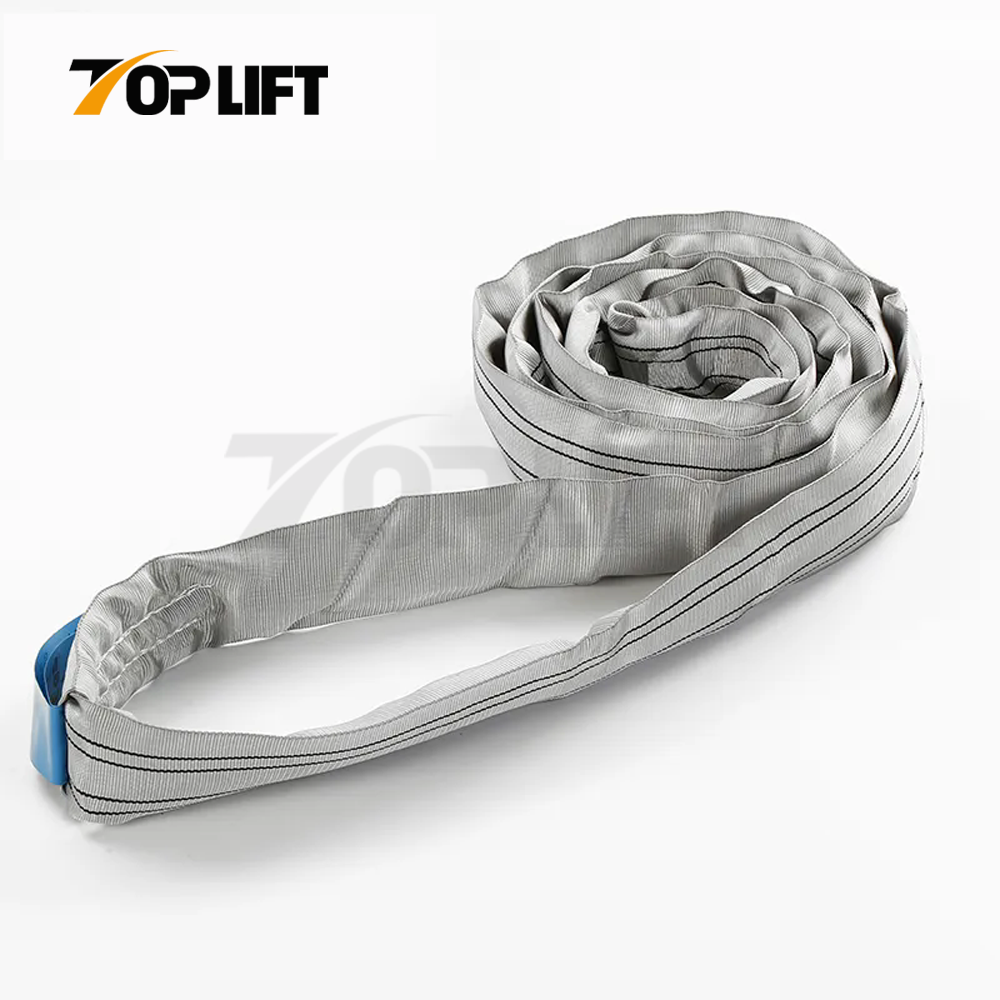

TOPLIFT Round Slings are constructed from a continuous loop of 100% polyester fiber and offer the user the ultimate in lifting security and rigging ease.
Each Round Sling is covered with a polyester woven sleeve to protect the load-bearing fibers from damage. Because the load-bearing fibers never come in contact with the load, they are protected from cuts, abrasions and ultraviolet degradation. Round Slings are suitable for use with all three hitches: vertical, choker and basket.
FEATURES:
1)Strong. Round Slings made from 100% high tenacity polyester yarn, are capable of lifting extremely heavy loads.
2)Lightweight, thus offering easy handling and storage, ideal to carry around work sites.
3)Versatile. Capable of various lifting techniques including vertical, basket and choker technique.
4)Protection against hand injuries
5)Protection against cargo surface damage
6)Highly flexible and adaptable to given shapes, providing a strong grip on loads
7)Provides a tighter choke with an easier release
8)Cover abrasion will not reduce capacity, but it’s time to remove slings from service when the outer sleeve is damaged and/or the yarn is exposed.
TECHNICAL PARAMETER:
Standard | According to Machinery Directive 2006/42/EC and EN 1492-2:2000+A1:2008 |
Material | 100% high tenacity polyester |
Sleeve Color | According to EN standard (Purple/Green/Yellow/Grey/Red/Brown/Blue/Orange) or as required |
Safety Factor | 6:1/7:1 are both available, For different markets |
W.L.L.(Working Load Limit) | From 1T to 50T |
EWL (Effective Working Length) | From 1m to 12m up, can be customized as require |
Circumference | From 2m to 24m up, can be customized as require |
Packing | each piece packed in PE shrink film, in Carton, on Pallet |
Remarks | WLL & Length data can be printed |
| ARTNO | W.L.L (kg) | WIDTH (mm) | COLOR | WLLin kg at different modes | ||||
| Straight lift | Basket lift | 7°-45° | Chokerhitch | 45°-60° | ||||
| TPRS-01 | 1000 | 45 | Violet | 1000 | 2000 | 1400 | 800 | 1000 |
| TP-RS-02 | 2000 | 50 | Green | 2000 | 4000 | 2800 | 1600 | 2000 |
| TP-RS-03 | 3000 | 60 | Yellow | 3000 | 6000 | 4200 | 2400 | 3000 |
| TP-RS-04 | 4000 | 75 | Grey | 4000 | 8000 | 5600 | 3200 | 4000 |
| TP-RS-05 | 5000 | 85 | Red | 5000 | 10000 | 7000 | 4000 | 5000 |
| TP-RS-06 | 6000 | 90 | Brown | 6000 | 12000 | 8400 | 4800 | 6000 |
| TP-RS-08 | 8000 | 105 | Blue | 8000 | 16000 | 11200 | 6400 | 8000 |
| TP-RS-10 | 10000 | 115 | Orange | 10000 | 20000 | 14000 | 8000 | 10000 |
| TP-RS-12 | 12000 | 120 | Orange | 12000 | 24000 | 16800 | 9600 | 12000 |
| TP-RS-15 | 15000 | 130 | Orange | 15000 | 30000 | 21000 | 12000 | 15000 |
| TP-RS-20 | 20000 | 130 | Orange | 20000 | 40000 | 28000 | 16000 | 20000 |
| TP-RS-25 | 25000 | 175 | Orange | 25000 | 50000 | 35000 | 20000 | 25000 |
| TP-RS-30 | 30000 | 175 | Orange | 30000 | 60000 | 42000 | 24000 | 30000 |
| TP-RS-40 | 40000 | 220 | Orange | 40000 | 80000 | 56000 | 32000 | 40000 |
| TP-RS-50 | 50000 | 220 | Orange | 50000 | 100000 | 70000 | 40000 | 50000 |
2.Wears evenly along the length
3.Load bearing fiber protected from the load,giving greater resistance to wear
TOPLIFT Round Slings are constructed from a continuous loop of 100% polyester fiber and offer the user the ultimate in lifting security and rigging ease.
Each Round Sling is covered with a polyester woven sleeve to protect the load-bearing fibers from damage. Because the load-bearing fibers never come in contact with the load, they are protected from cuts, abrasions and ultraviolet degradation. Round Slings are suitable for use with all three hitches: vertical, choker and basket.
FEATURES:
1)Strong. Round Slings made from 100% high tenacity polyester yarn, are capable of lifting extremely heavy loads.
2)Lightweight, thus offering easy handling and storage, ideal to carry around work sites.
3)Versatile. Capable of various lifting techniques including vertical, basket and choker technique.
4)Protection against hand injuries
5)Protection against cargo surface damage
6)Highly flexible and adaptable to given shapes, providing a strong grip on loads
7)Provides a tighter choke with an easier release
8)Cover abrasion will not reduce capacity, but it’s time to remove slings from service when the outer sleeve is damaged and/or the yarn is exposed.
TECHNICAL PARAMETER:
Standard | According to Machinery Directive 2006/42/EC and EN 1492-2:2000+A1:2008 |
Material | 100% high tenacity polyester |
Sleeve Color | According to EN standard (Purple/Green/Yellow/Grey/Red/Brown/Blue/Orange) or as required |
Safety Factor | 6:1/7:1 are both available, For different markets |
W.L.L.(Working Load Limit) | From 1T to 50T |
EWL (Effective Working Length) | From 1m to 12m up, can be customized as require |
Circumference | From 2m to 24m up, can be customized as require |
Packing | each piece packed in PE shrink film, in Carton, on Pallet |
Remarks | WLL & Length data can be printed |
| ARTNO | W.L.L (kg) | WIDTH (mm) | COLOR | WLLin kg at different modes | ||||
| Straight lift | Basket lift | 7°-45° | Chokerhitch | 45°-60° | ||||
| TPRS-01 | 1000 | 45 | Violet | 1000 | 2000 | 1400 | 800 | 1000 |
| TP-RS-02 | 2000 | 50 | Green | 2000 | 4000 | 2800 | 1600 | 2000 |
| TP-RS-03 | 3000 | 60 | Yellow | 3000 | 6000 | 4200 | 2400 | 3000 |
| TP-RS-04 | 4000 | 75 | Grey | 4000 | 8000 | 5600 | 3200 | 4000 |
| TP-RS-05 | 5000 | 85 | Red | 5000 | 10000 | 7000 | 4000 | 5000 |
| TP-RS-06 | 6000 | 90 | Brown | 6000 | 12000 | 8400 | 4800 | 6000 |
| TP-RS-08 | 8000 | 105 | Blue | 8000 | 16000 | 11200 | 6400 | 8000 |
| TP-RS-10 | 10000 | 115 | Orange | 10000 | 20000 | 14000 | 8000 | 10000 |
| TP-RS-12 | 12000 | 120 | Orange | 12000 | 24000 | 16800 | 9600 | 12000 |
| TP-RS-15 | 15000 | 130 | Orange | 15000 | 30000 | 21000 | 12000 | 15000 |
| TP-RS-20 | 20000 | 130 | Orange | 20000 | 40000 | 28000 | 16000 | 20000 |
| TP-RS-25 | 25000 | 175 | Orange | 25000 | 50000 | 35000 | 20000 | 25000 |
| TP-RS-30 | 30000 | 175 | Orange | 30000 | 60000 | 42000 | 24000 | 30000 |
| TP-RS-40 | 40000 | 220 | Orange | 40000 | 80000 | 56000 | 32000 | 40000 |
| TP-RS-50 | 50000 | 220 | Orange | 50000 | 100000 | 70000 | 40000 | 50000 |
2.Wears evenly along the length
3.Load bearing fiber protected from the load,giving greater resistance to wear
