TP-RS-03
| Quantity: | |
|---|---|

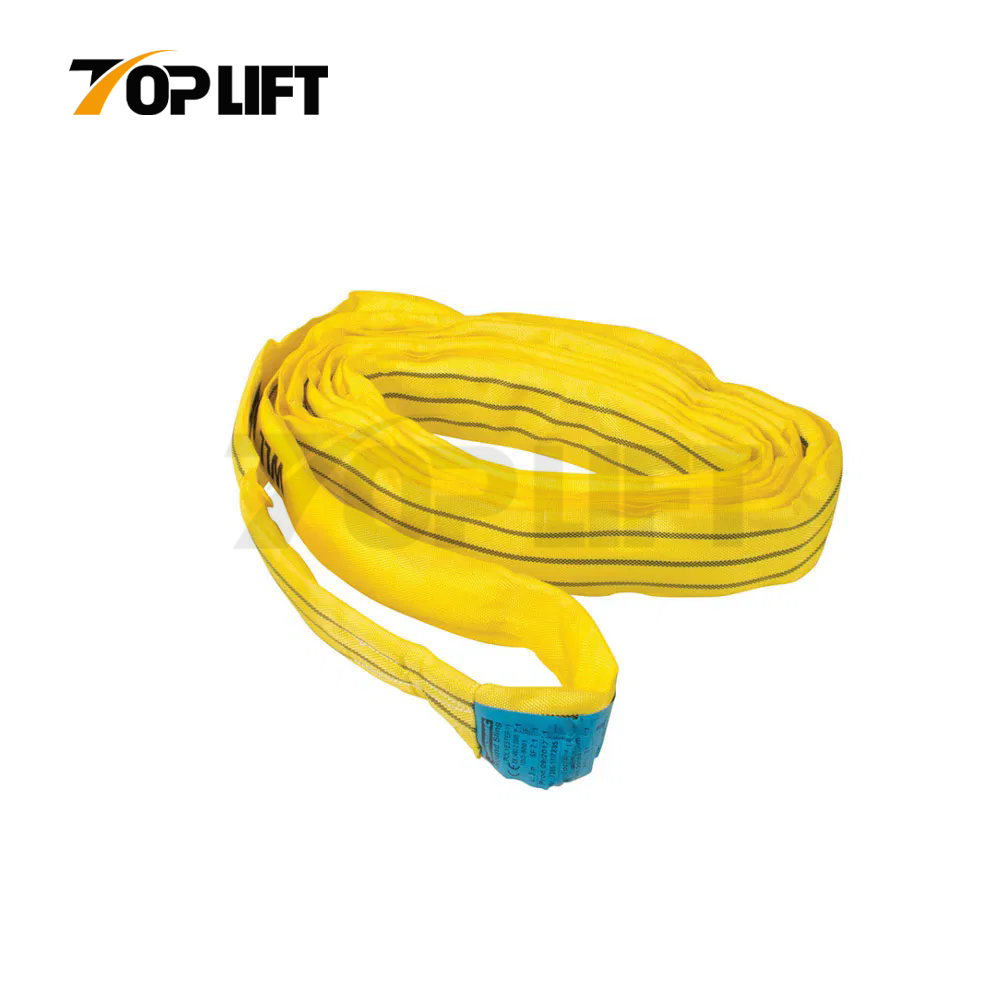

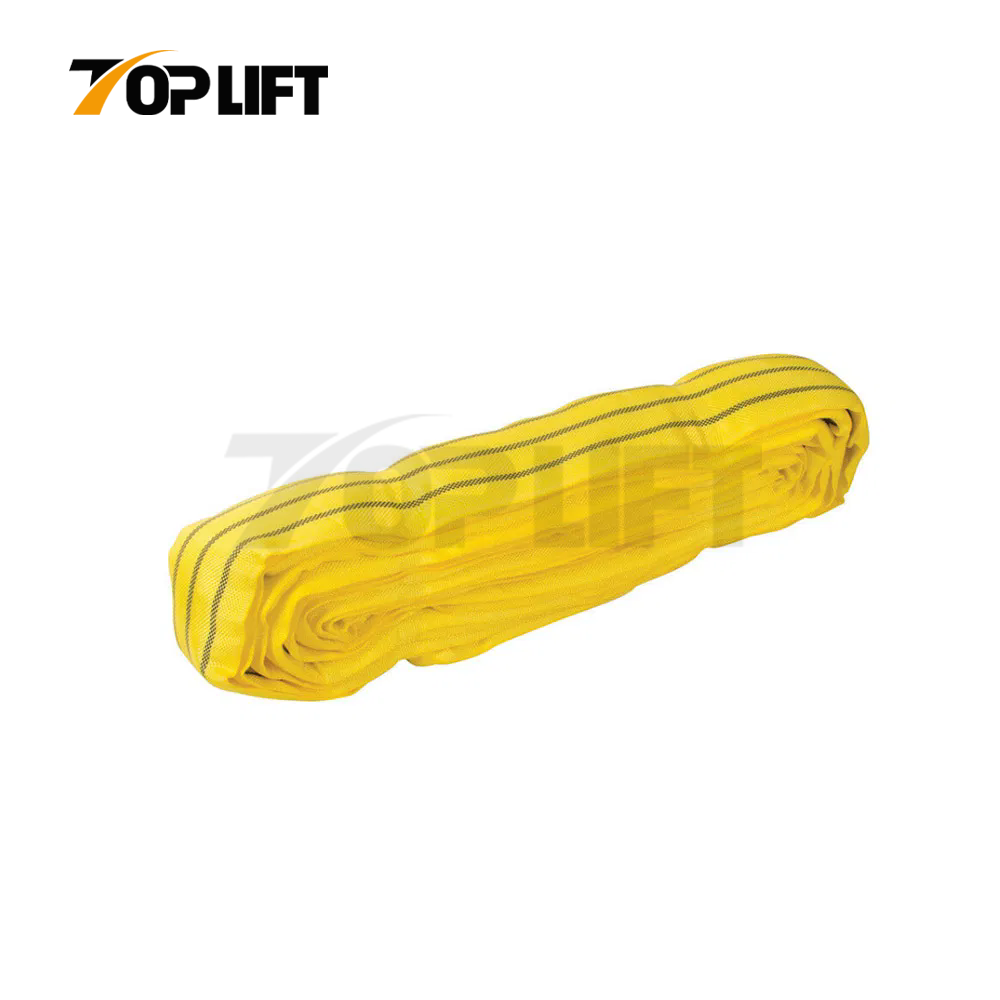

High Strength Polyester Construction: Made from 100% high-tenacity polyester yarn, the round sling can safely lift heavy loads ranging from 1T to 50T with exceptional durability.
Protective Polyester Woven Sleeve: Each sling is covered with a protective woven sleeve that shields load-bearing fibers from cuts, abrasions, and UV degradation, ensuring longer service life.
Versatile Lifting Options: Suitable for all three lifting techniques—vertical, basket, and choker—making it adaptable to various lifting requirements in industrial environments.
Prevents Hand and Cargo Damage: Designed to protect workers from hand injuries and to prevent damage to the cargo surface, ensuring safer and more efficient handling.
Flexible and Easy to Handle: Lightweight and flexible, these round slings provide a strong grip and tight choke on loads, offering easy handling, storage, and a secure lifting operation.
TECHNICAL PARAMETER:
Standard | According to Machinery Directive 2006/42/EC and EN 1492-2:2000+A1:2008 |
Material | 100% high tenacity polyester |
Sleeve Color | According to EN standard (Purple/Green/Yellow/Grey/Red/Brown/Blue/Orange) or as required |
Safety Factor | 6:1/7:1 are both available, For different markets |
W.L.L.(Working Load Limit) | From 1T to 50T |
EWL (Effective Working Length) | From 1m to 12m up, can be customized as require |
Circumference | From 2m to 24m up, can be customized as require |
Packing | each piece packed in PE shrink film, in Carton, on Pallet |
Remarks | WLL & Length data can be printed |
| ARTNO | W.L.L (kg) | WIDTH (mm) | COLOR | WLLin kg at different modes | ||||
| Straight lift | Basket lift | 7°-45° | Chokerhitch | 45°-60° | ||||
| TPRS-01 | 1000 | 45 | Violet | 1000 | 2000 | 1400 | 800 | 1000 |
| TP-RS-02 | 2000 | 50 | Green | 2000 | 4000 | 2800 | 1600 | 2000 |
| TP-RS-03 | 3000 | 60 | Yellow | 3000 | 6000 | 4200 | 2400 | 3000 |
| TP-RS-04 | 4000 | 75 | Grey | 4000 | 8000 | 5600 | 3200 | 4000 |
| TP-RS-05 | 5000 | 85 | Red | 5000 | 10000 | 7000 | 4000 | 5000 |
| TP-RS-06 | 6000 | 90 | Brown | 6000 | 12000 | 8400 | 4800 | 6000 |
| TP-RS-08 | 8000 | 105 | Blue | 8000 | 16000 | 11200 | 6400 | 8000 |
| TP-RS-10 | 10000 | 115 | Orange | 10000 | 20000 | 14000 | 8000 | 10000 |
| TP-RS-12 | 12000 | 120 | Orange | 12000 | 24000 | 16800 | 9600 | 12000 |
| TP-RS-15 | 15000 | 130 | Orange | 15000 | 30000 | 21000 | 12000 | 15000 |
| TP-RS-20 | 20000 | 130 | Orange | 20000 | 40000 | 28000 | 16000 | 20000 |
| TP-RS-25 | 25000 | 175 | Orange | 25000 | 50000 | 35000 | 20000 | 25000 |
| TP-RS-30 | 30000 | 175 | Orange | 30000 | 60000 | 42000 | 24000 | 30000 |
| TP-RS-40 | 40000 | 220 | Orange | 40000 | 80000 | 56000 | 32000 | 40000 |
| TP-RS-50 | 50000 | 220 | Orange | 50000 | 100000 | 70000 | 40000 | 50000 |
Product Description：
2. Wears evenly along the length
3. Load bearing fiber protected from the load,giving greater resistance to wear
FAQ:
Q: Do you provide OEM service?
A: Yes, of course. We have professional designers to help your design the brand.
Q: How to get samples to check your quality?
A: After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
Q: What's your quality guarantee?
A: We have different kinds of products which can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
Q: What's the delivery time?
A: The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
