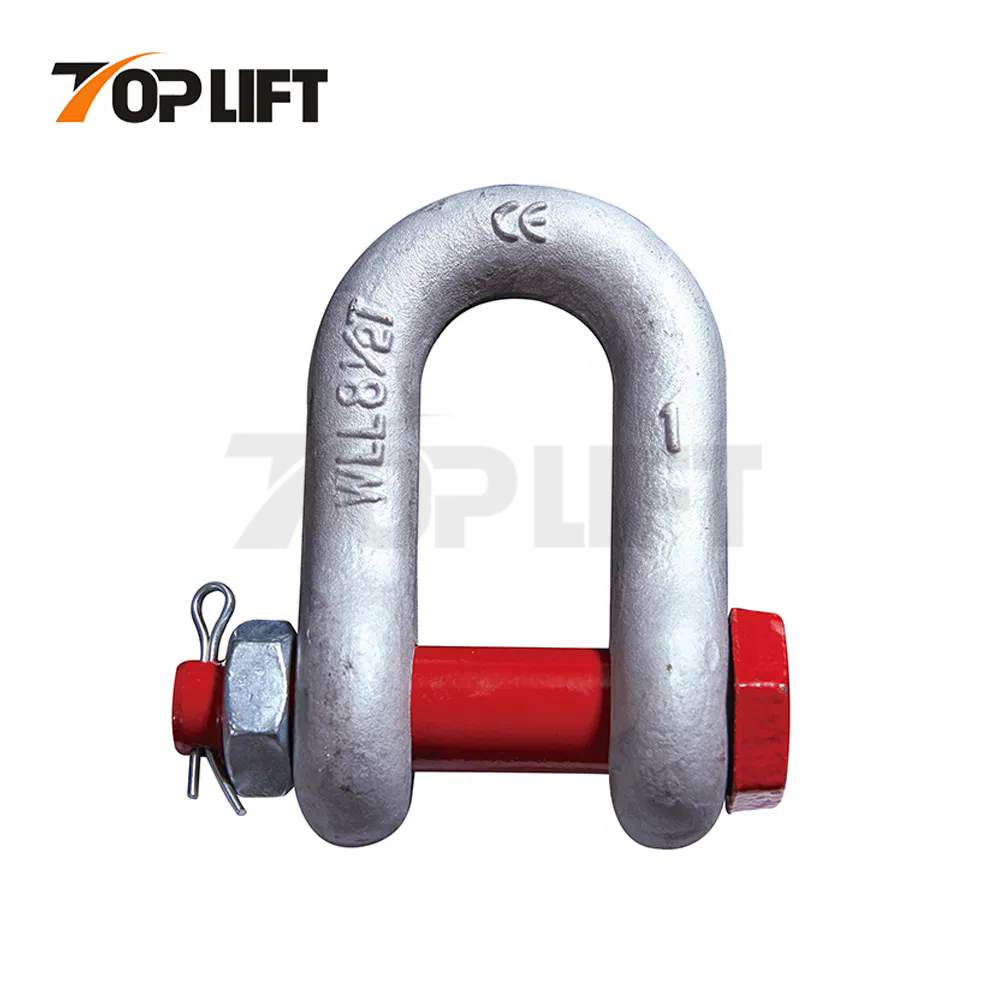

Shackles are made of forged alloy steel with alloy pin. Size and Working Load Limit are permanently shown on each shackle. For bolt type shackles, tighten nut and then use the pin to prevent the nut from falling off.
Features:
Forged, Quenched & Tempered, with alloy pins.
Hot-dip galvanized (G) or self-colored (S).
logo customization is acceptable.
Our advantages
Working Load Limit and Grade 6 permanently shown on every shackle.
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit. (1/2t - 55t).
Approved for use at -40° C (-40 degrees F) to 204° C (400° F).
All 2150 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg at -20°C (-4°F) upon special request.
lt is forged as a whole, which is stronger and more reliable and has stronger fatigue resistance.
There is CE certification standard on each shackle, which is the recognition mark of product quality.
The shackle passes 100% magnaflux crack detection.
Model | W.L.L. | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | L(mm) | Weight(kg/pc) |
TP-M01-3/16 | 0.33T | 9.65 | 6.35 | - | 4.85 | - | - | - |
TP-M01-1/4 | 0.5T | 11.9 | 7.85 | 19.05 | 6.35 | 24.6 | 40.4 | 0.06 |
TP-M01-5/16 | 0.75T | 13.5 | 9.65 | 25.40 | 7.85 | 29.5 | 48.5 | 0.10 |
TP-M01-3/8 | 1T | 16.8 | 11.2 | 30.99 | 9.65 | 35.8 | 58.5 | 0.15 |
TP-M01-7/16 | 1.5T | 19.1 | 12.7 | 36.09 | 11.2 | 41.1 | 67.5 | 0.22 |
TP-M01-1/2 | 2T | 20.6 | 16.0 | 41.04 | 12.7 | 46.0 | 77.0 | 0.34 |
TP-M01-5/8 | 3.25T | 26.9 | 19.1 | 50.80 | 16.0 | 58.5 | 95.5 | 0.67 |
TP-M01-3/4 | 4.75T | 31.8 | 22.4 | 60.45 | 19.1 | 70.0 | 115 | 1.14 |
TP-M01-7/8 | 6.5T | 36.6 | 25.4 | 71.37 | 22.4 | 81.0 | 135 | 1.74 |
TP-M01-1 | 8.5T | 42.9 | 28.7 | 81.03 | 25.4 | 93.5 | 151 | 2.52 |
TP-M01-1-1/8 | 9.5T | 46.0 | 31.8 | 90.93 | 28.7 | 103 | 172 | 3.45 |
TP-M01-1-1/4 | 12T | 51.5 | 35.1 | 100.08 | 31.8 | 115 | 191 | 4.90 |
TP-M01-1-3/8 | 13.5T | 57.0 | 38.1 | 111.25 | 35.1 | 127 | 210 | 6.24 |
TP-M01-1-1/2 | 17T | 60.5 | 41.4 | 122.17 | 38.1 | 137 | 230 | 8.39 |
TP-M01-1-3/4 | 25T | 73.0 | 51.0 | 146.05 | 44.5 | 162 | 279 | 14.2 |
TP-M01-2 | 35T | 82.5 | 57.0 | 171.45 | 51.0 | 184 | 312 | 21.2 |
TP-M01-2-1/2 | 55T | 105 | 70.0 | 203.20 | 66.5 | 238 | 377 | 38.6 |
TP-M01-3 | 85T | 127 | 82.5 | 215.90 | 76.0 | 279 | 429 | 56.0 |
TP-M01-3-1/2 | 120T | 133 | 95.5 | - | 92.0 | - | - | - |
TP-M01-4 | 150T | 140 | 108 | - | 104 | - | - | - |
DETAILS
Packing
Various Situation
FAQ
Q:What can we do?
A:1. Meet all of your lifting equipment &rigging' needs.
2. Service on inspection for lifting equipment and rigging material.
Q:How do you control your quality?
A:1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
Q:What are your advantages compared with others?
A:1.Specializing in the field of lifting equipment and rigging product supply for around 10 years, have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
