G2130
| Quantity: | |
|---|---|

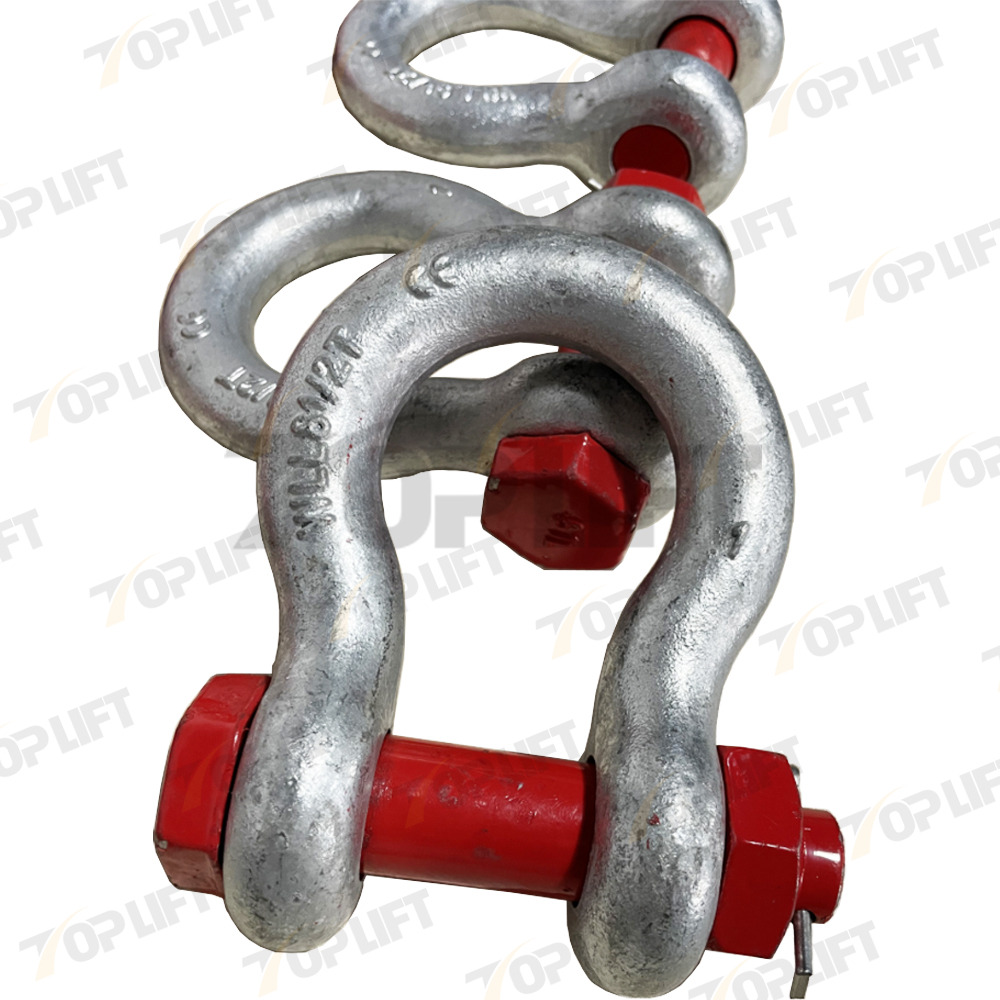

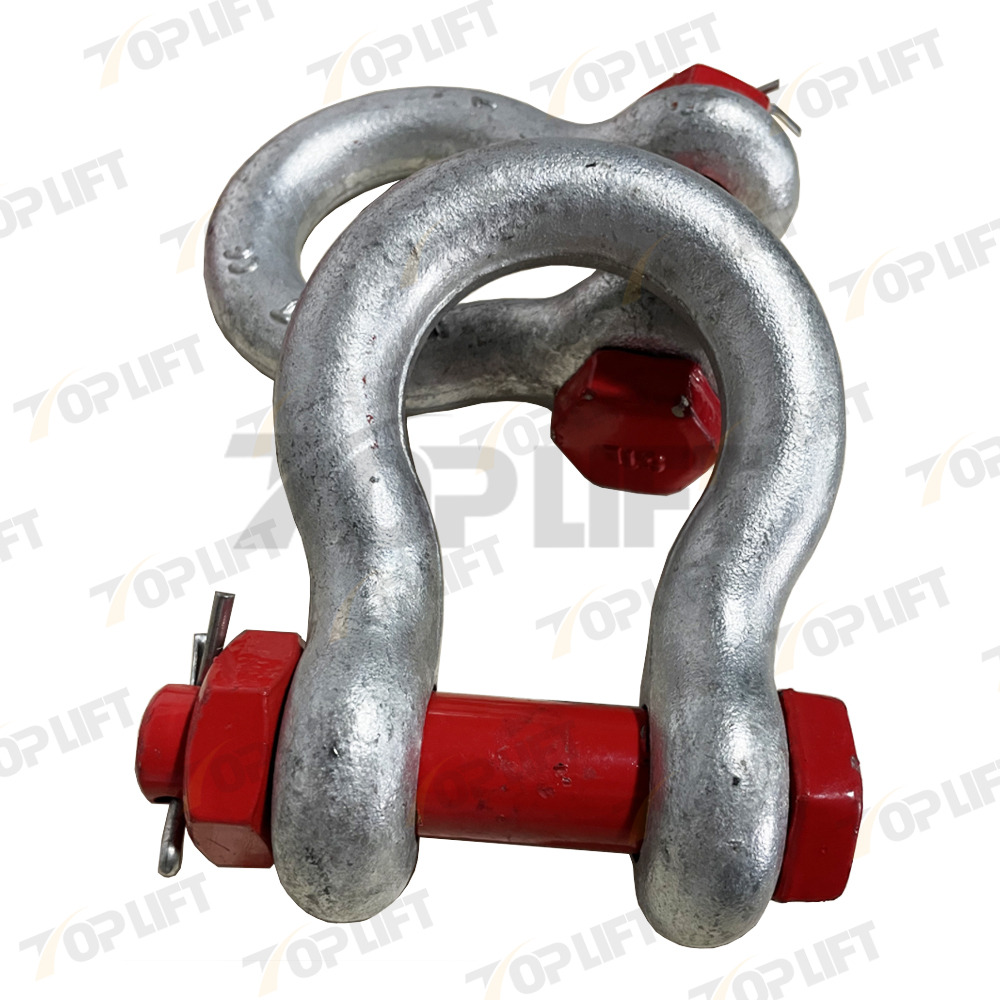

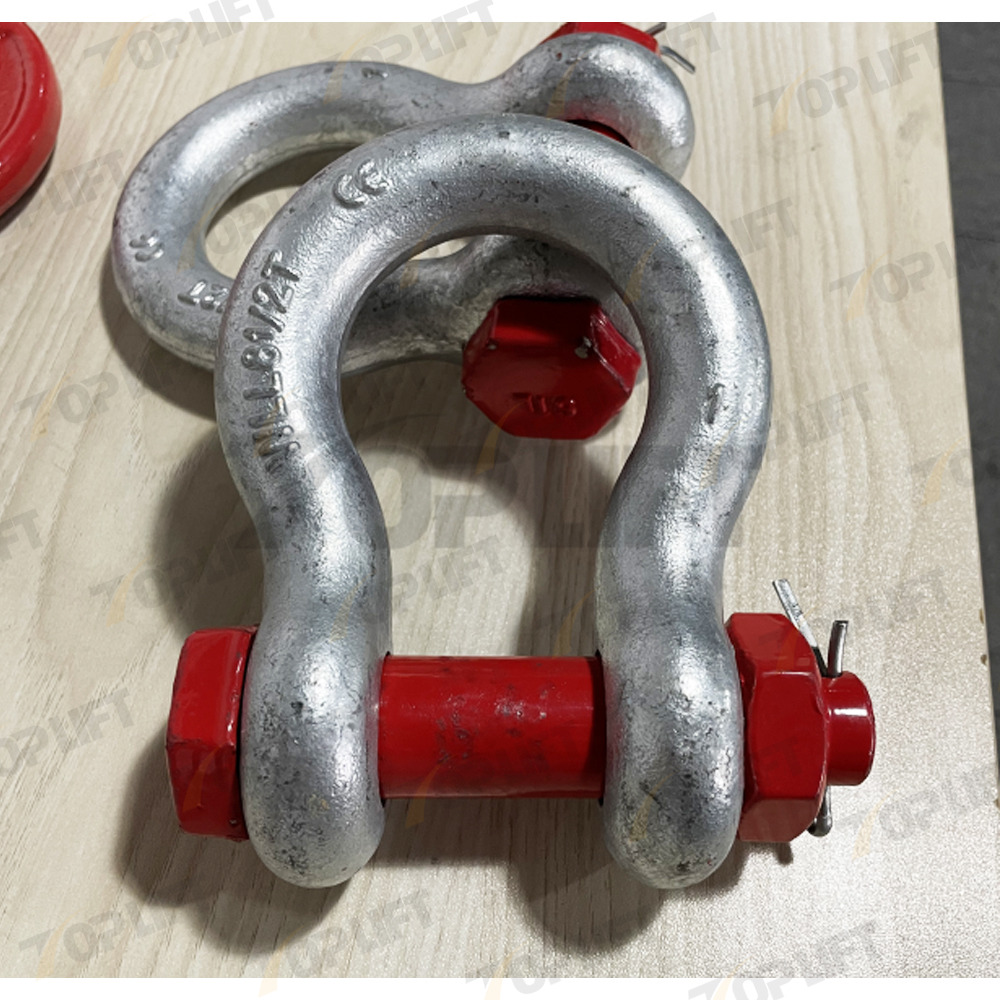

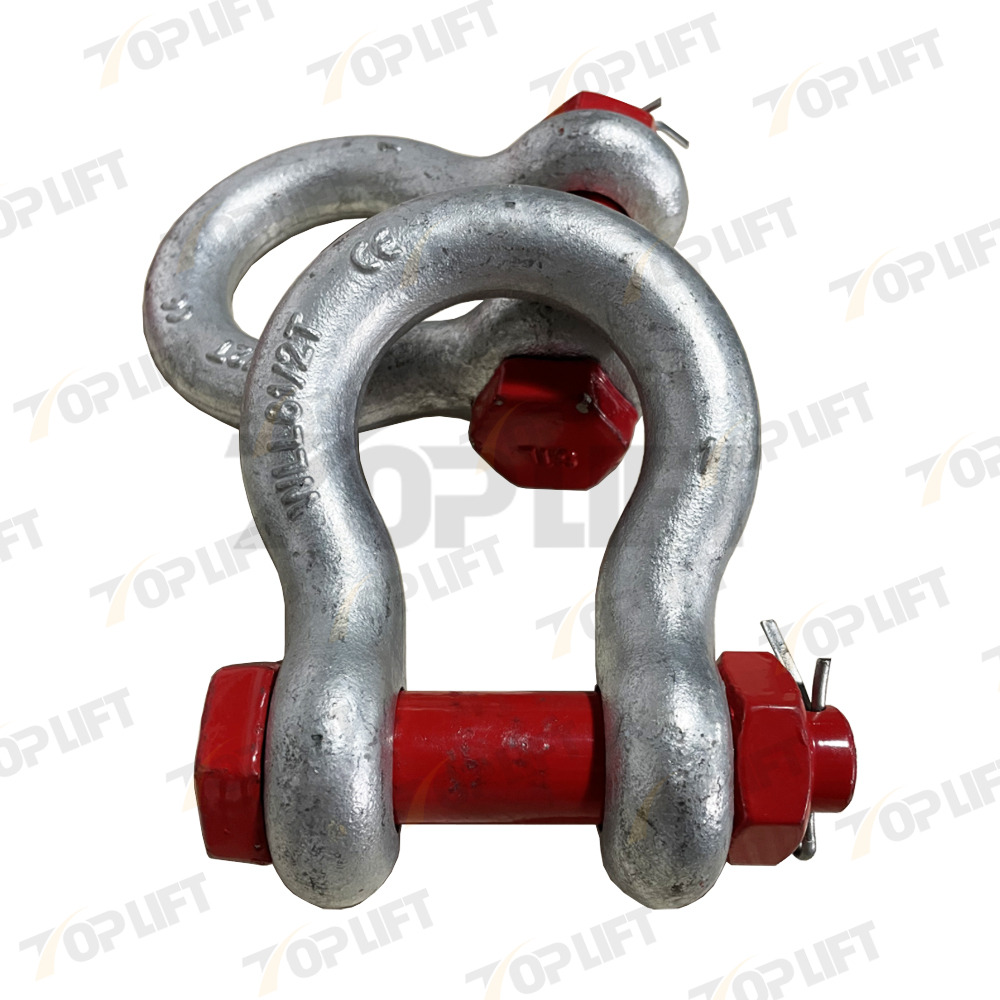

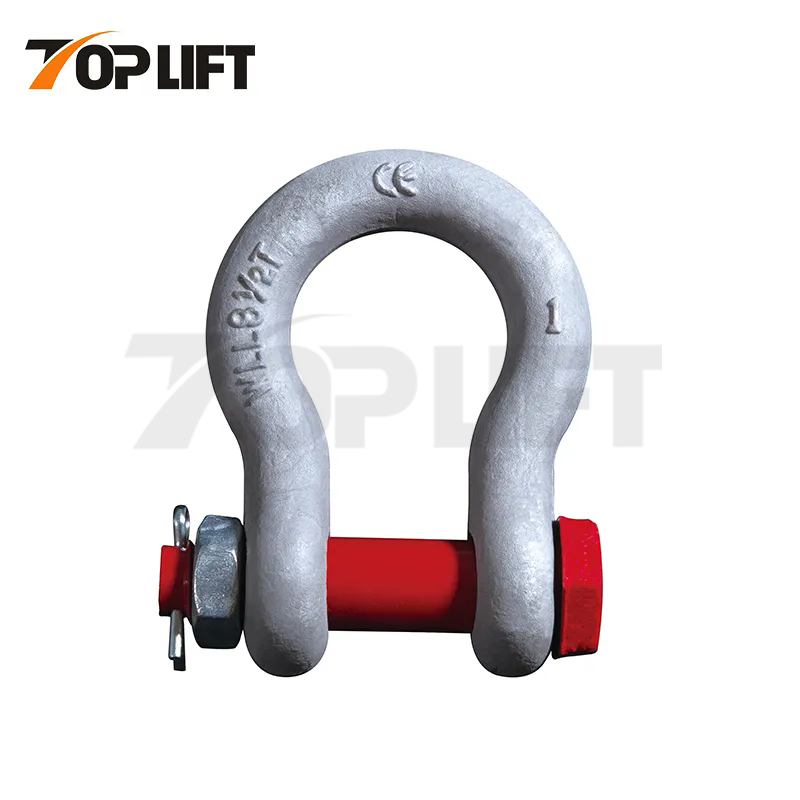

TP-LIFTING G-2130 Galvanized Quality Carbon Steel Bow Shackle Dee Shackles for Mining Heavy Industry Lifting Industrial Applications
Product Information
Model NO. | TP-M03 | Body Material | 45# Carbon Steel | |
Pin Material | Alloy Steel | W.L.L | 0.33-200t | |
Technology | Forged | Specification | 3/16′′ - 4′′ | |
Surface | Electro Galv., Hot-DIP Galv., etc | Transport Package | Gunny Bag & Wooden Pallet | |
Safety Factor | 4:1 or 6:1 | Delivery Time | 30-45 days After Order Confirming | |
Origin | China | HS Code | 73269090 |
uForged super alloy steel with alloy pin - Quenched and Tempered
uSurface Treatment: HDG (safety factor: 6:1)
or Electrogalvaniced (safety factor: 4:1)
uIndividually proof test at 2.5 times Working Load Limit
uFatigue tested at 1.5times Working Load Limit for 20000 cycles
uBreakage test
u100% magnaflux crack detection
uColour of Pin: Red, Yellow...
Specification
Model | W.L.L (T) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | L (mm) | Weight (kg/pc) |
TP-M03-3/16 | 0.33 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 37.3 | 0.03 |
TP-M03-1/4 | 0.5 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 46.7 | 0.05 |
TP-M03-5/16 | 0.75 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 53 | 0.1 |
TP-M03-3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 63 | 0.15 |
TP-M03-7/16 | 1.5 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 74 | 0.22 |
TP-M03-1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 83.5 | 0.36 |
TP-M03-5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 106 | 0.76 |
TP-M03-3/4 | 4.75 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 126 | 1.23 |
TP-M03-7/8 | 6.5 | 36.6 | 25.4 | 84 | 22.4 | 58 | 148 | 1.79 |
TP-M03-1 | 8.5 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 167 | 2.57 |
TP-M03-1-1/8 | 9.5 | 46 | 31.8 | 108 | 28.7 | 74 | 190 | 3.75 |
TP-M03-1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 210 | 5.31 |
TP-M03-1-3/8 | 13.5 | 57 | 38.1 | 133 | 35.1 | 92 | 233 | 7.18 |
TP-M03-1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 254 | 9.43 |
TP-M03-1-3/4 | 25 | 73 | 51 | 178 | 44.5 | 127 | 313 | 15.4 |
TP-M03-2 | 35 | 82.5 | 57 | 197 | 51 | 146 | 348 | 23.7 |
TP-M03-2-1/2 | 55 | 105 | 70 | 267 | 69 | 184 | 453 | 38.9 |
TP-M03-3 | 85 | 127 | 82.5 | 330 | 76 | 200 | 546 | 70 |
TP-M03-3-1/2 | 120 | 133 | 95.5 | 372 | 92 | 229 | 626 | 120 |
TP-M03-4 | 150 | 140 | 108 | 368 | 104 | 254 | 653 | 153 |
Product Detail
1. It is forged as a whole, which is stronger and more reliable and has stronger fatigue resistance.
2. There is CE certification standard on each shackle, which is the recognition mark of product quality.
3. The shackle passes 100% magnaflux crack detection.
Shackle Application
uBolt Type Shackles are used in permanent or long term applications.
uWhen used for side loading applications, the working load limit will reduce.
uTighten nut and always use cotter pin.
Packing
Production
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production;
2.Provide the best price for the same quality product;
3.Timely Delivery with the support of 3000 square meters workshop;
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
