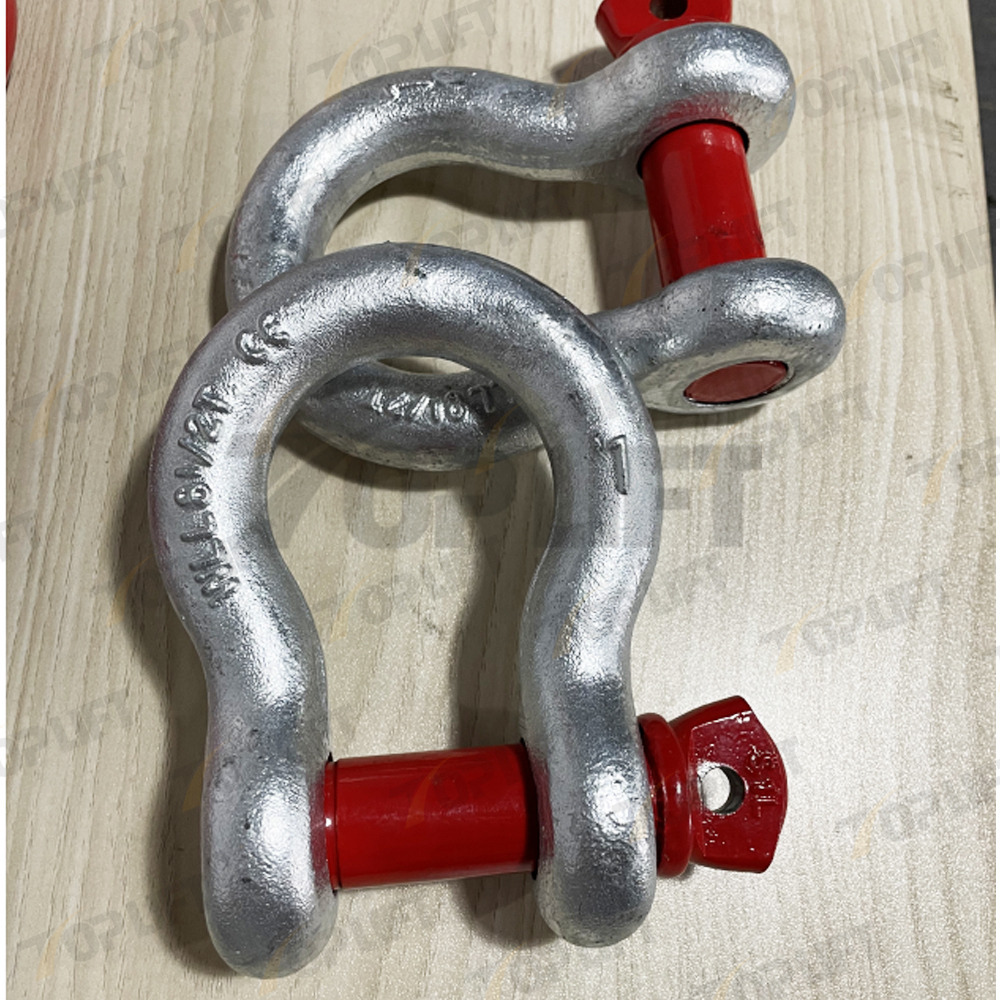

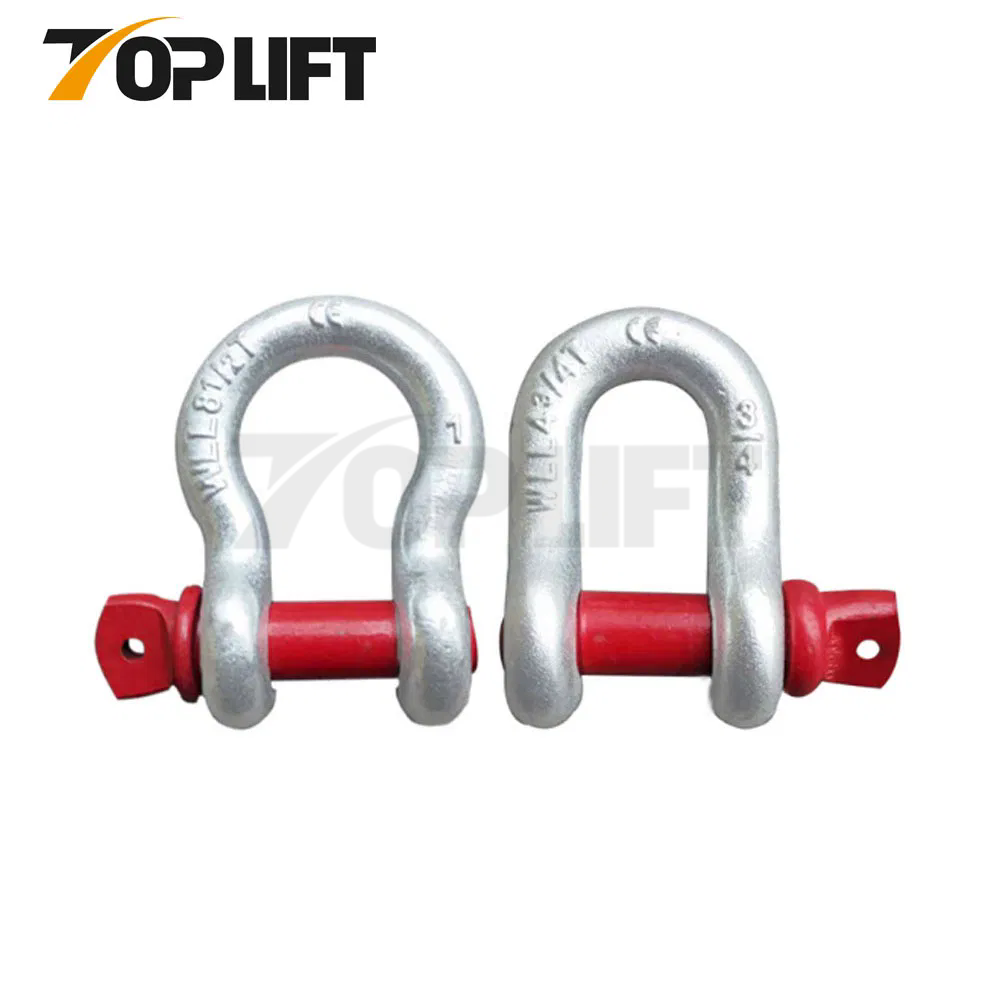

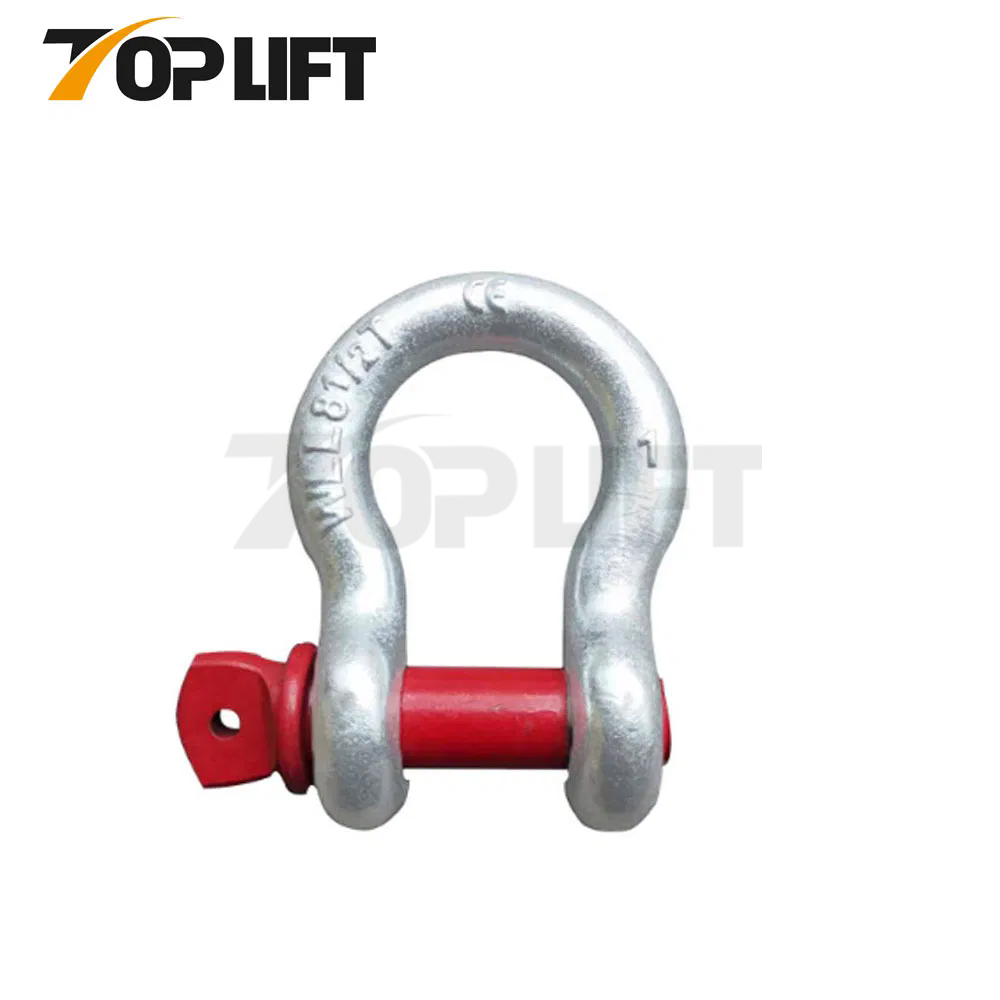

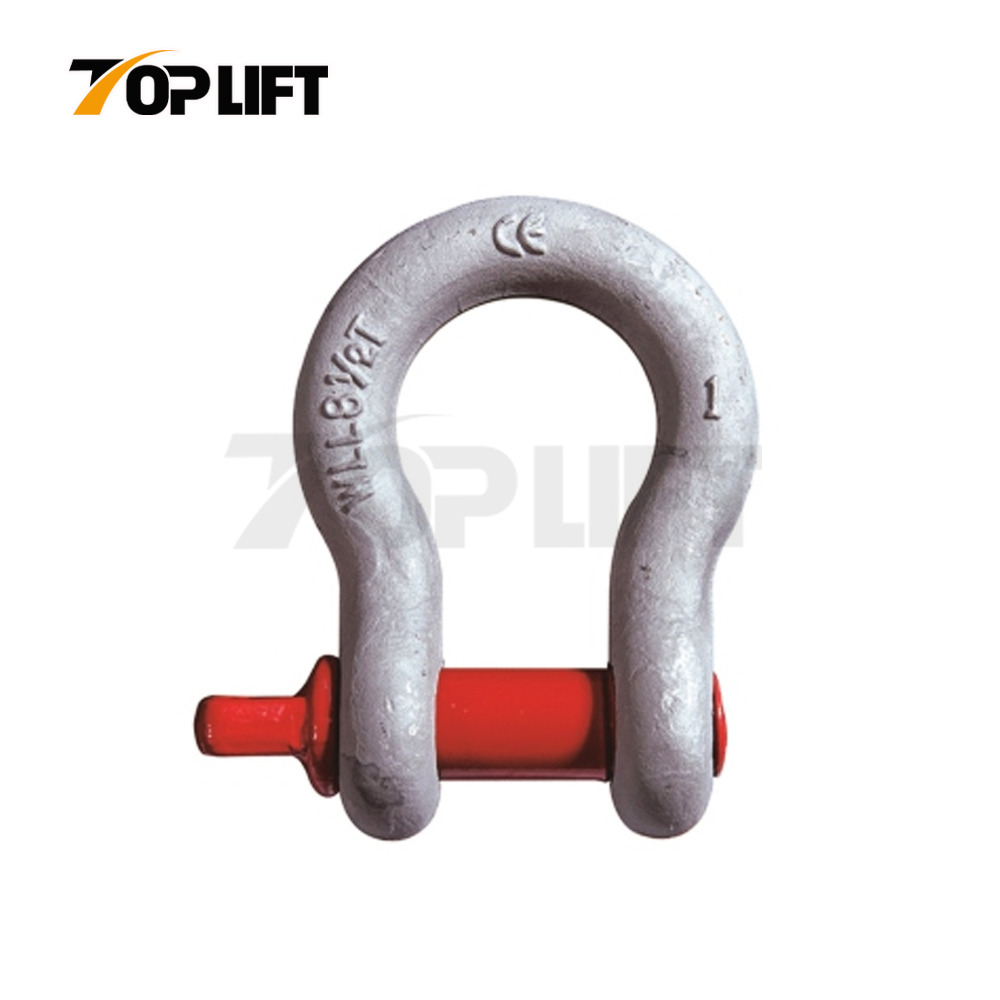

TP-LIFTING G-209 High Strength Screw Pin Bow Shackle
Product Information
Model NO. | TP-M04 | Body Material | 45# Carbon Steel | |
Pin Material | Alloy Steel | W.L.L | 0.33-55t | |
Technology | Forged | Specification | 3/16′′ - 2 1/2′′ | |
Surface | Electro Galv., Hot-DIP Galv., etc | Transport Package | Gunny Bag & Wooden Pallet | |
Safety Factor | 4:1 or 6:1 | Delivery Time | 30-45 days After Order Confirming | |
Origin | China | HS Code | 73269090 |
uForged super alloy steel with alloy pin - Quenched and Tempered
uSurface Treatment: HDG (safety factor: 6:1)
or Electrogalvaniced (safety factor: 4:1)
uIndividually proof test at 2.5 times Working Load Limit
uFatiuge tested at 1.5times Working Load Limit for 20000 cycles
uBreakage test
u100% magnaflux crack detection
uColour of Pin: Red, Yellow...
Specification

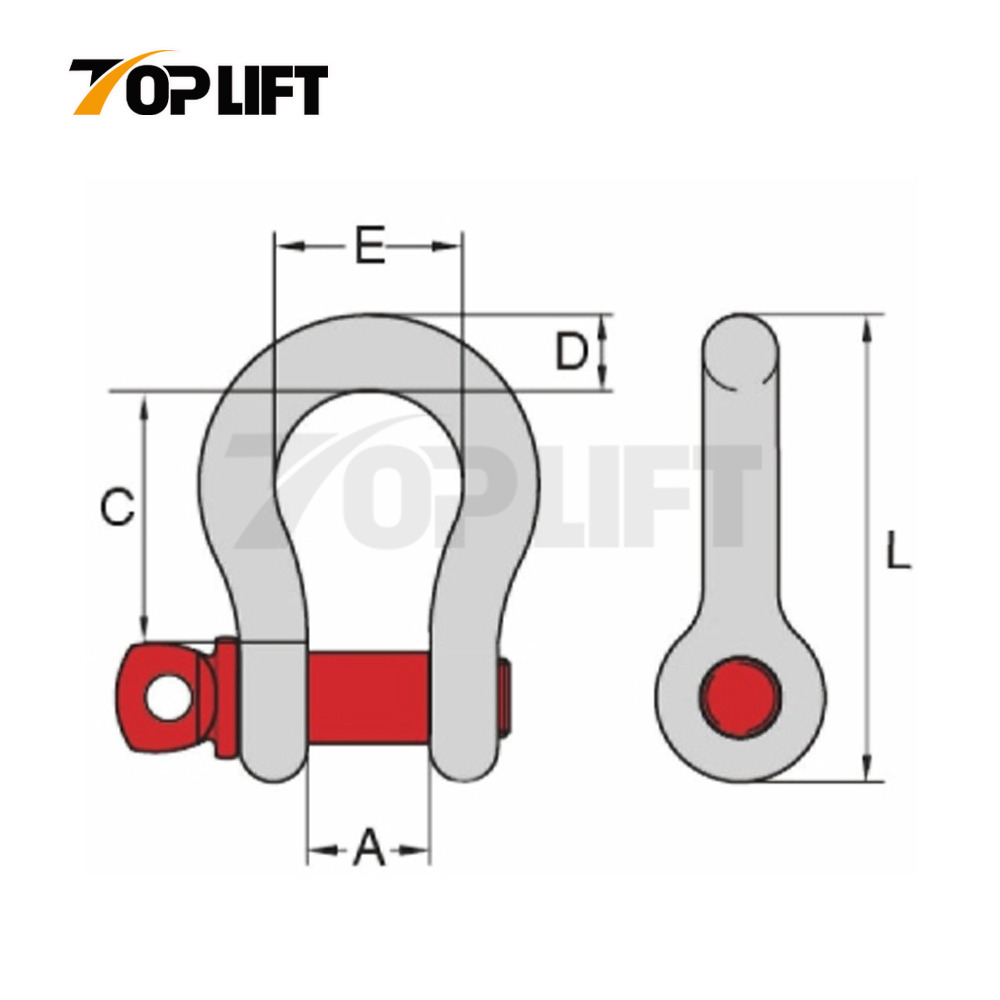

Model | W.L.L (T) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | L (mm) | Weight (kg/pc) |
TP-M04-3/16 | 0.33 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 37.3 | 0.03 |
TP-M04-1/4 | 0.5 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 46.7 | 0.05 |
TP-M04-5/16 | 0.75 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 53 | 0.09 |
TP-M04-3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 63 | 0.14 |
TP-M04-7/16 | 1.5 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 74 | 0.17 |
TP-M04-1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 83.5 | 0.33 |
TP-M04-5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 106 | 0.62 |
TP-M04-3/4 | 4.75 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 126 | 1.07 |
TP-M04-7/8 | 6.5 | 36.6 | 25.4 | 84 | 22.4 | 58 | 148 | 1.64 |
TP-M04-1 | 8.5 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 167 | 2.28 |
TP-M04-1-1/8 | 9.5 | 46 | 31.8 | 108 | 29.5 | 74 | 190 | 3.36 |
TP-M04-1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 210 | 4.31 |
TP-M04-1-3/8 | 13.5 | 57 | 38.1 | 133 | 36.1 | 92 | 233 | 6.14 |
TP-M04-1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 254 | 7.8 |
TP-M04-1-3/4 | 25 | 73 | 51 | 178 | 46.7 | 127 | 313 | 12.6 |
TP-M04-2 | 35 | 82.5 | 57 | 197 | 53 | 146 | 348 | 20.4 |
TP-M04-2-1/2 | 55 | 105 | 70 | 267 | 69 | 184 | 453 | 38.9 |
Product Detail
1. Polished, improve the corrosion and discoloration resistance of alloy steel, and can prevent rust as well.
2. Internal Thread: The inner thread is deep, the force is even and the thread is sharper, not easy to slip during the rotation process.
Shackle Application
uScrew pin shackles are used in permanent or long term applications.
uWhen used for side loading applications, the working load limit will reduce.
uTighten screw pin before each pick.
Packing
Production
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production;
2. Provide the best price for the same quality product;
3. Timely Delivery with the support of 3000 square meters workshop;
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
