The Most Common Rigging Material Used Today

Rigging is the backbone of heavy lifting and material handling across industries such as construction, shipping, entertainment, and manufacturing. Whether you're hoisting steel beams on a skyscraper or setting up a stage for a concert, the choice of rigging material can make the difference between a smooth operation and a potential disaster. In this comprehensive guide, we'll explore the most common rigging materials used today, focusing on their applications, advantages, and the essential rigging hardware that complements them.

Understanding Rigging and Its Importance

Rigging involves the use of equipment to lift, move, or secure heavy loads. The process requires a combination of strength, precision, and safety. Choosing the right materials and hardware is crucial to ensure the integrity of the load and the safety of personnel involved.

Common Rigging Materials

1. Wire Rope

Wire rope has been a staple in rigging for over a century. Made from multiple strands of steel wires twisted together, it offers high tensile strength and durability. Wire ropes are commonly used in cranes, hoists, and elevators due to their ability to handle dynamic loads and resist wear.

Advantages:

• High strength-to-weight ratio

• Resistance to abrasion and corrosion

• Flexibility in various applications

Common Applications:

• Crane cables

• Elevator systems

• Aerial tramways

Complementary Rigging Hardware:

• Shackles: Used to connect slings and hooks to the load.

• Turnbuckles: Allow for tension adjustments in the rigging system.

• Snatch Blocks: Change the direction of the rope and can increase lifting capacity.

2. Synthetic Slings

Synthetic slings, made from materials like nylon, polyester, or ultra-high-molecular-weight polyethylene (UHMWPE), offer flexibility and are lighter than their steel counterparts. They are ideal for lifting delicate or finished equipment due to their pliability.

Advantages:

• Lightweight and easy to handle

• Less likely to damage sensitive loads

• Available in various configurations (round slings, web slings, etc.)

Common Applications:

• Lifting fragile machinery

• Securing loads in transportation

• Stage rigging in entertainment

Complementary Rigging Hardware:

• Lifting Beams & Spreader Bars: Distribute the load evenly across multiple points.

• Safety Hooks: Prevent accidental disengagement during lifting operations.

3. Chains

Chains are robust and durable, making them suitable for heavy-duty lifting tasks. They are less flexible than wire ropes but offer superior strength and resistance to abrasion.

Advantages:

• High load-bearing capacity

• Durable and resistant to wear

• Less prone to stretching compared to ropes

Common Applications:

• Heavy lifting in construction

• Securing loads during transport

• Mining operations

Complementary Rigging Hardware:

• Clevises: Connect chains to other rigging components.

• Hooks: Attach chains to lifting equipment.

• Load Binders: Tighten chains to secure loads.

4. Ultra-High-Molecular-Weight Polyethylene (UHMWPE)

UHMWPE is a synthetic polymer known for its high strength-to-weight ratio and resistance to abrasion. Brands like Dyneema and Spectra are commonly used in rigging applications.

Advantages:

• Extremely strong and lightweight

• Resistant to UV degradation and chemicals

• Floats on water, making it ideal for marine applications

Common Applications:

• Marine mooring lines

• Sailing rigging

• Aerial work platforms

Complementary Rigging Hardware:

• Snatch Blocks: Facilitate changes in direction and mechanical advantage.

• Thimbles: Protect rope from abrasion at connection points.

Rigging Hardware

While materials form the core of rigging systems, the hardware components are equally vital. They ensure the integrity, safety, and efficiency of lifting operations.

Shackles

Shackles are U-shaped devices with a pin or bolt across the opening. They are used to connect slings, hooks, and other rigging components to the load or lifting equipment.

Types:

• Screw-Pin Shackles: Easy to use and secure.

• Bolt-Type Shackles: Provide additional security for critical applications.

• Round-Pin Shackles: Used for applications requiring frequent disassembly.

Turnbuckles

Turnbuckles are devices used to adjust the tension or length of ropes, cables, or tie rods. They consist of two threaded eye bolts screwed into a metal frame. By rotating the frame, both eye bolts are screwed in or out simultaneously, adjusting the tension without twisting the attached cables.

Applications:

• Adjusting tension in guy wires

• Securing structural elements in construction

• Fine-tuning rigging setups in entertainment

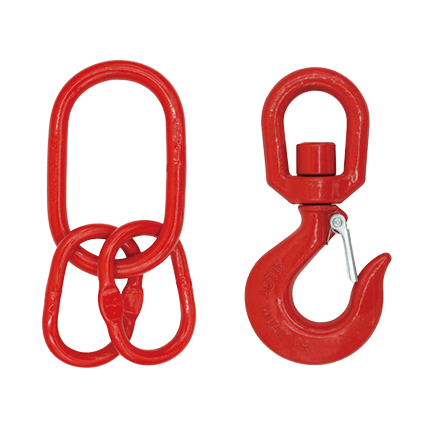

Hooks

Hooks are used to connect slings, chains, or ropes to the load or lifting equipment. They come in various shapes and sizes, including hoist hooks, sling hooks, and rigging hooks. Heavy-duty sling hooks, such as swivel eye stainless steel hooks, can handle large loads, making them valuable in demanding applications.

Types:

• Swivel Eye Hooks: Allow for rotation to prevent twisting.

• Lifting Hooks: Designed for secure attachment to lifting equipment.

• Safety Hooks: Feature latches to prevent accidental disengagement.

Choosing the Right Rigging Material

Selecting the appropriate rigging material depends on several factors:

• Load Weight: Heavier loads may require materials with higher tensile strength.

• Environmental Conditions: Exposure to chemicals, UV light, or moisture can affect material performance.

• Load Sensitivity: Delicate loads may necessitate materials that minimize damage.

• Flexibility Requirements: Some applications require materials that can bend or twist without compromising strength.

By considering these factors, you can choose the most suitable rigging material for your specific application.

Conclusion

Rigging is a critical aspect of heavy lifting operations, and the materials and hardware used play a significant role in ensuring safety and efficiency. Wire ropes, synthetic slings, chains, and UHMWPE are among the most common rigging materials today, each offering unique advantages for different applications. Complementing these materials with the appropriate rigging hardware, such as shackles, turnbuckles, and hooks, further enhances the integrity of the rigging system. By understanding the properties and applications of these materials and hardware, professionals can make informed decisions to optimize their rigging operations.
