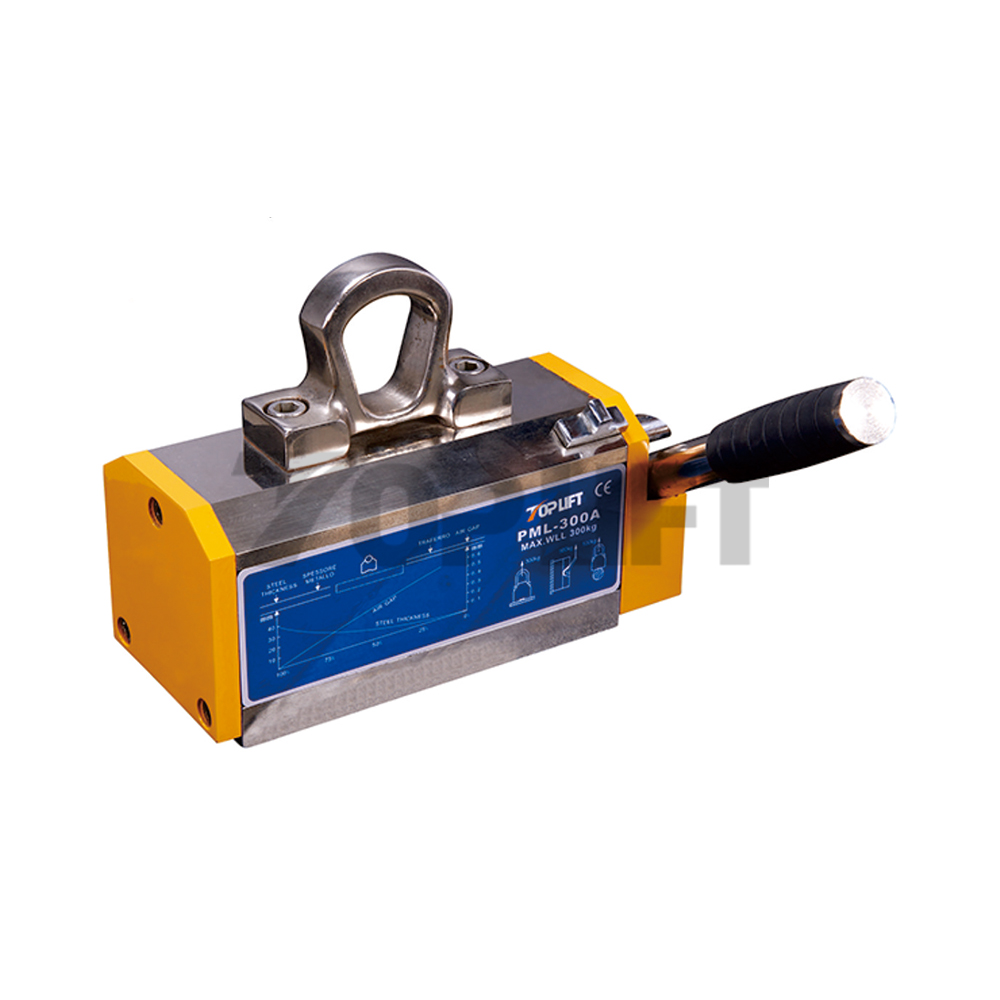

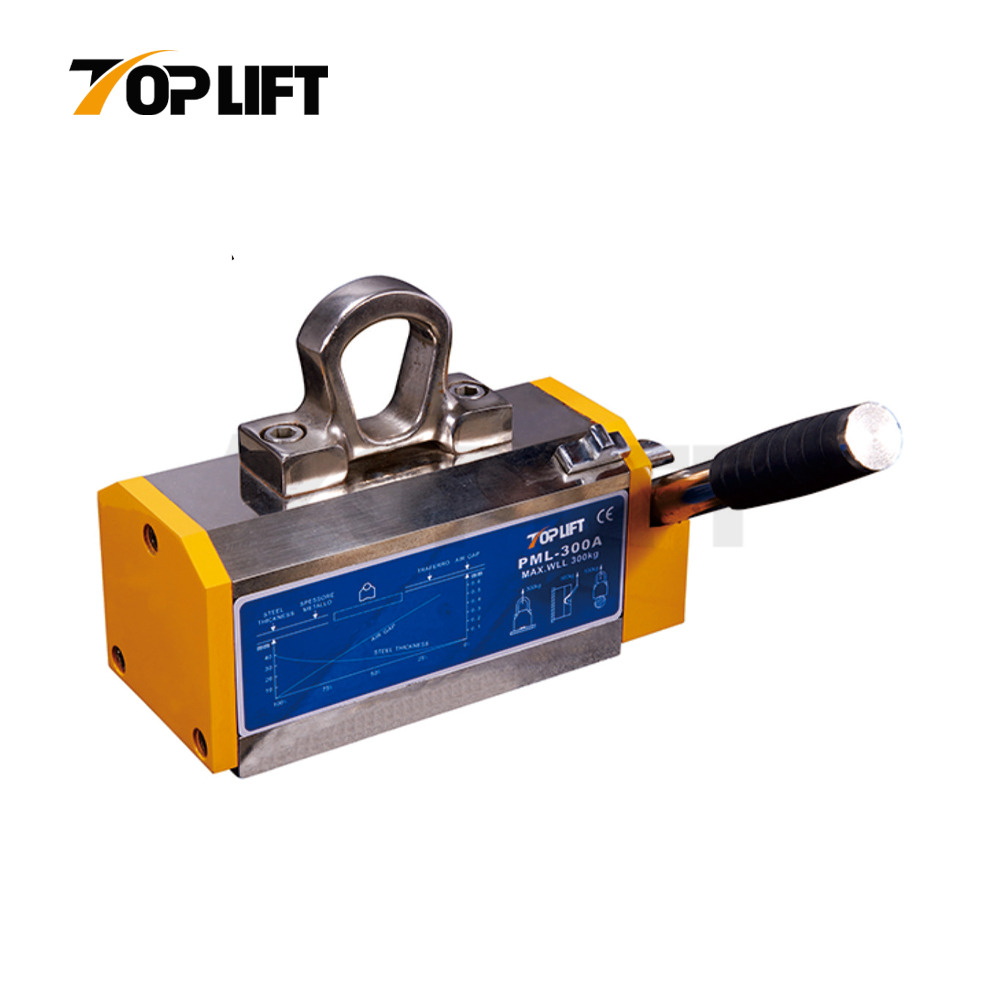

TP-PML-A
| Quantity: | |
|---|---|
WLL:100-2000KGS
Top handling -compact dimensions and low weight
Only small sheet thicknesses required
Safe 2 hand operation is required to release the magnet
Guaranteed compliance with a safety factor of 3.5, safety factor 3:1 is available
High quality European devices
Suitable for both flat and round material
Opreating temperature range: -10 to +60 ºC

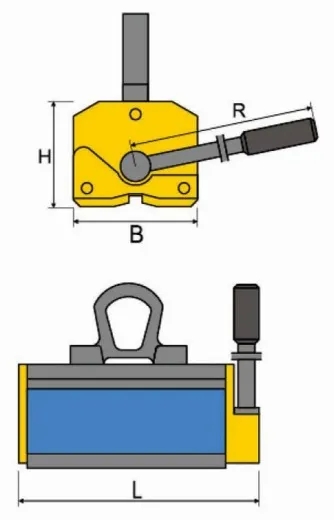

| Model | Rated Lifting Capacity(kg) | Cylindrical Lifting Capacity(kg) | Max Pull-Off Strength(kg) | L (mm) | B (mm) | H (mm) | R (mm) | Opreation Temperature (℃) | Weight (mm) |
| PML-100A | 100 | 30 | 300 | 134 | 60 | 65 | 130 | <80 | 3.5 |
| PML-300A | 300 | 100 | 900 | 205 | 87 | 89 | 172 | <80 | 10.0 |
| PML-600A | 600 | 200 | 1800 | 266 | 112 | 108 | 234 | <80 | 21.0 |
| PML-1000A | 1000 | 300 | 3000 | 332 | 148 | 125 | 300 | <80 | 40.0 |
| PML-1500A | 1500 | 500 | 4500 | 385 | 178 | 145 | 330 | <80 | 65.0 |
| PML-2000A | 2000 | 600 | 6000 | 473 | 178 | 145 | 370 | <80 | 83.0 |
Product Information
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time! F: Special technology on print.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
Q: What certifications does your product have?
Our products will have a factory report when they leave the factory. At the same time, most of our products have passed CE certification and meet European standards.
