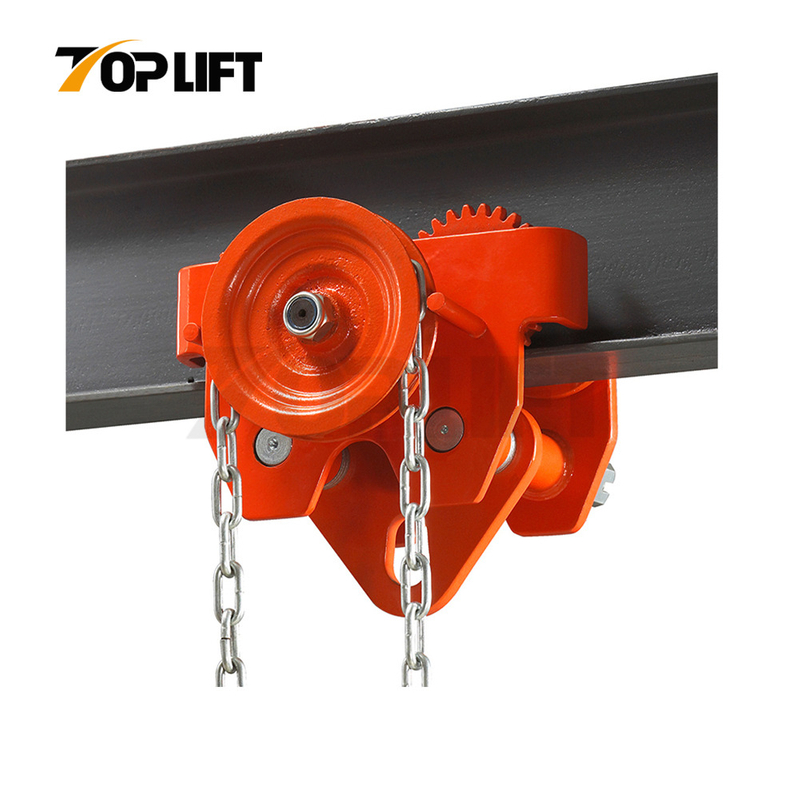

TP-Lifting MG Series Geared Trolley
WLL: 0.5 T- 50 T
Basic Info.
Model NO. | MG | Transport Package | in Pallet | |
Specification | 0.5 T-50 T | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 84269900 |

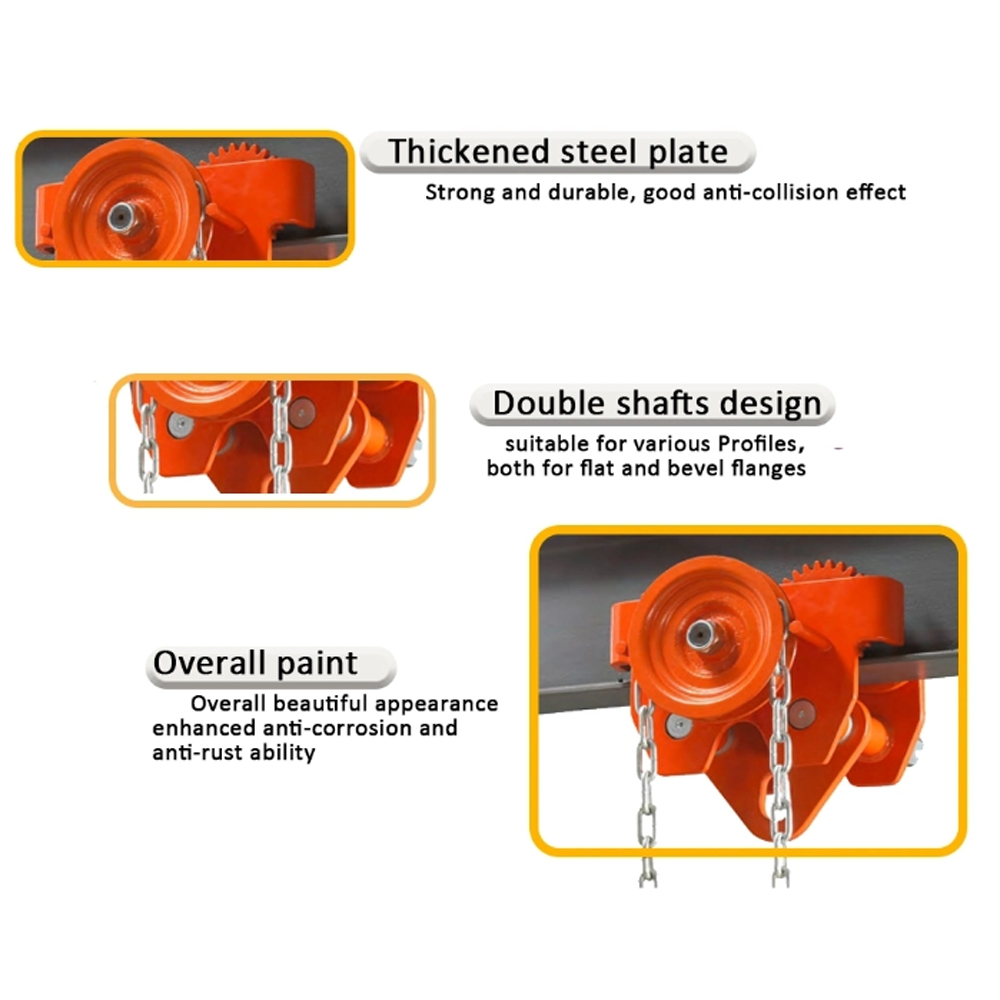

Features
uDouble shafts design;
uReasonable load and run stably;
uSuitable for various profiles, both for flat and bevel flanges
uContinuously adjustable lower flange geared trolley for 3M beam height

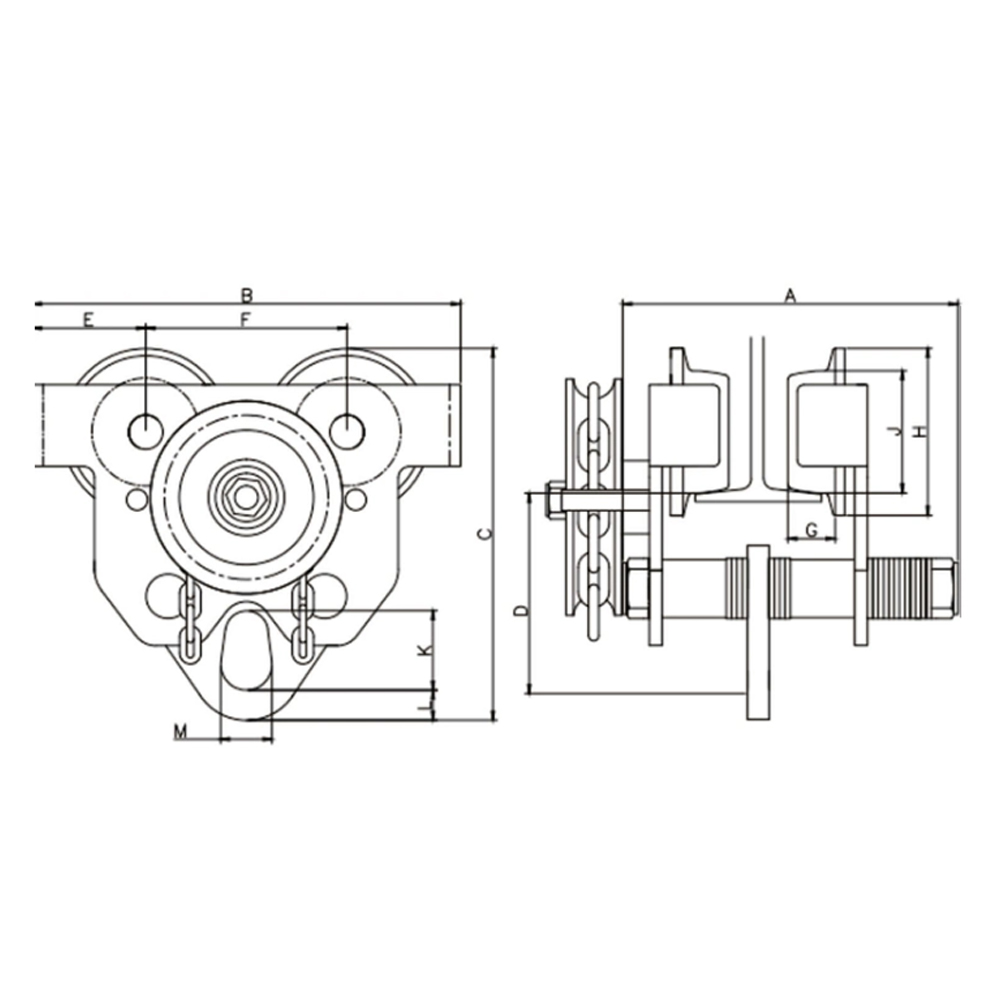

Specification
Model | Rated Load (Ton) | Test Load (Ton) | I-Beam recommended (mm) | I-Beam recommended (mm) | A | B | C | D | E | F | G | H | J | K | L | M | Weight (kg) | ||
a | b | a | b | ||||||||||||||||
MG-0.5T | 0.5 | 0.75 | 50-152 | 50-203 | 108 | 322 | 200 | 190 | 108 | 53 | 94 | 18.5 | 78 | 57 | 37 | 14 | 24 | 10.0 | 10.5 |
MG-1.0T | 1.0 | 1.5 | 64-203 | 64-305 | 115 | 436 | 238 | 211 | 115 | 59 | 120 | 24 | 90 | 66 | 40 | 16 | 28 | 14.5 | 16.0 |
MG-2.0T | 2.0 | 3.0 | 88-203 | 88-305 | 130 | 445 | 274 | 236 | 130 | 69 | 136 | 26 | 105 | 75 | 44 | 17 | 34 | 22.0 | 24.0 |
MG-3.0T | 3.0 | 4.5 | 100-203 | 100-305 | 164 | 459 | 314 | 295 | 164 | 82 | 150 | 33 | 130 | 96 | 60 | 17 | 34 | 30.0 | 38.0 |
MG-5.0T | 5.0 | 7.5 | 114-203 | 114-305 | 177 | 475 | 364 | 334 | 177 | 97 | 169 | 38 | 150 | 112 | 65 | 22 | 40 | 47.0 | 53.0 |
MG-10T | 10.0 | 15.0 | 124-203 | 124-305 | 378 | 525 | 480 | 460 | 237 | 130 | 198 | 55 | 189 | 150 | 90 | 27 | 57 | 88.0 | 94.0 |
MG-20T | 20.0 | 30.0 | 136-203 | 136-305 | 240 | 600 | 565 | 495 | 240 | 148 | 268 | 55 | 255 | 175 | 110 | 56 | 80 | 165.0 | 215.0 |
MG-30T | 30.0 | 45.0 | / | 175-305 | / | 673 | 625 | 564 | 258 | 164 | 296 | 60 | 255 | 196 | 125 | 76 | 90 | / | 230.0 |
MG-50T | 50.0 | 75.0 | / | 175-305 | / | 673 | 625x2 | 564 | 258 | 164 | 296 | 60 | 255 | 196 | 125 | 76 | 90 | / | 610.0 |

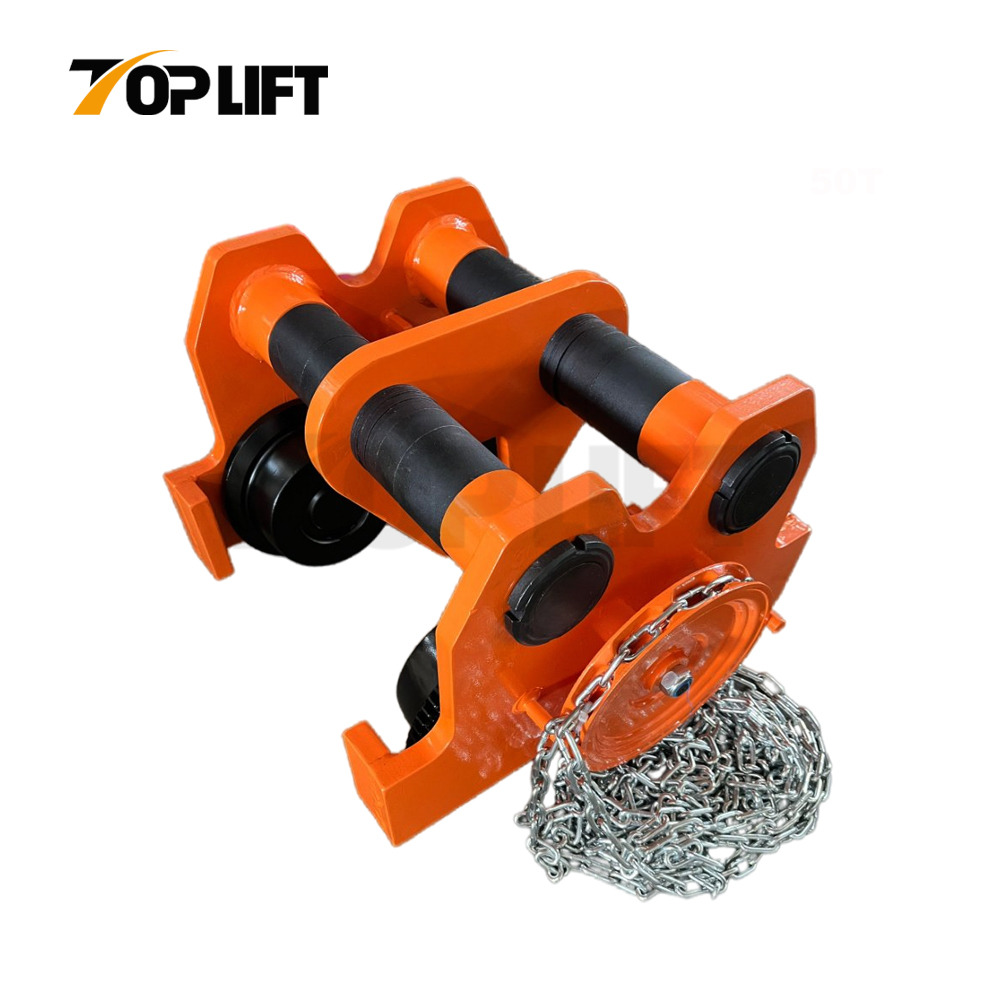

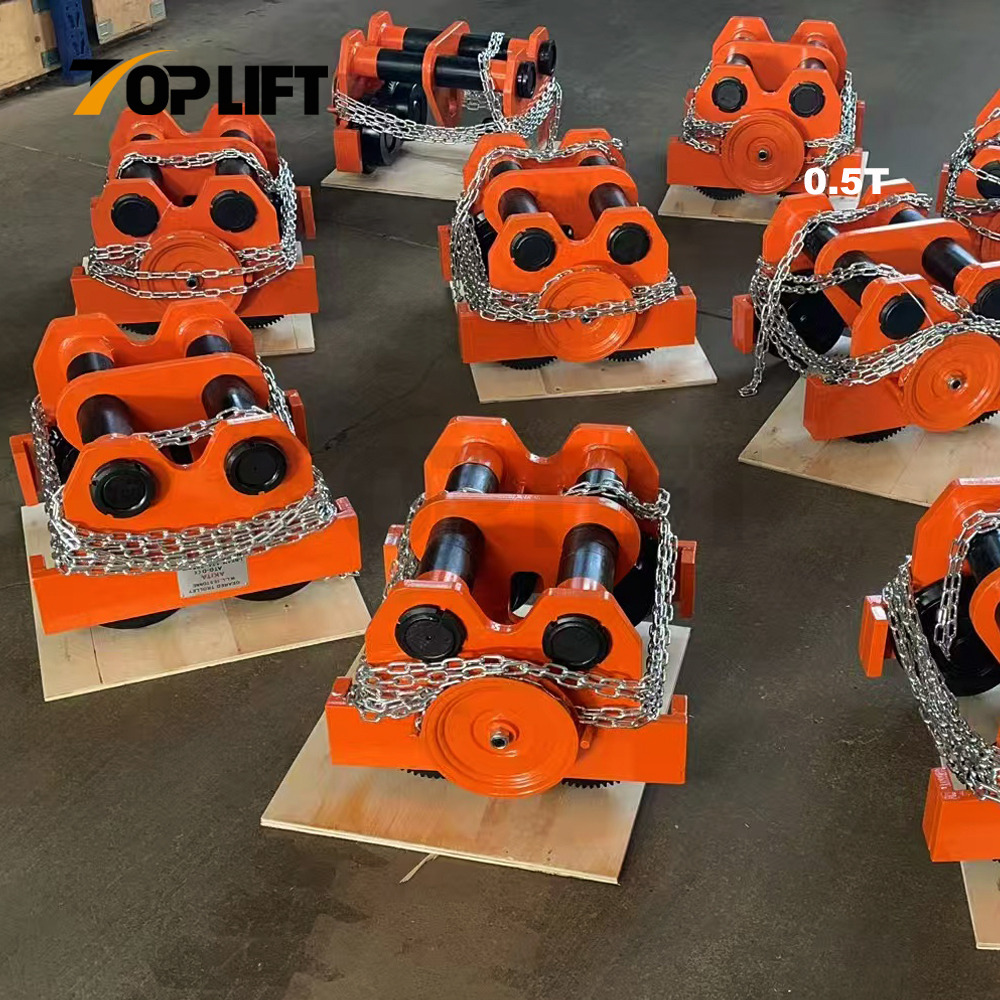

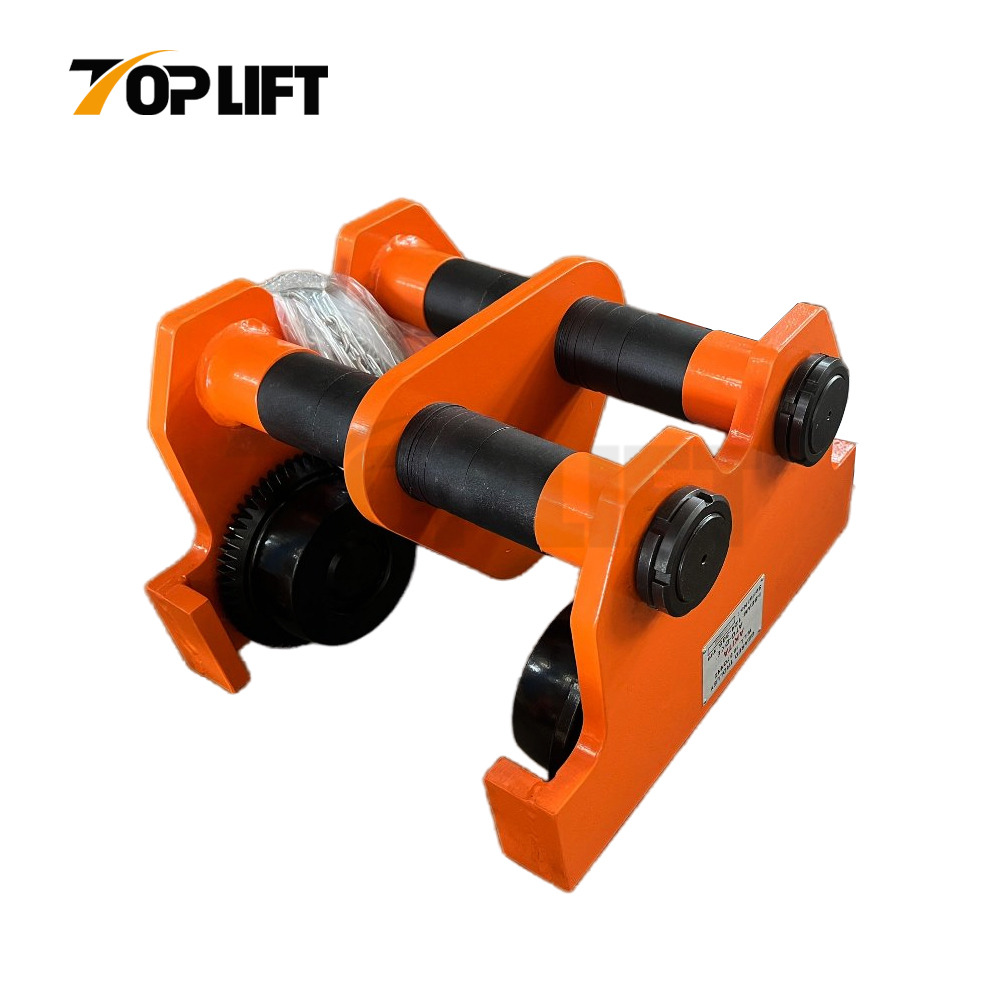

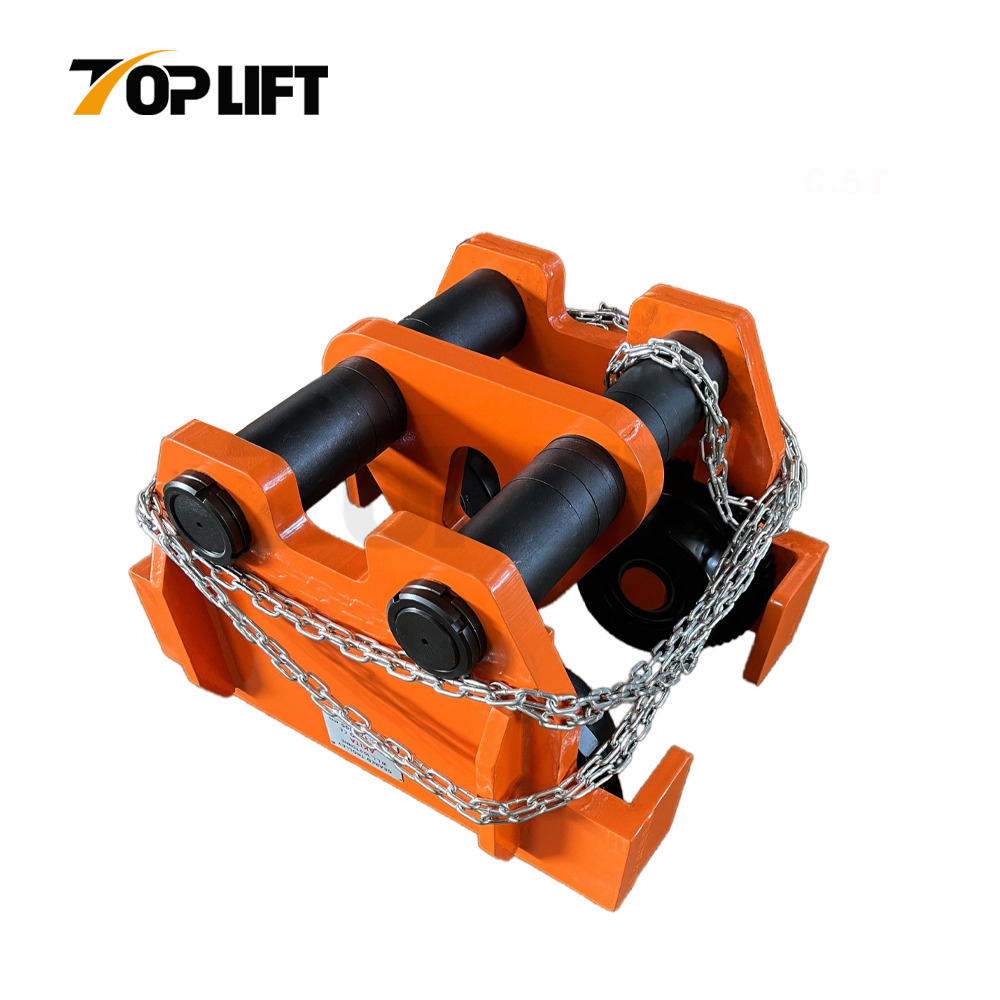

Product Details

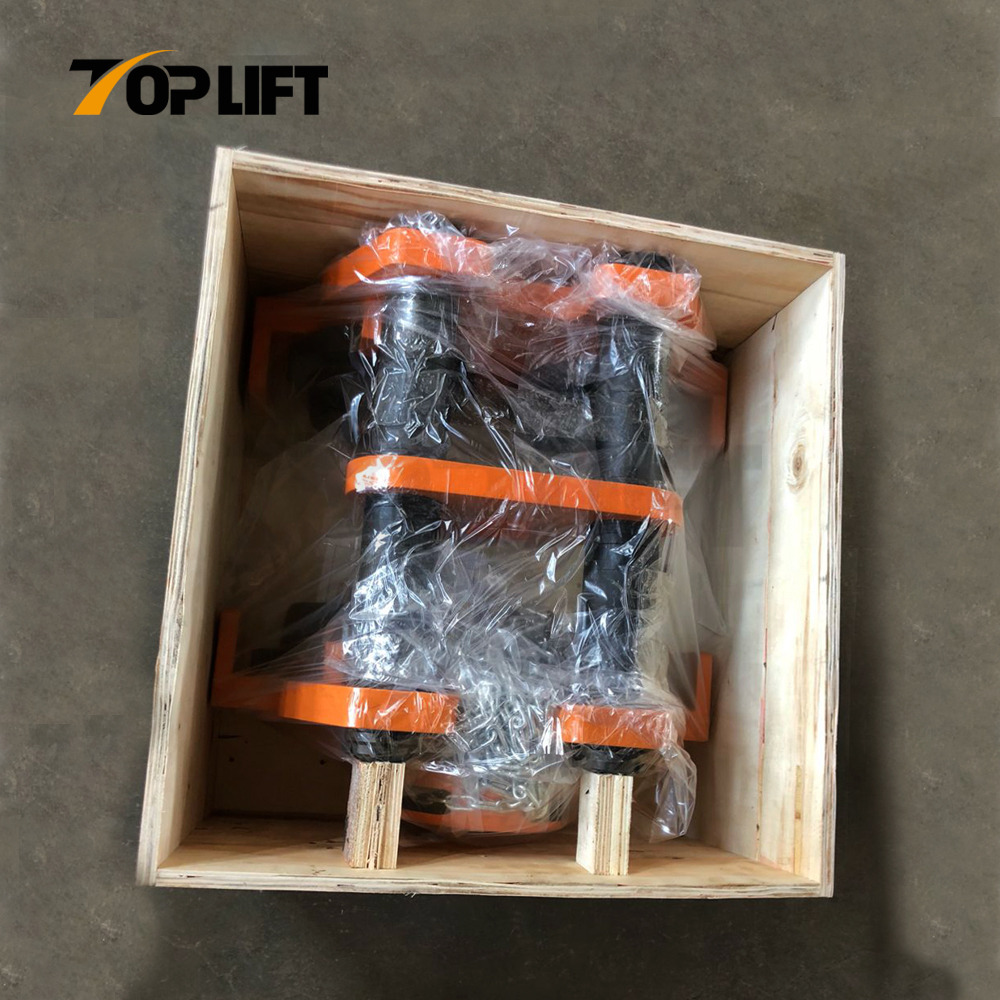

Packing
FAQ
1. Do you provide OEM service?
Yes, of course. We have professional team to support your ideas.
2. How to get samples to check your quality?
We provide free samples with small quantity, but express charges are accounted to buyers..
3.How about the production time ?
Normally 35 days are needed for production after deposit received. Customized products are excepted.
4.How will my order be shipped?
Usually shipped by sea, small order or urgent order can be delivered by air or by express.
5.How about the mini order ?
Depend on the particular products, please confirm with us.
