GCL-610
| Quantity: | |
|---|---|

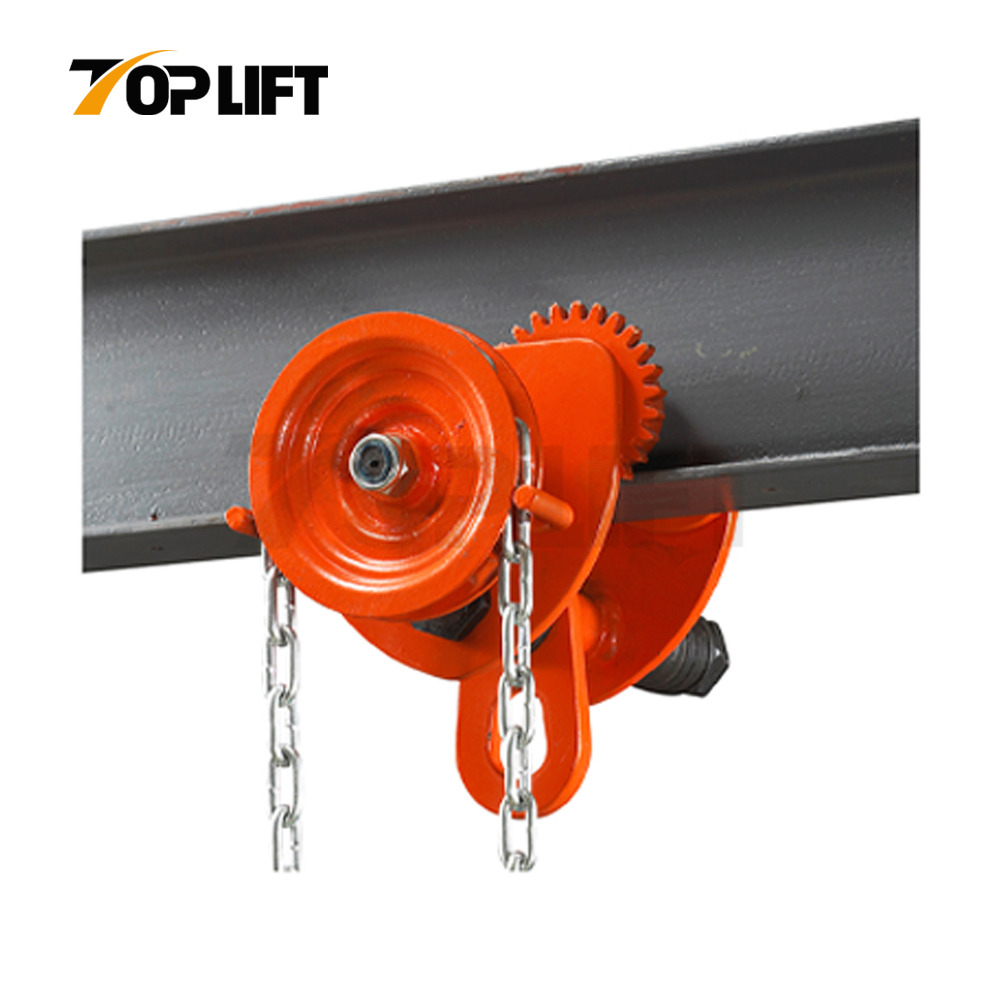

The GCL-610 Series Geared Trolley is a versatile and reliable solution for your hoisting needs. Designed to be compatible with manual, electric, and pneumatic hoists, this trolley offers exceptional adaptability.
One of the standout features of the GCL-610 Series Geared Trolley is its simplicity. With a design that allows for virtually infinite adaptation to various beam flange widths, this trolley ensures a seamless fit on your specific beam. No matter the width of your beam, this trolley can easily be adjusted to accommodate it.
Basic Info.
Model NO. | GCL-610 | Transport Package | Carton and Pallet | |
Specification | 0.5 T-10 T | Trademark | TOPLIFT / OEM | |
Origin | China | HS Code | 84269900 |
uSuitable for manual,electric and pneumatic hoists
uVery simple,virtually infinite adaptation to various beam flange widths
uAdjustable for wide range of beams and different profiles(e.g.INP,IPE,IPB)
uVersion like roller running gear,however,driven by hand chain via a hand chain sprocket
uWith galvanized hand chain for 3m running track height
Specification

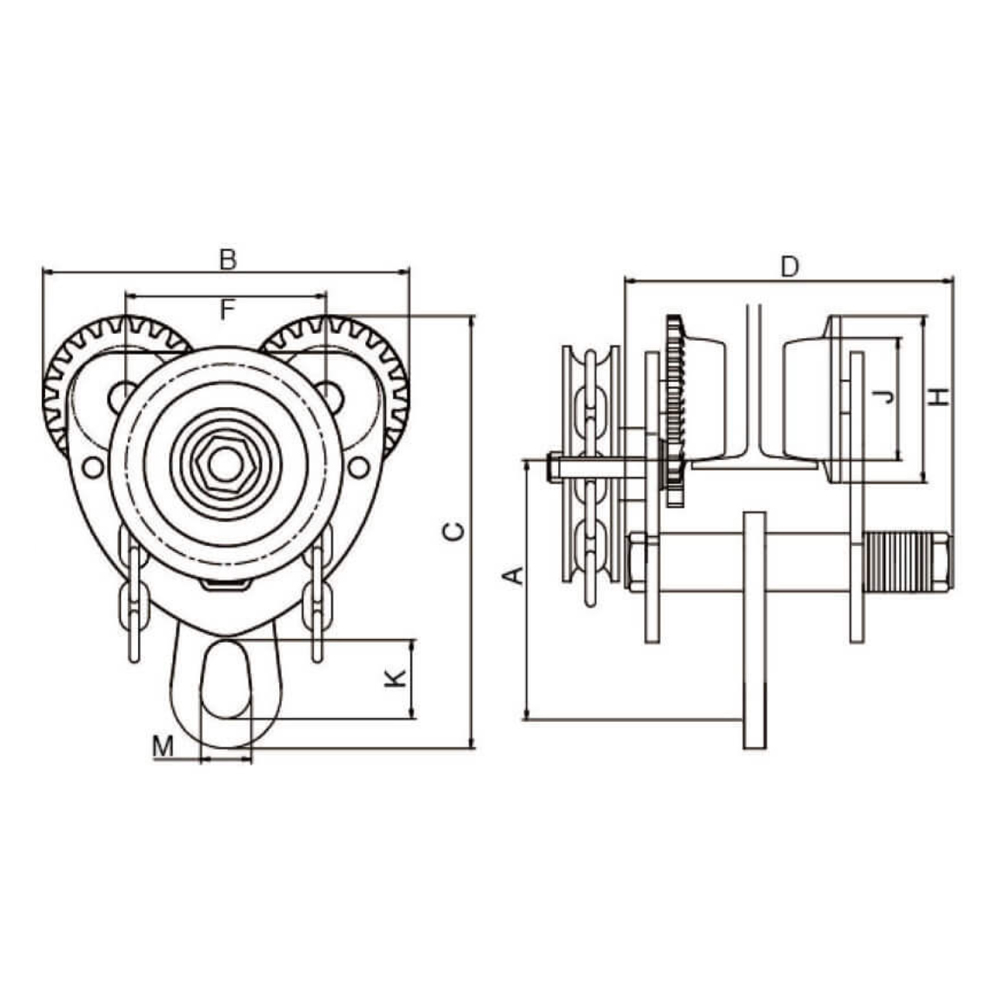

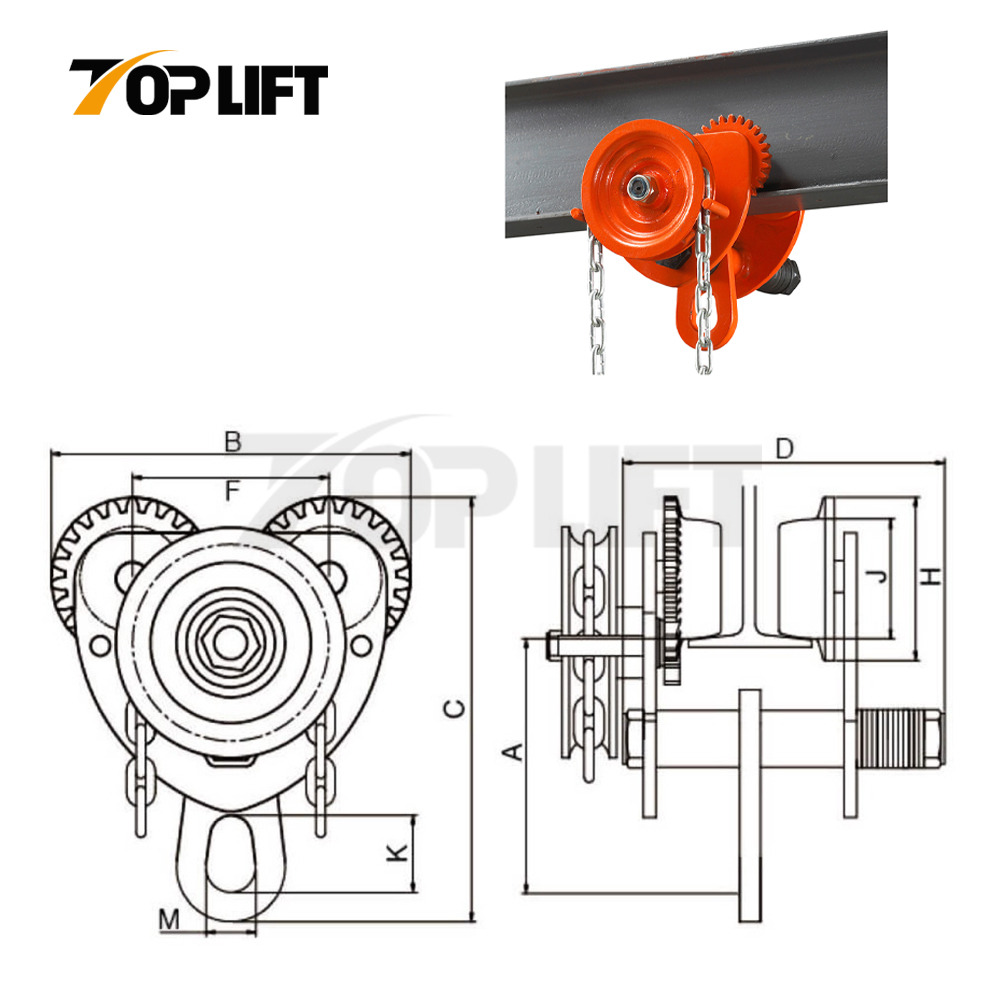

Model | Rated Load (Ton) | Test Load (Ton) | I-Beam recommended (mm) | A | B | C | D | F | H | J | K | L | M | Weight (kg) |
GCL-610-0.5T | 0.5 | 0.75 | 75-125 | 108 | 172 | 190 | 230 | 94 | 78 | 57 | 37 | 14 | 24 | 9.0 |
GCL-610-1.0T | 1.0 | 1.5 | 75-125 | 123 | 178 | 209 | 260 | 102 | 84 | 60 | 40 | 16 | 28 | 11.0 |
GCL-610-2.0T | 2.0 | 3.0 | 100-150 | 133 | 220 | 239 | 300 | 118 | 102 | 75 | 44 | 17 | 34 | 15.0 |
GCL-610-3.0T | 3.0 | 4.5 | 100-150 | 162 | 254 | 289 | 320 | 134 | 120 | 90 | 60 | 17 | 34 | 22.0 |
GCL-610-5.0T | 5.0 | 7.5 | 125-175 | 177 | 303 | 295 | 320 | 152 | 141 | 110 | 65 | 22 | 40 | 36.0 |
GCL-610-10T | 10.0 | 15.0 | 125-180 | 237 | 387 | 437 | 370 | 198 | 189 | 150 | 90 | 27 | 57 | 80.0 |
Product Details
FAQ
1. Do you provide OEM service?
Yes, of course. We have professional team to support your ideas.
2. How to get samples to check your quality?
We provide free samples with small quantity, but express charges are accounted to buyers..
3.How about the production time ?
Normally 35 days are needed for production after deposit received. Customized products are excepted.
4.How will my order be shipped?
Usually shipped by sea, small order or urgent order can be delivered by air or by express.
5.How about the mini order ?
Depend on the particular products, please confirm with us.
