TP-811
| Quantity: | |
|---|---|

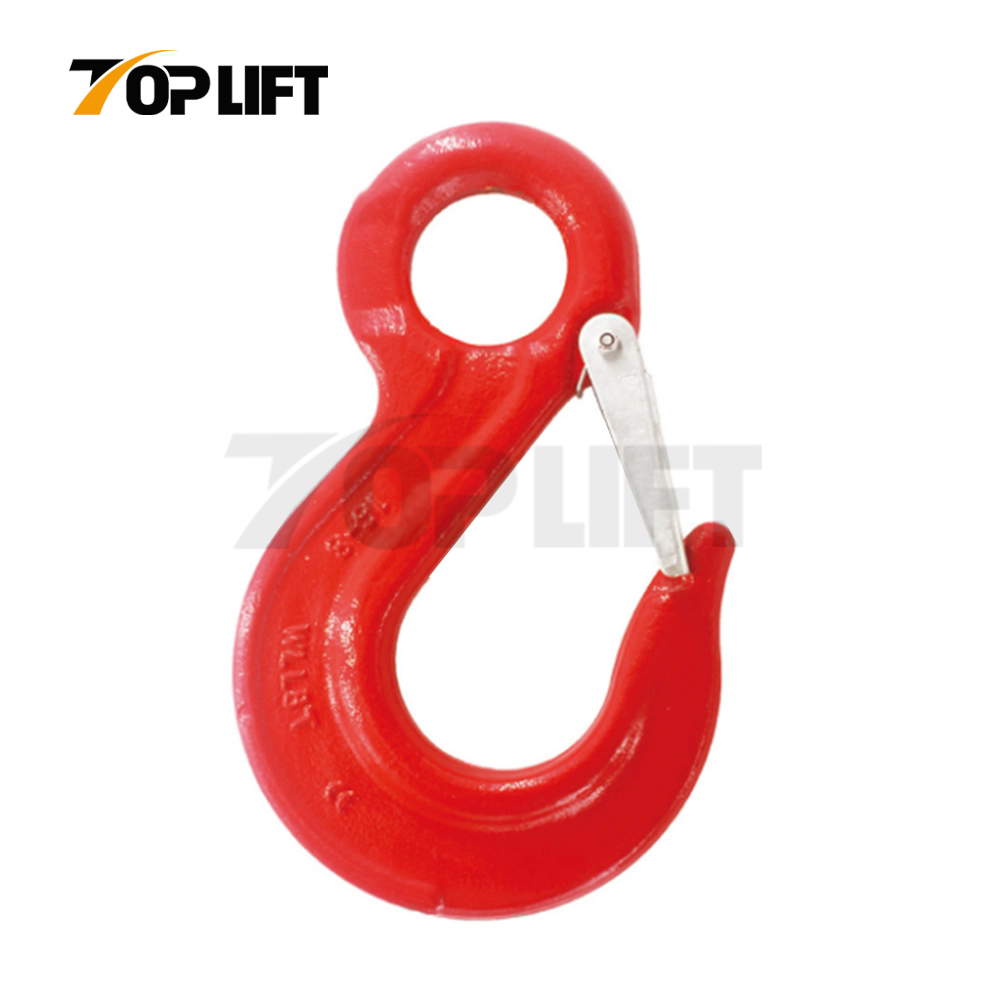

Eye sling Hooks are the most common style of bottom hook used on chain slings. The hook design ensures that the hook will close when loaded, so the load is caught in the hook and cannot be released when the load line becomes slack or comes into contact with another object. Comes with sturdy spring loaded latch to enhance security in lifting. Over size eye makes it excellent to fit with chain sling and wire rope sling. Wide throat opening is designed for easy rigging.
Features:
1. The eye style allows easy connection to chain connectors, shackles and wire rope slings.
2. Eye type self-Locking hook allows the hook to remain open until the load is engaged.
3. The whole surface with powder plastic coating, more beautiful and rust-proof.
4. It passes the individually test at 2.5 times working load limit.
5. It passes fatigue test at 1.5 times working load limit for 20000 cycles.
6 100% Magnaflux crack detection.
Our advantages
1. We have our own brand TOPLIFT and also provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
4. Rigging hardware with multiple patents. Good at custom and special-shaped products.
Specification
Model | WLL(t) | B.L(t) | B±1.5(mm) | E±2(mm) | D±2(mm) | A±3(mm) | L±2(mm) | Weight(kg/pc) |
8-TP811-06 | 1.12 | 4.48 | 9 | 21.5 | 20 | 20 | 108 | 0.3 |
8-TP811-7/8 | 2 | 8 | 11 | 27.5 | 24 | 25 | 133 | 0.4 |
8-TP811-10 | 3.15 | 12.6 | 15 | 27.2 | 38 | 38 | 167 | 0.9 |
8-TP811-13 | 5.3 | 21.2 | 19 | 38.5 | 51 | 43 | 213 | 2.2 |
8-TP811-16 | 8 | 32 | 23 | 42 | 62 | 50 | 255 | 3.2 |
8-TP811-20 | 12.5 | 50 | 24 | 44.6 | 74.8 | 63 | 305 | 5.8 |
8-TP811-22 | 15 | 60 | 32 | 70 | 68 | 62 | 348 | 9.2 |
8-TP811-26 | 21.2 | 84.8 | 35 | 84 | 84 | 64 | 394 | 13 |
8-TP811-32 | 31.5 | 126 | 37 | 102 | 100 | 68 | 480 | 18.5 |
Product Details
The eye sling hook covered powder plastic coating is integral forged and the latch is attached to the hook body tightly and not easy to fall off.
The hook passes the tensile test, fatigue test and the 100% magnaflux crack detection.
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packaging
The hook is packed with bag or carton with pallet.
Other Products
We also have other types of hook to satisfy customers’ different needs.
The pictures show other G80 hook, including G80 eye hook, clevis grab hook,rotating safety hook and eye hook.
Application
Our products are widely used in industry, transport, and construction.
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging’s needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, having rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
