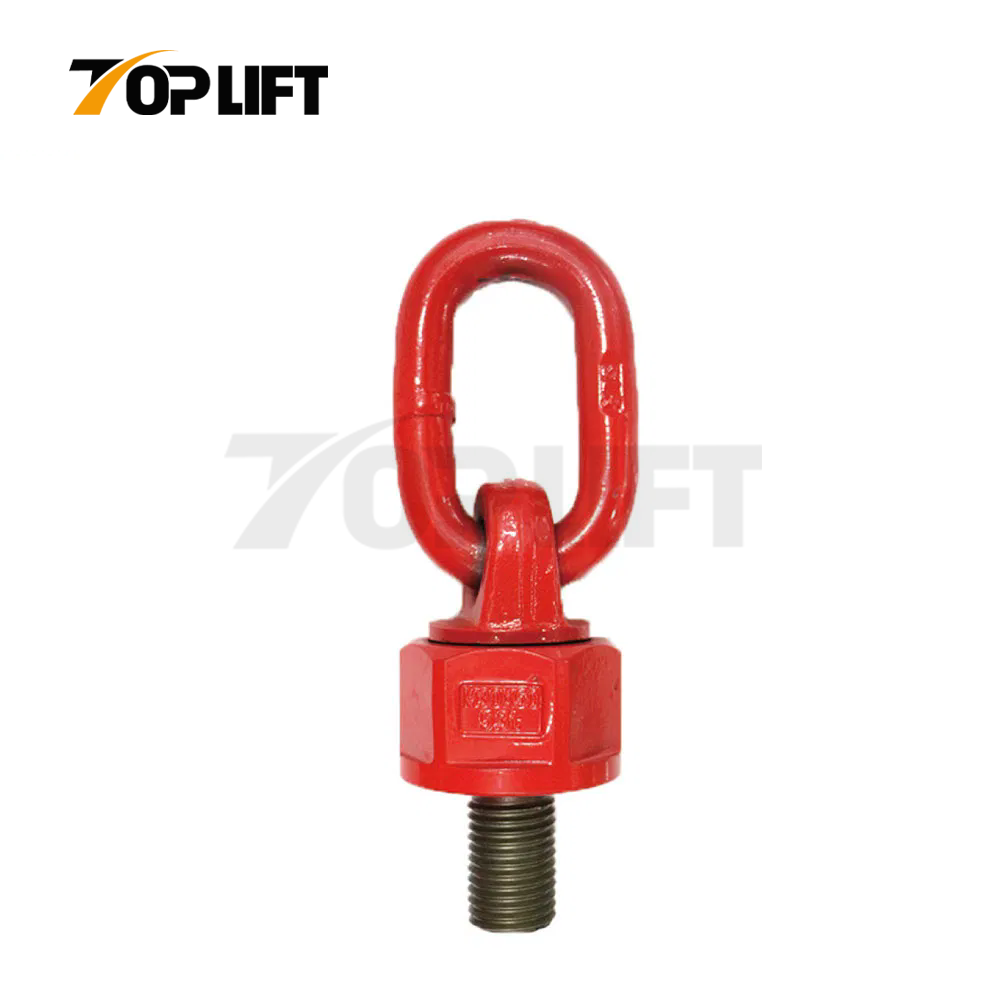

TP-8-304
| Quantity: | |
|---|---|
Features:
1. The whole surface with powder plastic coating.
2. Forged super alloy steel. Quenched and tempered to ensure it more stronger and more reliable.
3. The lifting screw point with the advantages of high strength, light weight, exquisite design, and strong versatility.
4. It passes the individually test at 2.5 times working load limit.
5. It passes fatigue test at 1.5 times working load limit for 20000 cycles.
6. 100% Magnaflux crack detection.
Our advantages
1. We have our own brand TOPLIFT and also provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
4. Rigging hardware with multiple patents. Good at customs and special-shaped products.
Our advantages
Checking the condition of the tool: Always check threaded lifting points for damage, cracks, corrosion, etc. before use. Ensure that the threads of the lifting point are clear and intact for smooth installation and removal.
Attaching slings or hooks: (1)Attach the lifting point to a suitable sling, hook or other lifting device. Ensure that the lifting equipment is securely connected to avoid loose or detached connections. (2)Use the appropriate type of lifting gear, e.g. chains, wire ropes, slings, etc., according to the lifting requirements.
Lifting operations: Ensure that the load is evenly distributed during lifting. Avoid excessive lateral pressure or uneven loads on the lifting point to minimise the risk of damage to the lifting point. Keep the lifting process smooth and avoid severe vibration or shock.
Specification
ITEM NO. | Weight(kg) | WLL(T) | Torque(N.m) | DxE(mm) | C±2(mm) | G±1(mm) | T±2(mm) | A±5(mm) | W±5(mm) | φ±0.5(mm) | |
90° | 0° | ||||||||||
TP-8-304-M8x13 | 0.54 | 0.3 | 0.6 | 10-15 | 8x13 | 16.5 | 53 | 42 | 55 | 30 | 14 |
TP-8-304-M10x18 | 0.54 | 0.45 | 0.9 | 10-15 | 10x18 | 16.5 | 53 | 42 | 55 | 30 | 14 |
TP-8-304-M12x20 | 0.55 | 0.5 | 1 | 10-15 | 12x20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
TP-8-304-M14x20 | 0.55 | 1.12 | 2 | 20-30 | 14x20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
TP-8-304-M16x25 | 0.57 | 1.12 | 2 | 20-30 | 16x25 | 16.5 | 53 | 42 | 55 | 30 | 14 |
TP-8-304-M20x33 | 1.11 | 2 | 4 | 50-70 | 20x33 | 19 | 68 | 56 | 70 | 35 | 16 |
TP-8-304-M24x40 | 1.7 | 3.15 | 6.3 | 130-160 | 24x40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
TP-8-304-M27x40 | 1.7 | 3.15 | 6.3 | 180-220 | 27x40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
TP-8-304-M30x50(5T) | 2.55 | 5.3 | 10.6 | 200-250 | 30x50 | 23.5 | 97 | 81 | 85 | 40 | 20 |
TP-8-304-M30x50(8T) | 3.9 | 8 | 12.8 | 200-250 | 30x50 | 28 | 113 | 93 | 115 | 50 | 22 |
TP-8-304-M36x54 | 3.9 | 8 | 12.8 | 280-400 | 36x54 | 28 | 110 | 90 | 115 | 50 | 22 |
TP-8-304-M39x54 | 4 | 8 | 12.8 | 280-400 | 39x54 | 28 | 110 | 90 | 115 | 50 | 22 |
TP-8-304-M42x63 | 4.54 | 10 | 16 | 500-600 | 42x63 | 28 | 110 | 90 | 115 | 50 | 25 |
TP-8-304-M48x68 | 4.82 | 10 | 16 | 500-650 | 48x68 | 28 | 110 | 90 | 115 | 50 | 25 |
TP-8-304-M56x84 | 12 | 15 | 24 | 600-900 | 56x84 | 42 | 165 | 133 | 152 | 70 | 32 |
TP-8-304-M64x95 | 12.75 | 15 | 24 | 600-900 | 64x95 | 42 | 165 | 133 | 152 | 70 | 32 |
Product Details
The product covered powder plastic coating is integral forged, stronger and more reliable. It passes the tensile test, fatigue test and 100% magnaflux crack detection.
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packaging
The product is packed with bag or carton with pallet.
Other Products
We also have other products to satisfy customers' different needs.
Application
Our products are widely used in industry, transport, and construction.
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging’s needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory.
6. Inspection before loading.
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, having rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
