TP-804
TOPLIFT OR OEM
| Quantity: | |
|---|---|

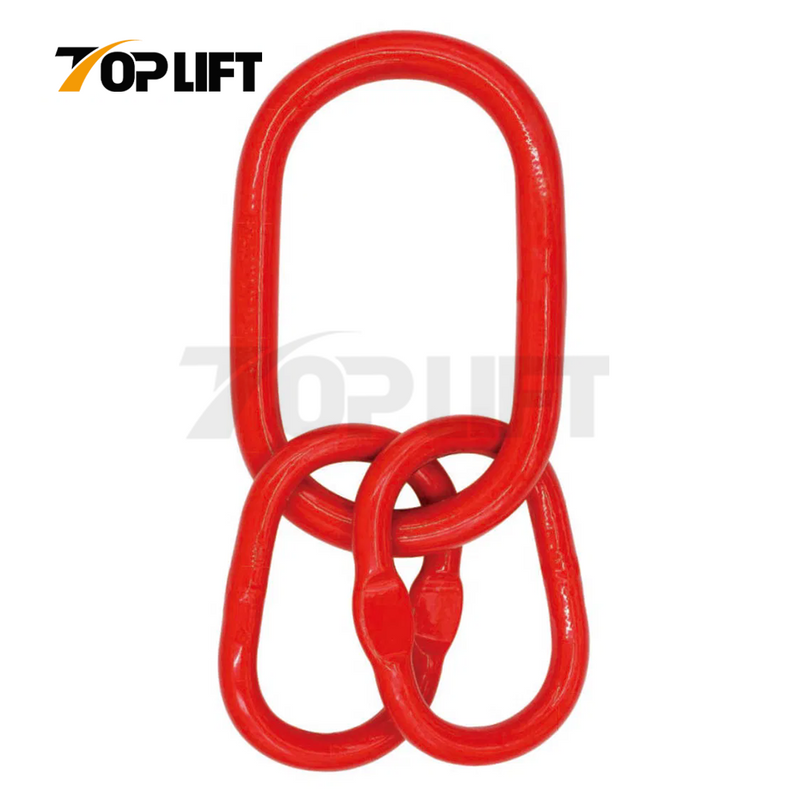

The Master Link consists of one main ring and two sub-rings. Our master link must pass the standard test. It can be used in machinery, iron and steel industries, petroleum chemical industries and so on.
Features
Durable Coating: Powder plastic coating ensures a smooth surface with excellent corrosion resistance.
Superior Strength: Forged from quenched and tempered super alloy steel for enhanced reliability.
Versatile Application: Ideal for spreader assembly, linking chains, and heavy-duty lifting setups.
Safety Assured: Individually tested at 2.5x WLL and fatigue-tested at 1.5x WLL for 20,000 cycles.
Flawless Quality: 100% Magnaflux crack detection ensures exceptional safety and performance.
Our advantages
1. We have our own brand TOPLIFT and also provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
4. Rigging hardware with multiple patents. Good at custom and special-shaped products.
Specification
Red area: main link welded; sub links welded
Green area: main link forged; sub links welded
Model | Chain | W.L.L(T) 3or4 leg (0-45°) | W.L.L(T)Rope | A(mm) | B(mm) | D(mm) | a(mm) | b(mm) | d(mm) | s(mm) | Weight(kg/pc) |
TP804-1/2 | 7/23 | 2.36 | 2.4 | 100±4 | 60±4 | 14±0.5 | 85±4 | 40±3 | 12±0.5 | 6±0.5 | 0.82 |
TP804-11/16 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 | 1.6 |
TP804-5/8 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 | 1.6 |
TP804-3/4 | 5/16 | 4.25 | 4.2 | 160±5 | 90±4 | 20±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 | 1.95 |
TP804-7/8 | 3/8 | 6.7 | 8 | 180±5 | 100±4 | 22±1 | 150±5 | 70±4 | 18±0.5 | 8.4±0.5 | 3.16 |
TP804-1B | 3/8 | 10 | 10 | 270±6 | 140±5 | 25±1 | 155±5 | 80±4 | 20±0.5 | 11±0.5 | 5.28 |
TP804-1-1/8 | 1/2 | 11.2 | 12 | 270±6 | 140±5 | 28±1 | 160±5 | 90±4 | 22±1 | 13.5±0.5 | 6.75 |
TP804-1-1/4 | 5/8 | 17 | 17 | 270±6 | 140±5 | 32±1 | 180±5 | 100±4 | 25±1 | 16.5±0.5 | 9.31 |
TP804-1-1/2 | 3/4 | 23.6 | 25 | 300±6 | 160±5 | 40±1 | 270±6 | 140±5 | 31±1 | 19±0.5 | 18.4 |
TP804-1-3/4 | 7/8 | 31.5 | 31.5 | 340±7 | 180±5 | 45±1 | 285±6 | 155±5 | 36±1 | 22±0.5 | 26.6 |
TP804-2 | 1 | 45 | 45 | 350±7 | 90±5 | 51±2 | 340±7 | 180±5 | 45±1 | 25±0.5 | 42.91 |
Product Details
The master link covered powder plastic coating is integral forged, stronger and more reliable.
The master link passes the tensile test, fatigue test and the 100% magnaflux crack detection.
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packaging
The master link is packed with bag or carton with pallet.
Other Products
We also have other types of product to satisfy customers’ different needs.
Application
Our products are widely used in industry, transport, and construction.
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging’s needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, having rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
