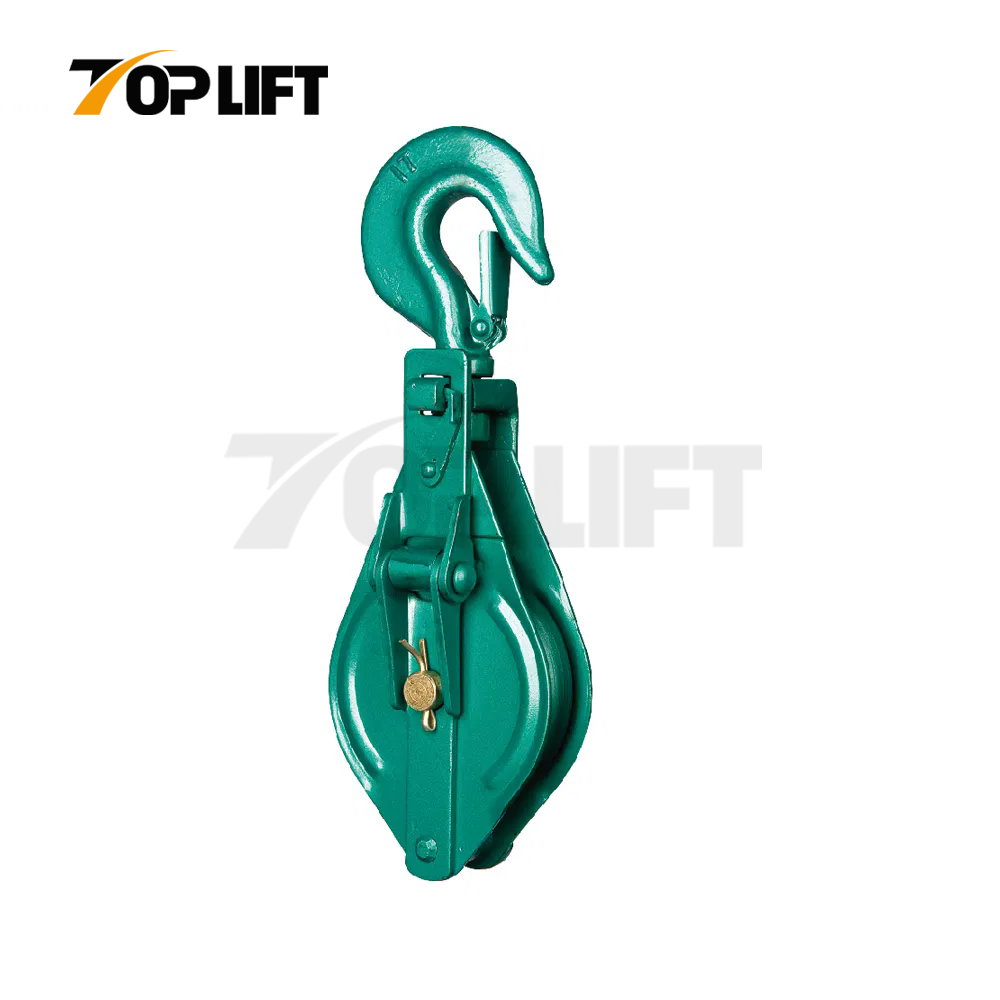

TOPLIFT snatch block can withstand the intense use of the regular towing. Quick pull pin enables the easy cable loading.

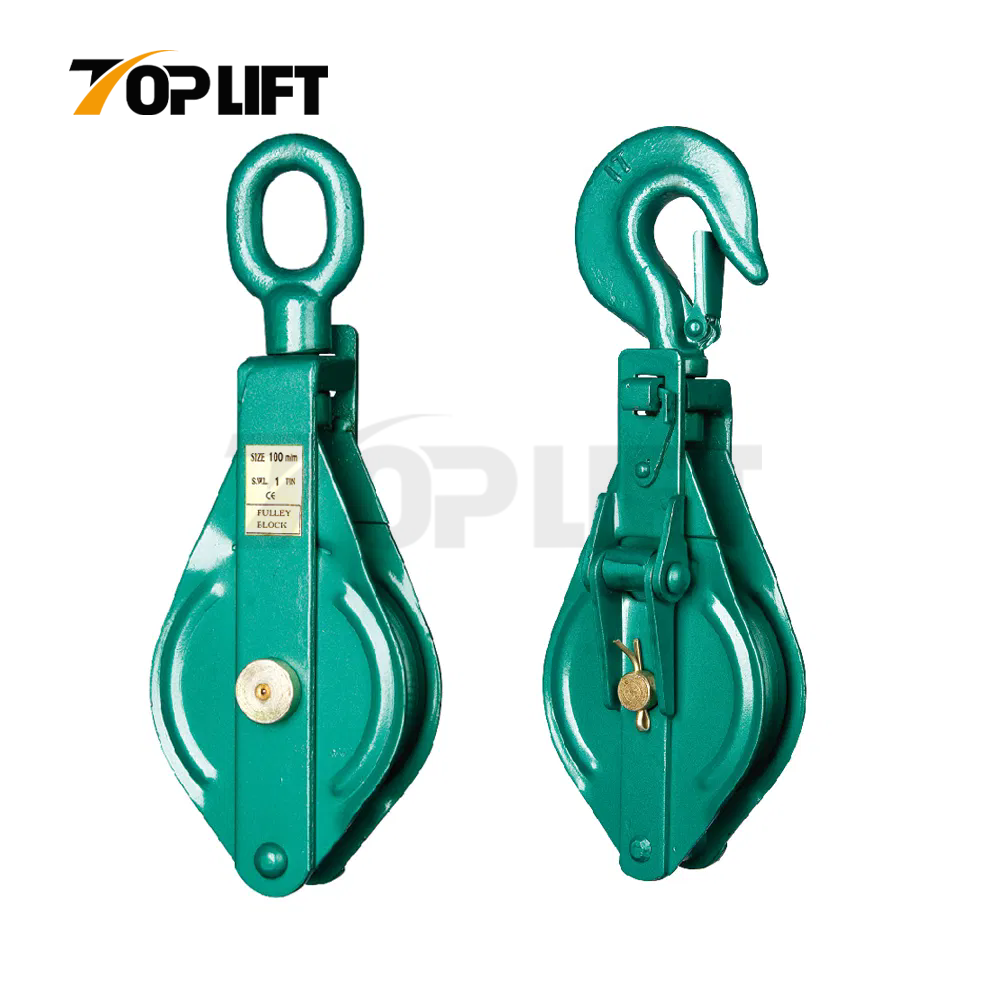

The snatch block has two types of end fitting, eye and hook, making attachment and detachment simple.
Features:
1. The TOPLIFT single sheavesnatch blocks use a new heavy-duty steel structure to deliver superior strength which is up to 4 times stronger than the standard snatch blocks.
2. Snatch blocks are used in factories, mines, agriculture, production of electricity, building construction, dock ships, warehouses, machine installation, cargo lifting and so on.
Our advantages
1. Capacity and rated loads of the snatch block range from 0.5T to 10T.
2. Durable powder coat finish.
3. Heavy duty feature permits it to perform under extreme condition.
4. 200% over load capacity test one by one before package.
| Model | Type | S.W.L. | Sheave Dia (mm) | Dimensions(mm) | For Wire Dia (mm) | Weight (kg/pc) | ||||
| Hook | Eye | Hook A1 | Eye A2 | B | C | |||||
| TP-75CYX1S | 75CYX1S | 75CYX1SO | 0.5T | 75 | 286 | 227 | 87 | 50 | 8 | 1.6 |
| TP-100CYX1S | 100CYX1S | 100CYX1SO | 1T | 100 | 311.5 | 284.5 | 112 | 55.5 | 10 | 3.5 |
| TP-125CYX1S | 125CYX1S | 125CYX1SO | 1.5T | 125 | 370 | 344 | 140 | 63.5 | 13 | 4.6 |
| TP-150CYX1S | 150CYX1S | 150CYX1SO | 2T | 150 | 442.5 | 417 | 168 | 101 | 16 | 7.7 |
| TP-180CYX1S | 180CYX1S | 180CYX1SO | 3T | 180 | 498 | 478 | 204 | 107 | 19 | 11.0 |
| TP-200CYX1S | 200CYX1S | 200CYX1SO | 4T | 200 | 590.5 | 556 | 226 | 128 | 22 | 19.3 |
| TP-250CYX1S | 250CYX1S | 250CYX1SO | 5T | 250 | 590.5 | 651 | 276 | 147 | 25 | 33.8 |
| TP-300CYX1S | 300CYX1S | 300CYX1SO | 6T | 300 | 795 | 775 | 330 | 162 | 26 | 48.0 |
| TP-350CYX1S | 350CYX1S | 350CYX1SO | 10T | 350 | 934 | 898 | 395 | 178 | 28 | 66.0 |
PRODUCT INFORMATION
Details
Single wheel type sheave snatch block is available.
Directional block is smooth and saving effort which is quenched at high temperature with good durability.
PACKING
We pack them carefully in carton then in iron pallet.
Factory Environment
Application
FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
