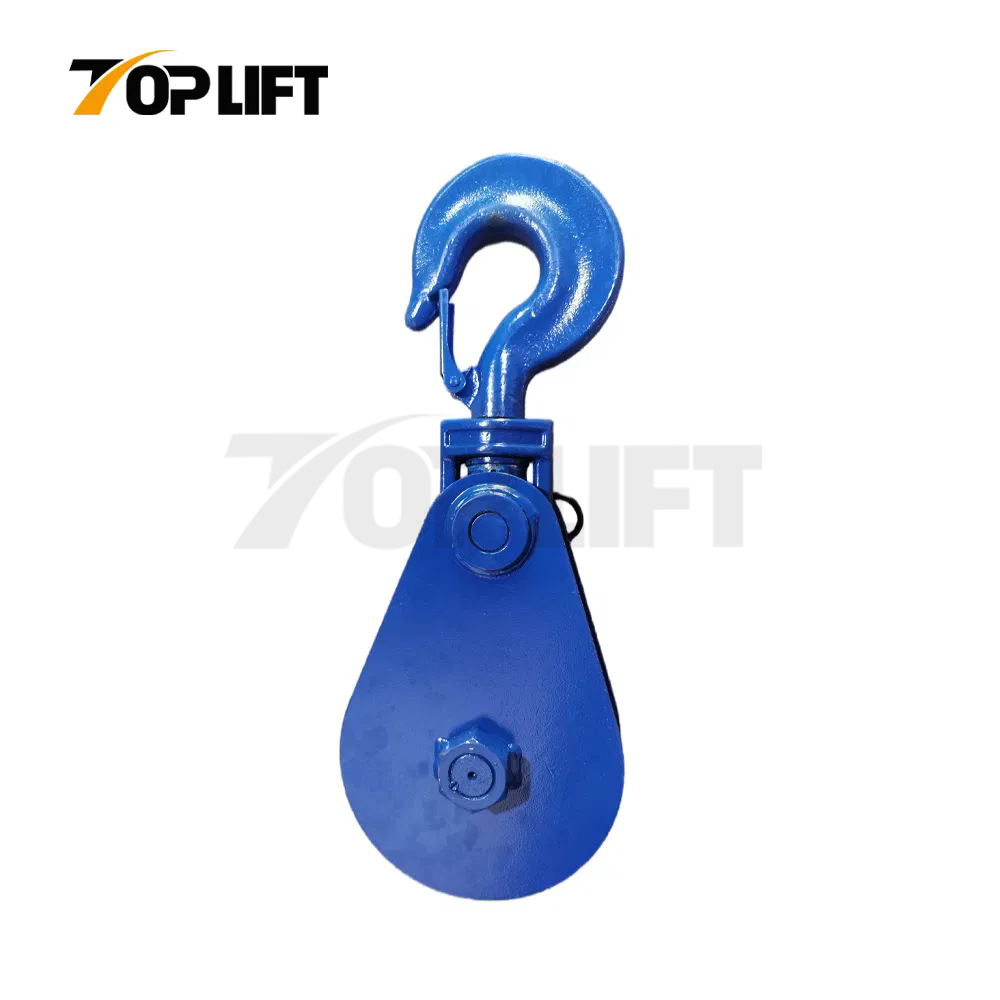

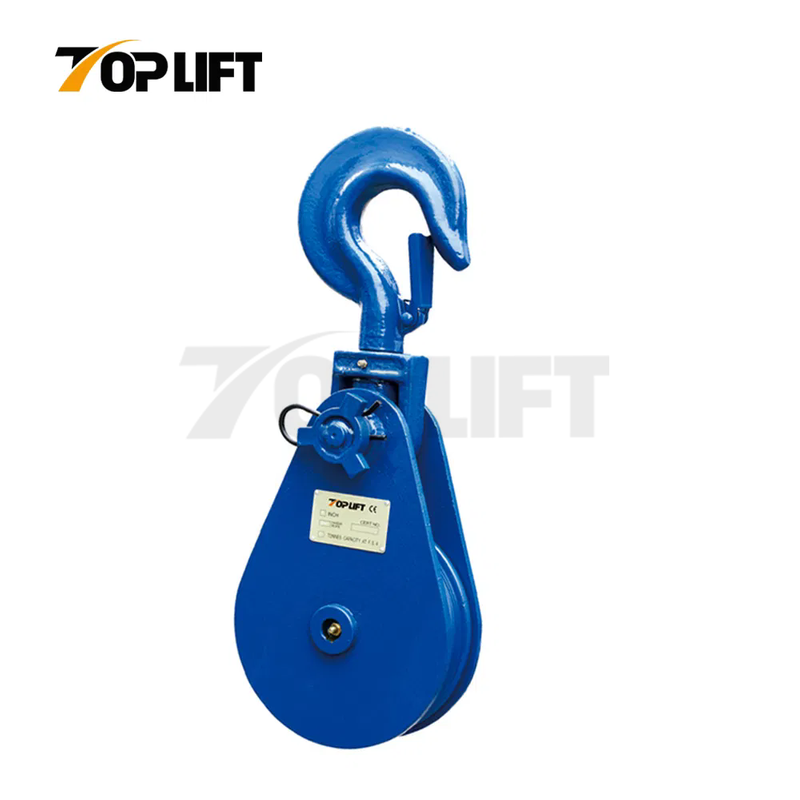

TOPLIFT Heavy-duty snatch block can withstand the intense use of the regular towing. Quick pull pin enables the easy cable loading.
The snatch block has a hook end fitting, making attachment and detachment simple. The side panel comes off so you can easily set up your rigging system.
Features:
1. The TOPLIFT heavy duty snatch blocks use a new heavy-duty steel structure to deliver superior strength which is up to 4 times stronger than the standard snatch blocks.
2. Snatch blocks are used in factories, mines, agriculture, production of electricity, building construction, dock ships, warehouses, machine installation, cargo lifting and so on.
Our advantages
1. Capacity and rated loads of the snatch block range from 2T to 85T.
2. Durable powder coat finish.
3. Heavy duty feature permits it to perform under extreme condition.
4. Safety factor: 4 times.
5. 200% over load capacity test one by one before package.
Model | S.W.L. | Sheave Dia (mm) | A(mm) | B(mm) | C(mm) | For Wire Dia | Weight(kg/pc) |
TP-MH-3*X1 | 2T | 75 | 292 | 82 | 70 | 7-9 | 3.9 |
TP-MH-4(1/2)*X1 | 4T | 115 | 358 | 120 | 70 | 10-12 | 6.2 |
TP-MH-6*X1 | 4T | 150 | 412 | 160 | 70 | 16-18 | 8.4 |
TP-MH-6*X1 | 8T | 150 | 498 | 160 | 93 | 20-22 | 14.1 |
TP-MH-8*X1 | 8T | 200 | 549 | 210 | 93 | 20-22 | 19 |
TP-MH-8*X1 | 15T | 200 | 672 | 230 | 102 | 22-24 | 34 |
TP-MH-10*X1 | 10T | 250 | 695 | 260 | 115 | 24-26 | 36 |
TP-MH-10*X1 | 12T | 250 | 701 | 260 | 115 | 24-26 | 36 |
TP-MH-12*X1 | 12T | 300 | 797 | 310 | 133 | 24-26 | 56 |
TP-MH-12*X1 | 15T | 300 | 800 | 310 | 133 | 26-28 | 58 |
TP-MH-14*X1 | 22T | 355 | 960 | 365 | 140 | 28-32 | 112 |
TP-MH-16*X1 | 22T | 400 | 1027 | 415 | 140 | 28-32 | 122 |
TP-MH-16*X1 | 30T | 400 | 1085 | 415 | 155 | 32-35 | 170 |
TP-MH-20*X1 | 30T | 500 | 1177 | 514 | 162 | 32-35 | 213 |
TP-MH-24*X1 | 50T | 600 | 1445 | 625 | 240 | 46-50 | 408 |
TP-MH-30*X1 | 85T | 760 | 1960 | 800 | 188 | 56-64 | 810 |
DETAILS
Integrated Design
Directional Pulley
PACKING
Factory/Production
APPLICATION
FAQ
1. What is your MOQ?
Different items with different MOQ demands. Please contact us for detailed information.
2. How long is your delivery time?
For samples, around 10 days. For mass production, around 45 days according to the quantity.
3. Do you offer samples?
For normal products, we can provide 1-2 pieces of free samples. But the express cost would be on your account. You could provide your express account number in advance.
4. Can you help customers to design their own products?
Of course. Professional opinions will be provided if customers need them.
5. Can customers have their logo products?
As long as the quantity meets our MOQ request, to place customer's logo is feasible.
6. How do you control the quality?
We have the inspection team to control the quality problem. From material to finished products, at each step, our inspection man inspects it. For each order, we will test and have the record.
