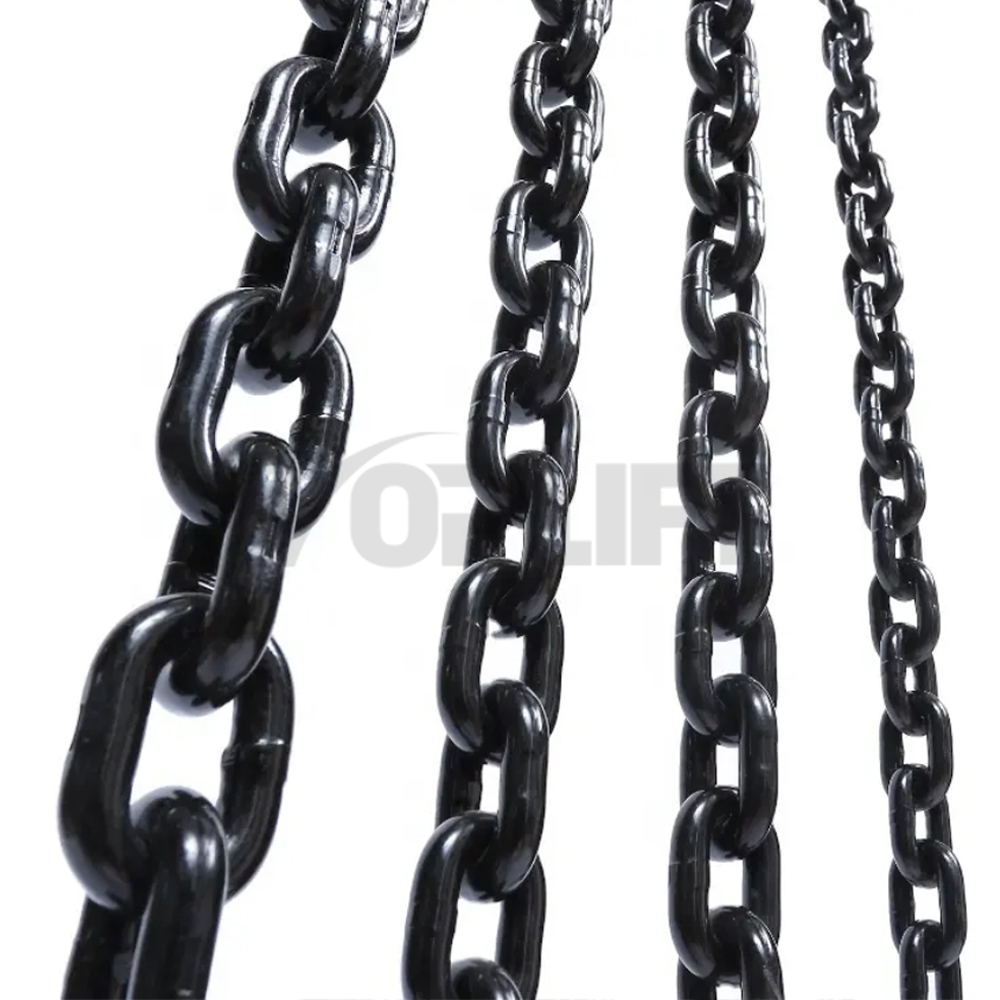

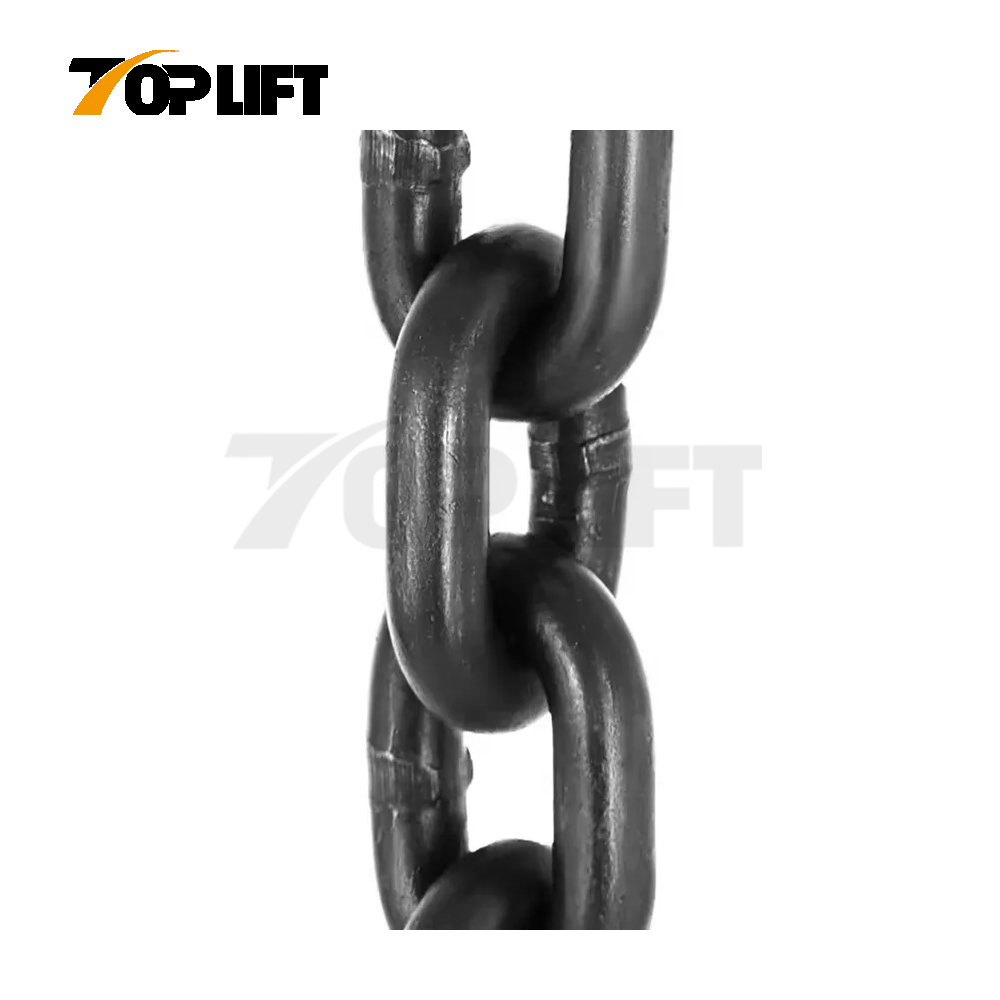

G80 Hoist chain EN818-7
We provide high-quality G80 black load chain, applied on electric hoists and manual hoists... Our hoist chain meet the standard EN818-7 from the smallest size-5 x15mm to 11.2 x 34mm, ideal for most lifting applications.
Color | Solid Color | Standard Required | En818-7 | |
Transport Package | Cartons/Pallets | Diameter | 5mm to 11.2mm | |
Trademark | TOPLIFT or OEM | Origin | China | |
HS Code | 73158200 | Production Capacity | 5000 Tons/Month |
Features
uG80 Chain for Lifting, with good wear characteristics and ideal for most lifting applications, are widely used in different hoist operations.
uAvailable in self-colored, Black Oxidation...
uG8 chain's general mark is G80 or G8, adding customized ID & Batch No. Is also available.
Specification
G80 hoist Chain EN818-7
Item No. | Diameter (mm) | Tolerance (mm) | Pitch P | Nine Links Pitch L | Outside Width | Inside(min) w1(mm) | Inside(min) dw(mm) | Inside(min) 2e(mm) | |||
Specification Value | Diameter (mm) | Specification Value | Diameter (mm) | Specification Value | Diameter (mm) | ||||||
TP-5X15 | 5 | +0.10-0.30 | 15 | 0.29 | 135 | +0.68 | 17 | 0.38 | 6.8 | 5.5 | 6 |
TP-6X18 | 6 | +0.12-0.36 | 18 | 0.35 | 162 | 7±0.28 | 20 | 0.45 | 7.76 | 6.6 | 7.2 |
TP-6.3X19 | 6.3 | +0.13-0.38 | 19 | 0.37 | 171 | 8±0.32 | 21 | 0.48 | 8.14 | 6.9 | 7.56 |
TP-7.1X21 | 7.1 | +0.14-0.43 | 21 | 0.41 | 189 | 10±0.40 | 23 | 0.54 | 8.52 | 7.5 | 9.1 |
TP-8X24 | 8 | +0.16-0.43 | 24 | 0.46 | 216 | 13±0.52 | 26 | 0.6 | 9.68 | 8.8 | 9.6 |
TP-9X27 | 9 | +0.18-0.54 | 27 | 0.52 | 243 | 16±0.64 | 30 | 0.68 | 11.64 | 19.9 | 10.8 |
TP-10X30 | 10 | +0.20-0.60 | 30 | 0.58 | 270 | 18±0.90 | 33 | 0.75 | 12.6 | 11 | 12 |
TP-11.2X34 | 11.2 | +0.40-0.40 | 34 | 0.6 | 306 | 20±1.00 | 35 | 0.85 | 13.2 | 12.3 | 13.4 |
Product Details
Packing
Normally packed in steel drums on steel pallets/ wooden boxes/Gunny bags.
Production
FAQ:
Q1: Can I get a (free) sample?
A1: Sample Yes. Free cost if the quantity is small or value is not too high with the express charge covered by the buyers. And after receiving the first formal order, we can deduct the sample cost from it. Everything can be negotiated for a sincere cooperation.
Q2: What's your payment terms?
A2: We accept USD/RMB/EUR. Normally, when the total amount is no less than $10000, it's T/T 30% deposit and balance payment against B/L copy; when the total amount is less than $10000, it's T/T 100% in advance.
Q3: What's your MOQ?
A3: Different products with different MOQ. Please contact us to confirm. For trial order, we can support on small quantity, so you can test our product quality and our service first. But generally, we are not doing retailing for we are supplying to distributors & importers.
Q4: Is OEM available?
A4: Yes, OEM is available. We have done OEM production for more than 30 brands.
Q5: How to order the products I need?
A5: Please send us inquiry with detailed production information, size, quantity, packing requirement you need. If possible, kindly attach reference photos to avoid any misunderstanding.
