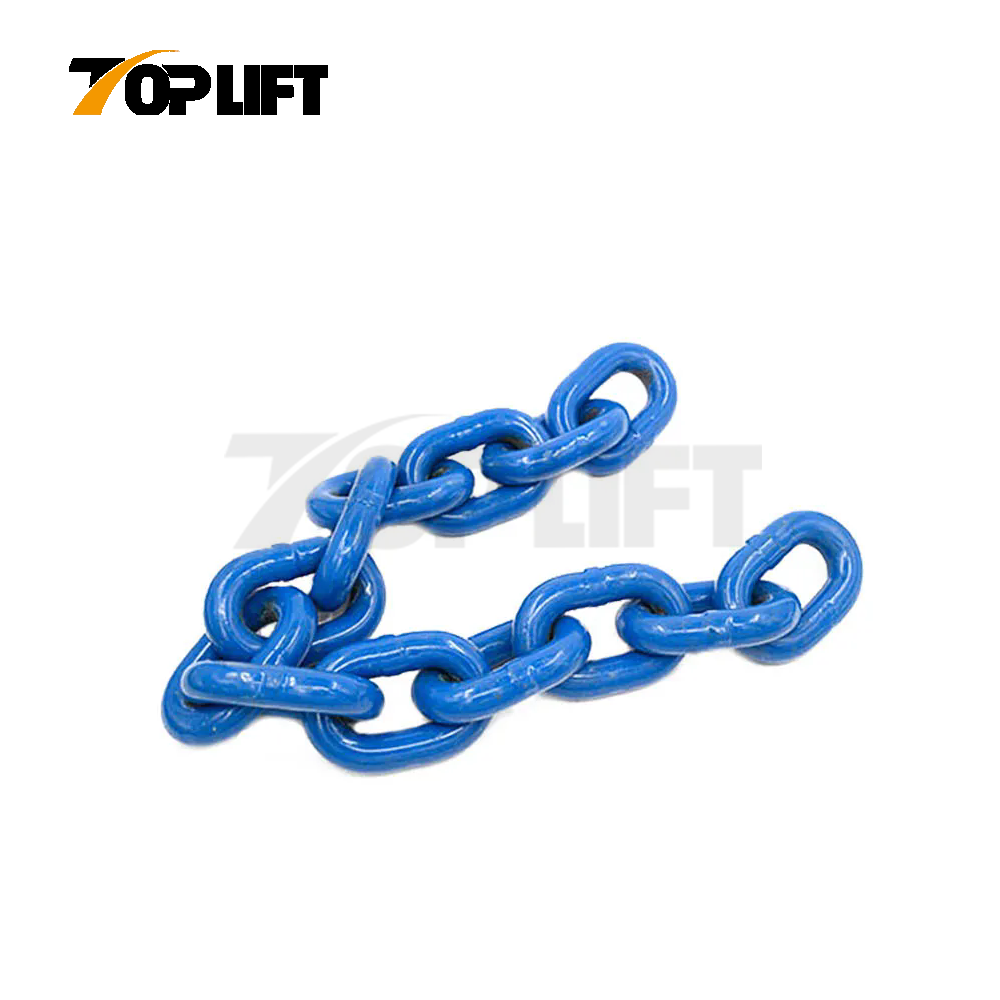

G100 Lifting chain EN818-8
G100 Chain for Lifting, with good wear characteristics and ideal for most lifting applications, are widely used in CRANE,HOIST, BINDING, LIFTING SLINGS and INDUSTRY operations.
Compared with Grade 80 lifting chain,Grade 100 lifting chain has the greatest advantage of 25% higher rated load,higher hardness and better toughness on the surface under the same diameter.
Color | Solid Color | Specification | DIA 4mm to 26mm | |
Transport Package | Steel Drum on iron pallet | Origin | China | |
Trademark | TOPLIFT or OEM | Production Capacity | 5000 Tons/Month | |
HS Code | 73158200 |
Features
G100 Chains are widely used to lift in construction, loading, industry or other areas.
G100 lIfting Chain meet the standard EN818-8:2006.
Chain sling is common to use and can fit all kinds of lifting equipment.
There are master link, grab hook, slip hook, swivel hook, connecting link and other rigging hardware are generally assembled with lifting chain.
Chain sling can be single leg, double legs, triple legs and four legs, etc.
Special Specification And Marks Can Be Made According To Customer's Requirement.
The chain length can be customized, adding customized ID & Batch No. Is also available.
Specification
G100 Lifting Chain EN818-8
Nominal diameter | Tolerance | Pitch | Width | Weight | Working load | Proof load | Breaking load | |||
d | min. | max. | mm | tolerance | b1 min. | b2 max. | Kg/m | |||
4 | -0.16 | 0.21 | 12 | 0.4 | 5.2 | 14.8 | 0.36 | 0,63 | 15,7 | 25,1 |
5 | -0.2 | 0.27 | 15 | 0.5 | 6.5 | 18.5 | 0.56 | 1.00 | 24,5 | 39,3 |
6 | -0.24 | 0.32 | 18 | 0.6 | 7.8 | 22.2 | 0.8 | 1,4 | 35,3 | 56,5 |
7 | -0.28 | 0.38 | 21 | 0.6 | 9.1 | 25.9 | 1.1 | 1,9 | 48,1 | 77 |
8 | -0.32 | 0.45 | 24 | 0.7 | 10.4 | 29.6 | 1.5 | 2,5 | 62,8 | 101 |
10 | -0.4 | 0.54 | 30 | 0.9 | 13 | 37 | 2.3 | 4.00 | 98,2 | 157 |
13 | -0.52 | 0.69 | 39 | 1.2 | 16.9 | 48.1 | 3.9 | 6,7 | 166.00 | 265 |
16 | -0.64 | 0.86 | 48 | 1.4 | 20.8 | 59.2 | 5.8 | 10.3 | 251.00 | 402 |
18 | -0.9 | 0.97 | 54 | 1.6 | 23.4 | 66.6 | 7.4 | 12,5 | 318.00 | 509 |
19 | -1 | 1.03 | 57 | 1.7 | 24.7 | 70.3 | 8.1 | 14.00 | 354.00 | 567 |
20 | -1 | 1.08 | 60 | 1.8 | 26 | 74 | 9 | 16.00 | 393.00 | 628 |
22 | -1.1 | 1.19 | 66 | 2 | 28.6 | 81.4 | 11 | 19.00 | 475.00 | 760 |
23 | -1.2 | 1.24 | 69 | 2.1 | 29.9 | 85.1 | 12 | 20.00 | 519.00 | 831 |
26 | -1.3 | 1.38 | 78 | 2.3 | 33.8 | 96.2 | 15 | 26,5 | 664.00 | 1060 |
Product Details
Packing
G100 Lifting Chains are normally packed in steel Drum on iron pallet
Production
FAQ:
1. How to choose the right lifting chain?
Working Load Limit (WLL): Ensure that the load carrying capacity of the chain meets the requirements of the lifting task. If the load is too big, the chain will be broken; if the load is too small, the lifting effect may be affected.
Chain material: Choose high-strength alloy steel (e.g. G80, G100) to ensure the strength and durability of the chain.
Chain length: Choose the appropriate chain length according to the lifting requirements. Too long or too short will affect the stability of lifting.
Application environment: Consider the temperature, humidity, chemical corrosion and other factors of the application environment to choose the suitable type of chain.
Q2: How to avoid damage during the use of lifting chain?
Avoid overloading: always ensure that the load on the chain does not exceed its rated load (WLL).
Avoid Sudden Shock Load: Avoid violent shaking or impact during the lifting operation to prevent the chain from being subjected to excessive shock load.
Even distribution of load: Ensure that the load is evenly distributed to avoid concentrated loads that cause excessive localised stress on the chain.
Avoid friction: Avoid contact between the chain and sharp objects or rough surfaces to reduce wear and tear.
