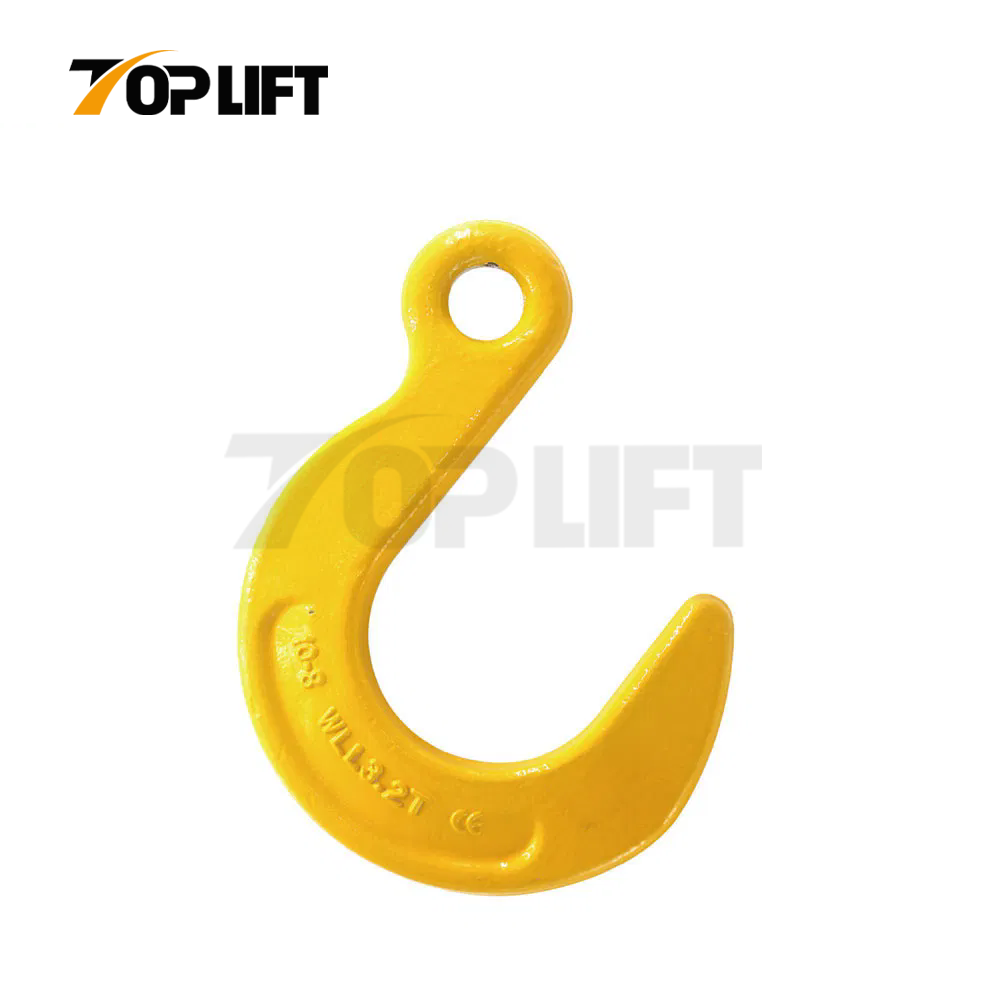

G80 Hardware drop forged top quality eye type C hook
Surface Finish: Powder plastified for enhanced durability and corrosion resistance.
Material: Forged super alloy steel - Quenched and tempered for superior strength and reliability.
Compatibility: Suitable for use with EN818-2 G80 chains.
Proof Test: Individually proof-tested at 2.5 times the Working Load Limit (WLL) for safety and assurance.
Inspection: 100% Magnaflux crack detection to ensure structural integrity.
Fatigue Test: Fatigue tested at 1.5 times the WLL for 20,000 cycles to ensure long-lasting performance.
Breakage Test: Rigorous breakage testing to guarantee product strength and reliability under load.
Our Advantage
The TOPLIFT G80 eye shape foundry type hook is with the standard of CE
The logo we can use TOP LIFT, also we accept you to customize the logo
Rigging hardware with multiple patents. Good at custom and special-shaped products.
| Model | W.L.L. (T) | B.L. (T) | E±1.2 | A±1 | D±1 | H±1 | M±1 | N±0.5 | K±2 | L±2 | Weight (kg) |
| 8-TP015-6 | 1.6 | 6.4 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 | 1.09 |
| 8-TP015-8 | 2 | 8 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 | 1.09 |
| 8-TP015-10 | 3.2 | 12.8 | 76 | 50.8 | 22 | 38 | 32.6 | 23 | 146 | 200 | 2.03 |
| 8-TP015-13 | 5.4 | 21.6 | 89 | 63.5 | 27 | 44.5 | 38.1 | 27 | 171 | 238 | 3.22 |
| 8-TP015-16 | 8.2 | 32.8 | 102 | 76 | 32 | 52 | 46 | 32 | 198 | 278 | 5.26 |
| 8-TP015-20 | 12.8 | 51.2 | 114.5 | 89 | 38 | 65 | 55.9 | 39 | 232 | 325 | 9.1 |
| 8-TP015-22 | 15.5 | 62 | 127.5 | 102 | 45 | 69 | 57 | 40 | 256 | 361 | 11.3 |
| 8-TP015-26 | 21.6 | 86.4 | 140 | 126 | 66.5 | 77 | 66 | 45 | 283 | 402 | 16.8 |
| 8-TP015-32 | 32.8 | 131.2 | 153.5 | 151.5 | 81.5 | 97.5 | 80 | 58 | 327 | 461 | 26.6 |
DESCRIPTION
PRODUCT DETAILS
PRODUCT TESTS
PACKING
FACTORY
APPLICATION
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
