Views: 0 Author: Site Editor Publish Time: 2025-08-18 Origin: Site
A chain hoist and a chain block both lift heavy things, but there is a main difference. A chain hoist is usually powered by electricity. A chain block works by hand. Many people use these words together, but they are not the same. You can find chain hoists and chain blocks in many places. These places include construction, factories, shipping, boats, and mining. Manual chain blocks are used about 40% of the time. They are mostly used in small workshops. Electric chain hoists are used more, about 60% of the time. They are used a lot in big industries.
A chain hoist uses electricity for power, but a chain block works by hand. Pick the one that fits your lifting job.
Electric chain hoists work faster and have more safety tools. They are best for lifting heavy things often in factories.
Manual chain blocks are easy to move and do not need power. They are good for lifting things sometimes in different places.
Always look at the load capacity of your lifting tool. This keeps you safe and stops accidents when you use it.
Think about how heavy the load is, how often you lift, and where you work when picking a chain hoist or a chain block.
A chain hoist is one of the most common lifting appliances you will find in many workplaces. You use a chain hoist to lift, lower, or move heavy loads with ease. This tool uses a chain and a system of gears to give you the power to lift objects that would be impossible to move by hand. Chain hoists come in several types, including manual chain hoists, electric chain hoists, and pneumatic chain hoists.
Manual chain hoists, also called hand-operated chain hoists or lever chain hoists, work by pulling a hand chain. You often use these in small workshops or for jobs that do not need frequent lifting. Electric chain hoists use a motor to lift loads. These are popular in industrial applications and commercial applications because they save time and reduce effort. Pneumatic chain hoists use compressed air and are common in places where electricity is not safe.
TOP LIFT offers a wide range of electric chain hoists, with models from 0.5 tons to 10 tons. You can use these lifting appliances in factories, construction sites, marine work, and oil & gas fields. TOP LIFT chain hoists meet strict industry certifications and quality standards, so you can trust their safety and performance.
Tip: Always check the load capacity of your chain hoist before use. This helps you avoid accidents and keeps your workplace safe.
A chain hoist uses a simple but strong design. Here is a table showing the main parts and what they do:
Component | Function |
|---|---|
Lifting chain | Lifts heavy loads, made from strong steel for safety. |
Dual brake system | Stops the load from falling, uses two brakes for extra safety. |
Speed change gear | Controls how fast the load moves, keeps the hoist running smoothly. |
Reverse phase protector | Protects the hoist if the power lines are connected wrong. |
Limit switch | Stops the hoist if the load goes too high or too low. |
Emergency stop switch | Lets you stop the hoist right away in an emergency. |
Button control handle | Lets you control the hoist safely, even in wet conditions. |
Anti-wear load pulley | Keeps the chain moving smoothly and lasts a long time. |
Overload protection | Stops the hoist if you try to lift too much weight. |
Manual chain hoists rely on your strength. You pull the hand chain, and the gears multiply your force. This makes it possible to lift heavy items, but it takes more time and effort. Electric chain hoists work much faster. You press a button, and the motor does the lifting. This reduces operator fatigue and increases efficiency.

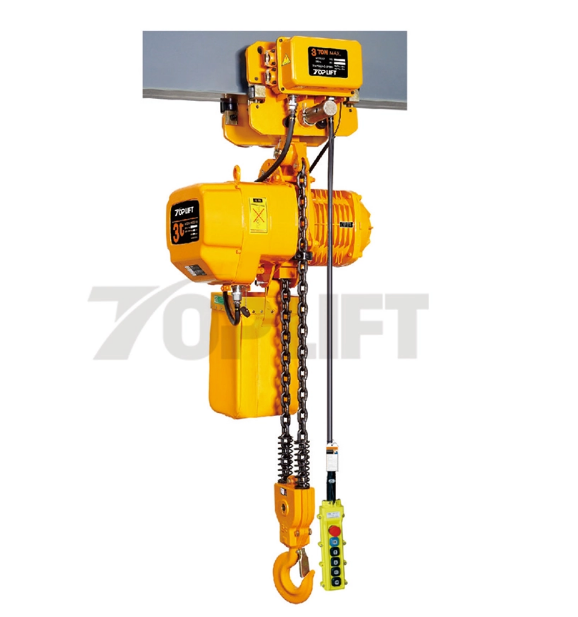

Electric chain hoists also have advanced safety features. These include overload protection, limit switches, and emergency stop buttons. Manual chain hoists use simpler safety systems, like mechanical brakes. If you need to lift loads often or want more safety, an electric chain hoist is the better choice.
You use a chain block when you need to lift heavy objects by hand. This device uses a strong chain and a set of gears to help you move loads that would be too heavy to lift alone. You often hear people call these devices chain pulley blocks. Both names mean the same thing. Chain pulley blocks do not need electricity or batteries. You operate them by pulling on a hand chain. This makes them simple and reliable for many jobs.
Chain pulley blocks are popular because you can use them almost anywhere. You do not need a power source. You can use a chain block in a workshop, on a construction site, or even outdoors. Many people choose chain pulley blocks for their low cost and easy maintenance.
Note: You may also see the term "chain pulley blocks" in catalogs or online stores. This is just another name for a chain block.
When you pull the hand chain on a chain block, you turn gears inside the device. These gears give you a mechanical advantage. This means you can lift a heavy load with less effort. The mechanical advantage depends on how many sections of chain support the moving part. You can think of it as the ratio between the force you put in and the force the chain block gives you back. If you use a chain block with more gears or pulleys, you get more lifting power.
You will find chain pulley blocks in many industries. Here are some common uses:
Lifting steel beams and rubble on construction sites
Hoisting engines and motors in garages
Moving heavy items onto storage racks in warehouses
Installing and maintaining heavy machinery in workshops
Lifting props and equipment in theaters or entertainment venues
Assisting with repairs in auto shops
Precise vertical movement in shipbuilding and heavy industry
Chain pulley blocks give you control and safety when lifting. You can stop and hold a load in place by simply letting go of the hand chain. This makes chain blocks a trusted tool for many lifting tasks.
You might ask how a chain pulley block is different from a chain hoist. Both tools help you lift heavy things, but they work in their own ways. A chain pulley block is a manual tool. You pull the hand chain, and pulleys inside make lifting easier. This means you can lift something heavy with less strength. You do not need electricity or batteries for it.
A chain hoist often uses electric power. You press a button, and the motor lifts the load for you. This makes lifting quicker and easier, especially when you have many things or very heavy loads. You will see chain hoists in factories, warehouses, and construction sites where speed is important.
Here is a table to show the main differences:
Feature | Chain Hoist | Chain Pulley Block |
|---|---|---|
Power Source | Usually electric or pneumatic | Manual (hand-operated) |
Operation | Button or switch controls lifting | Pulling hand chain |
Speed | Fast, consistent | Slower, depends on user |
Safety Features | Advanced (limit switches, overload protection) | Simple mechanical brakes |
Best Use | Frequent, heavy-duty lifting | Occasional, precise, or remote lifting |
Tip: Pick a chain hoist if you need to lift heavy things often or want to save time.
You may see "chain pulley block" and "chain block" in catalogs or technical papers. These names mean the same kind of tool. Both are manual hoists that use pulleys and chains to lift heavy things.
The name "chain pulley block" means a manual hoist for heavy loads.
It works by winding a chain on two wheels, just like a chain block.
Both tools give you a mechanical advantage, so lifting is safer and easier.
Makers use strong steel to build both, so they last a long time.
When you see "chain pulley block" or "chain block," think of them as the same tool. They both help you lift heavy things by hand, using simple mechanics.
When you pick between a chain hoist and a chain block, think about how each tool works. The way you use them is a big difference. You use a chain block by hand. You pull the hand chain, and the inside parts make your force stronger. You need your own strength to lift things. You get good control, but it can take more time and effort with heavy stuff.
A chain hoist gives you more choices. You can use a manual chain hoist, which works like a chain block. Or you can use an electric chain hoist. With an electric one, you press a button to lift or lower things. The motor does the hard work for you. This makes lifting faster and easier. You save energy and feel less tired, especially if you lift many times.
Here is a table to help you compare how each tool works:
Feature | Chain Block | Chain Hoist |
|---|---|---|
Operation Type | Manual operation | Manual or electric operation |
User Effort | Needs a lot of hand effort | Less effort with electric models |
Control Mechanism | Simple hand chain | Advanced control options available |
Portability | Very easy to carry | Usually less easy to carry |
Lifting Capability | Good for lighter loads | Can lift heavier loads |
Tip: If you need to carry your lifting tool around, a chain block is easy to move. If you want to lift heavy things with less work, pick an electric chain hoist.
The way each tool lifts things is also different. A chain block uses a simple system. You pull the hand chain, and gears and pulleys inside help you lift. This makes your strength stronger. It does not need power. You control how fast and how much you lift by pulling the chain.
A chain hoist, especially an electric one, uses a motor to lift things. The motor turns the gears and lifts smoothly. Many electric chain hoists have special features, like speed controls and safety switches. You get a smooth and safe lift every time. This makes electric chain hoists better for big or frequent lifting jobs.
Here is a table that shows the main differences in how they lift:
Feature | Chain Hoist | Chain Block |
|---|---|---|
Mechanism | Motor does the lifting | You do the lifting by hand |
Efficiency | Faster and more efficient | Needs your strength |
Load Control | Automatic controls for accuracy | You control by hand |
Electric chain hoists move loads smoothly and safely.
They use automatic controls for better accuracy.
Chain blocks need you to do the work, so they are slower for big jobs.
Note: Always check how much weight your tool can lift before you start. Using the right tool keeps you safe and protects your things.
You see both chain hoists and chain blocks in many places, but each is best for certain jobs. A chain hoist is great when you need to lift heavy things often. You find them in construction, digging, repair shops, warehouses, and barns. They last a long time and do not break easily. Many people like them because they are easy to use and work well in tough places.
A chain block is best for jobs where you move the tool a lot. You can use it for lifting in construction, especially if you do not have power. Chain blocks are simple and easy to carry. They work well for lifting without big machines.
Here is a table that shows where each tool works best:
Type | Applications | Advantages |
|---|---|---|
Chain Hoists | Construction, digging, repair shops, warehouses, barns | Lasts long, easy to use, good for places without power |
Chain Blocks | Lifting in construction, moving from place to place | Simple to use, easy to carry, good for lifting without big machines |
Chain hoists are perfect for building and digging because they last and are easy to use.
You can use chain hoists in repair shops and warehouses for lifting engines or supplies.
Manual chain blocks are important in construction for lifting heavy things. You can move them easily.
Chain blocks are great for jobs that need you to move the tool and do not have big lifting machines.
If you want to learn more about lifting tools and find the best one for your job, you can visit the TOP LIFT product page.
If you need to pick between a chain hoist and a chain block, look at what each tool does. The table below shows how they are different. You can check things like how much weight they lift, how you use them, how easy they are to move, safety, and cost. Each tool works best for certain jobs and places.
Feature | Chain Hoist | Chain Block |
|---|---|---|
Power Source | Electric, pneumatic, or manual | Manual (hand-operated) |
Operation | Button or switch, fast lifting | Pull hand chain, slower lifting |
Load Capacity (Tons) | 0.5 to 20 (electric/manual) | Up to 20 (custom up to 100) |
Duty Ratings | FEM, HMI, CMAA (for industrial use) | Basic manual rating |
Mobility | Fixed or portable, heavier | Highly portable, easy to move |
Safety Features | Limit switches, overload protection, brakes | Mechanical brakes, simple safety |
Budget Considerations | Higher initial cost, more features | Lower cost, easy maintenance |
Operational Environments | Factories, construction, marine, oil & gas | Workshops, construction, entertainment |
Power Requirements | Needs electricity or air (for powered types) | No power needed |
Tip: Use a chain hoist if you have power and need to lift heavy things often. It is fast and safe. Pick a chain block if you want a tool you can carry and use anywhere without power.
The chart below shows how much weight each tool can lift. Manual and electric chain hoists can lift many sizes. Chain blocks can be made for very heavy loads.
Always check the duty rating and safety features before you buy. These ratings help you choose the right tool for your job. Cost is important too. Chain blocks cost less and are easy to take care of. Chain hoists have more features and are better for big jobs.
Selecting the right lifting device for your job can make your work safer and more efficient. You need to think about several important factors before you decide.
You should use a chain hoist when you need to lift heavy loads often or want to save time. Electric chain hoists work well in factories, warehouses, and busy construction sites. These machines lift quickly and help you avoid fatigue. If you have access to power and need advanced safety features, a chain hoist is the best choice. Electric models offer overload protection, emergency stop switches, and limit switches for extra safety. You can use a chain hoist for jobs that require smooth and fast lifting. Always check the duty cycle. Electric chain hoists can run for a set time before needing a break. If you need to lift many times in a row, make sure your hoist can handle it.
Tip: Always inspect your chain hoist before and after use. Make sure the brakes work and the load is secure. Wearing personal protective equipment keeps you safe.
A chain block is the right tool for lifting tasks that happen less often or in places without electricity. You can carry a chain block easily from one job site to another. Manual chain blocks work well for precise lifting and in tight spaces. If you need to lift something slowly and carefully, a chain block gives you control. These devices need less maintenance and cost less to buy. You can use a chain block in workshops, outdoor sites, or anywhere you need a portable lifting device.
Check the weight of your load.
Decide how often you will lift.
Look at your work environment (power, space, weather).
Think about how fast you need to lift.
Compare safety features.
Consider your budget.
Factor | Chain Hoist | Chain Block |
|---|---|---|
Load Capacity | High, for frequent heavy lifting | Good for lighter, occasional loads |
Frequency of Use | Best for regular lifting | Best for occasional lifting |
Power Availability | Needs electricity | No power needed |
Portability | Less portable | Very portable |
Safety Features | Advanced | Basic |
Maintenance | Needs regular checks | Easy upkeep |
Budget | Higher cost | Lower cost |
If you want to explore more lifting devices or need help choosing, visit the TOP LIFT product page for expert advice.
You now understand how chain hoists and chain blocks are different. Chain hoists, especially electric ones, lift heavy things fast and safely. Chain blocks let you lift by hand and are easy to carry. Look at the table below to help you pick:
Tool | Best For | Operation |
|---|---|---|
Chain Hoist | Lifting heavy things often | Electric/manual |
Chain Block | Lifting sometimes, easy to move | Manual |
Before you pick a tool, check how heavy your load is, where you will use it, and what safety you need. For safe lifting, see TOP LIFT’s product range and get help from experts for your project.
You use a chain hoist when you want electric or powered lifting. You use a chain block for manual lifting by hand. Chain hoists work faster and have more safety features. Chain blocks are simple and portable.
Yes, you can use a chain block anywhere. You do not need electricity or batteries. You pull the hand chain to lift heavy loads. This makes chain blocks great for outdoor or remote jobs.
You check the weight of your load and how often you lift. You look at your work area and power supply. You pick a chain hoist with enough capacity and safety features.
Chain hoists have safety features like limit switches, overload protection, and emergency stop buttons. You should inspect your hoist before each use. Always follow safety rules and wear protective equipment.
You find chain hoists and chain blocks in construction, factories, marine work, oil and gas, and workshops. These tools help you lift heavy items safely and efficiently in many fields.
