TP-900015
| Quantity: | |
|---|---|

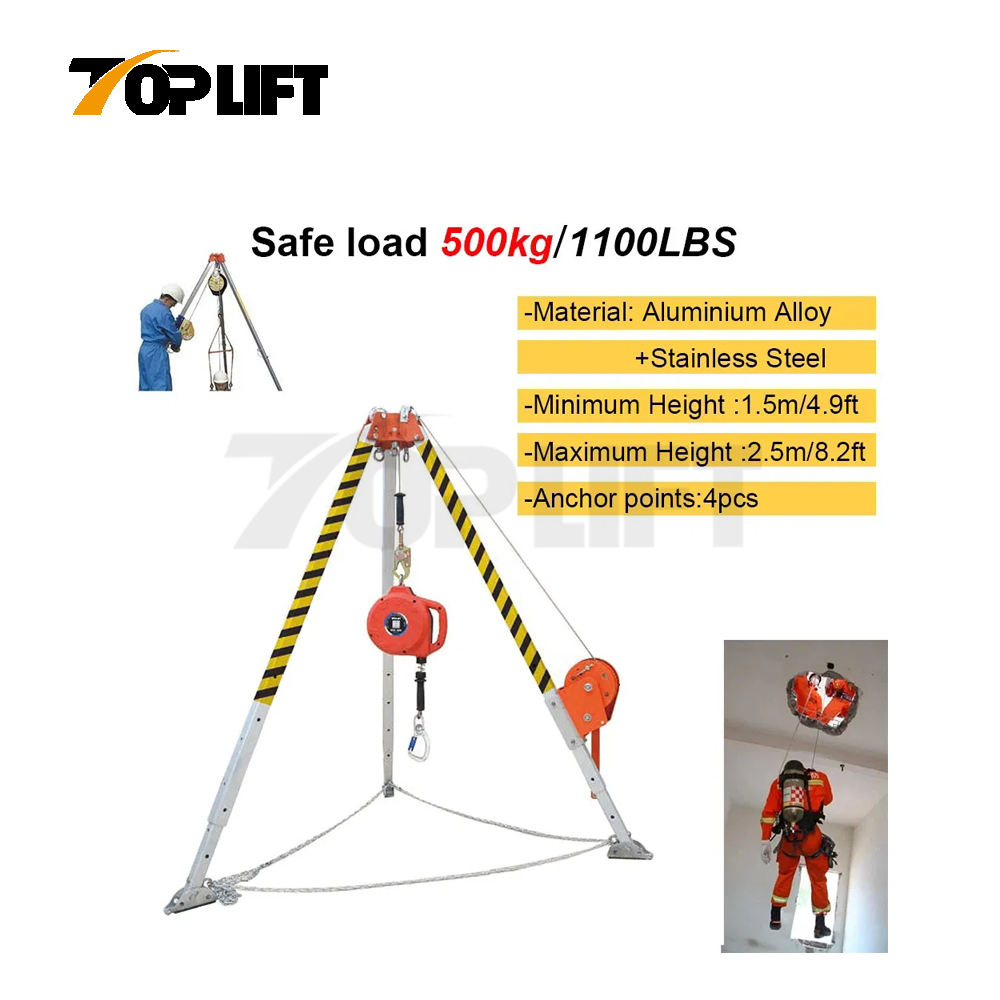

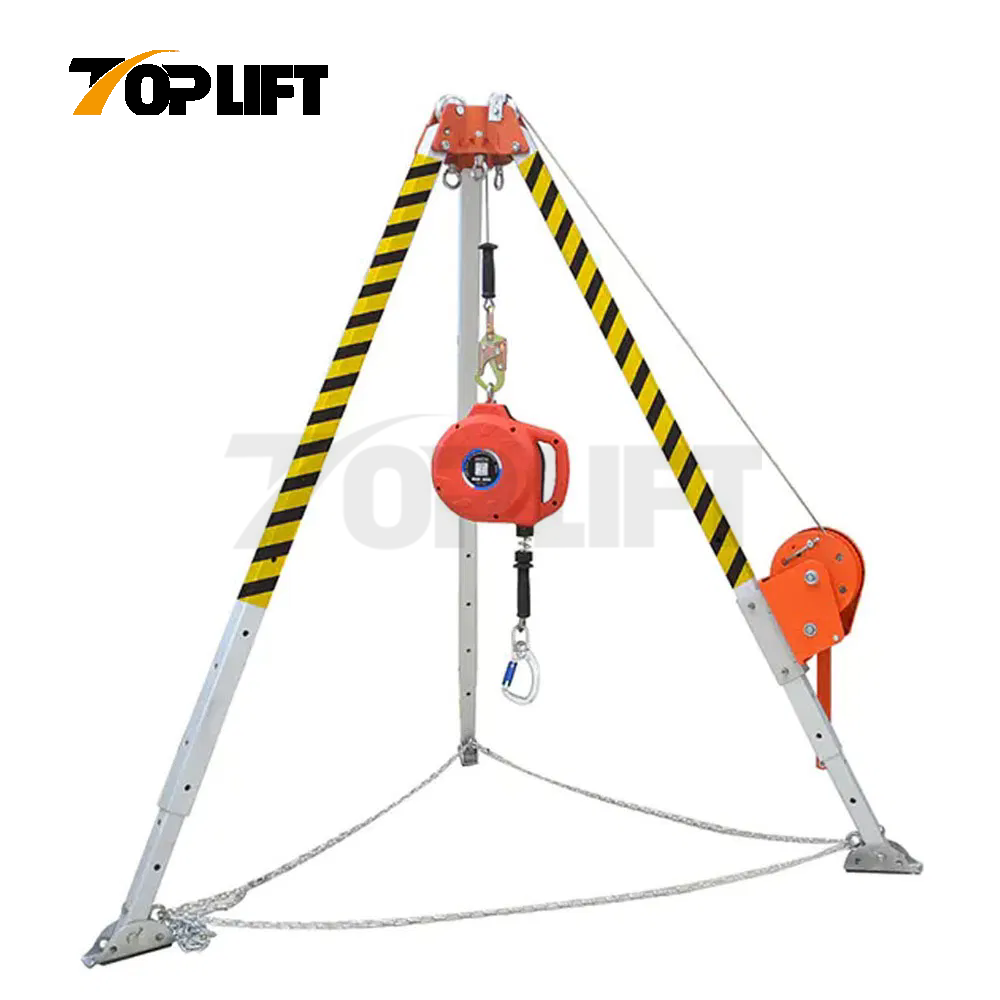

The rescue tripod consists of frame body, sling, winch, and protection chains. It is made of durable super light aluminium alloy and stainless steel. The legs is adjustable, and the safety factor is more than 10. It can effectively protect the life safety of the ground operator and the damage of the workpiece being lifted. It is used in metallurgical automobile manufacturing, petrochemical engineering, engineering construction, electic power, high-aitude workplaces such as ships, communications, pharmaceuicais, and bridges. This producis only part of the system, and the fallprotection system is.: verical life system and horizontal life sytem. Horizontal ife systems are used extensively.
Basic Info
| Fall Arrest -mobile Anchor Device Rescue Tripod With Winch | ||
| Model: TP-900015 | ||
| Tripod | Maximum numberof user | 3 Users |
| Anchorage points | 3pcs | |
| Tripod height | 1.5m~2.5m | |
| Maximum working Load | 750kg | |
| Tripod Weight | 21.05kg | |
| Material | Aluminum Alloy & Alloy Steel | |
| Standard | EN795:2012TypeBPDCEN/TS16415:2013TypeB | |
| Winch | Anchorage | 1User |
| Maximum Rated Load | 140kg | |
| Wire rope length | 10~35m | |
| Maximum lifting distance | 35m | |
| Wire rope | 5mm&Stainless steel wire rope; | |
| Material | Alloy Steel | |
| Standard | EN1496:2017TypeA | |
Rescue Tripod with Winch | Type | Light use |
| Anchorage Number | 3 | |
| Maximum Rated Load | 750kg | |
| Design load | 22kN | |
| Maximum lifting distance | 35m | |
| Standard | XF494:2023 | |
Features:
1. The tripod is suitable for the operation of high places, cliffs and confined Spaces, such as pits, shafts, drains, cellars and sewage Wells, sewers, etc.
2. It is Widely used in fire fighting, municipal, rescue agencies.
3. Retractable leg support, built-in adjustment device, can lock the leg with bolt.

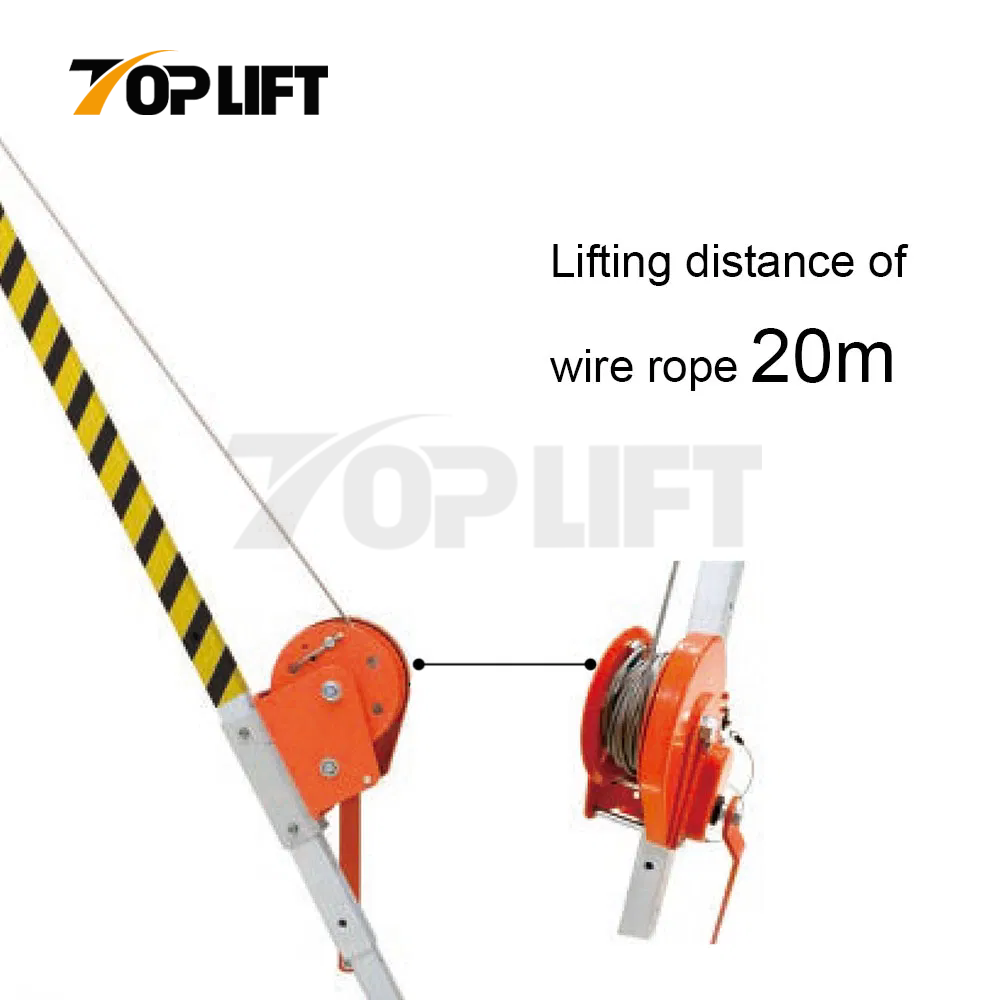

4. Automatic lock winch for rising and falling can protect sling work.
5. The cable of sling is made of stainless steel, with good tenacity and rust proof.
6. Convenient combination is suitable to fix at the well and pit mouth.
7. The frame body is made of aluminum, lightweight and durable.

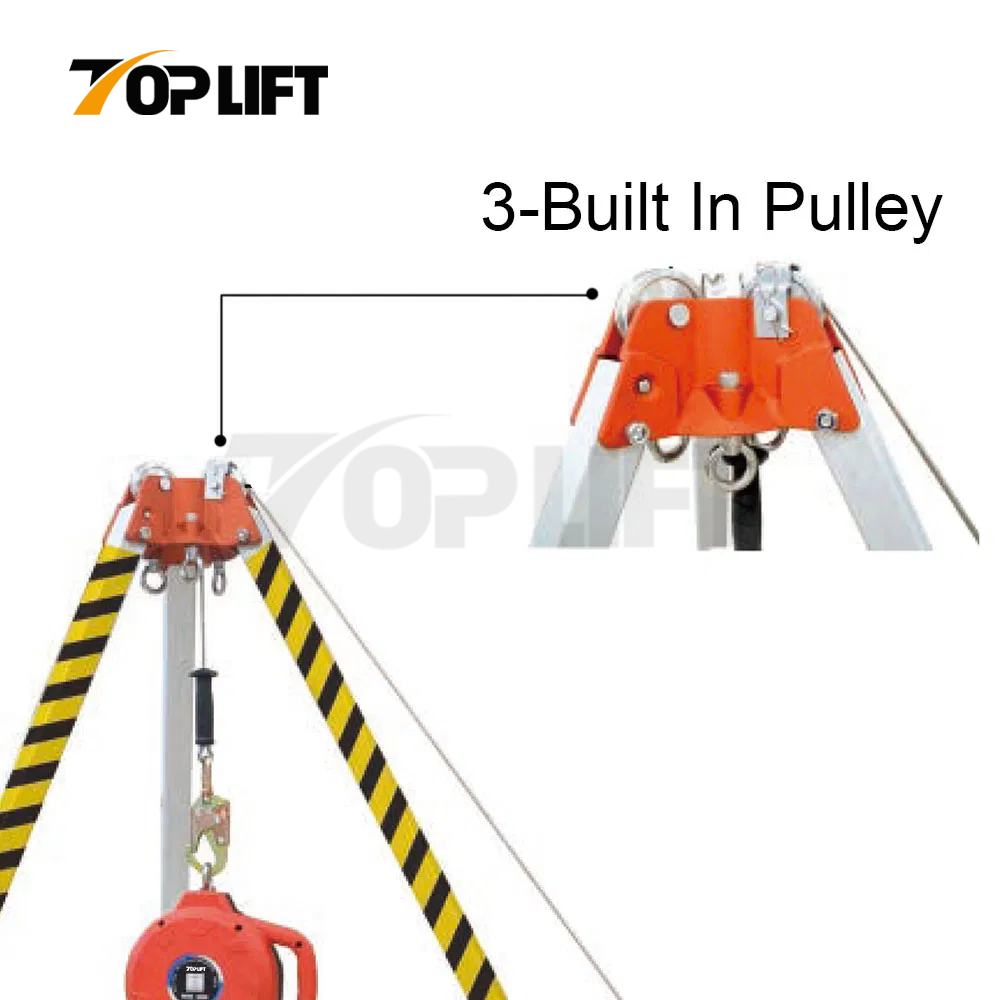

8. Equipped with 3 Built-In Pulley. Maximum lifting distance of steel wire rope :20m
9. Safety webbing can provide additional support and strength.
10. Our rescue tripod that meet CE standard is light weight, durable and widely used in many situations.
Our Advantages
1. OEM accepted and offer confidentiality agreement business secret.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Product Deccription
Highlights of Rescue Tripod with Winch TP-900015
Hight Light 1: Safety Pin
The Safety Pin can be easily taked out to regulate the height of Tripod.
When the height is set, the safety pin can be pushed in to fix the height firmly.
Hight Light 2
The special organs make the winch can be easily fixed or moved away.
Hight Light 3
Anti-slip rubber grip
FAQ
Q: Do you offer OEM service?
A: We provide OEM service and offer confidentiality agreement business secret contract for your design safe.
Q:Can we just customize the goods?
A: Yes, you can. Just give us detailed information and we will give you a quotation.
Q: Can I order products that aren't shown on your website?
A: If you're looking for products that don't show on the website, please contact us and we'll respond you in a positive and efficient style.
Q: Lowest price in China?
A: Definitely we offer very competitive price for our products, further more, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expecting.
Q: What makes you different with others?
A: 1) Our Excellent Service
We promise to reply with a price within 24 hours - sometimes even within the hour. If you need some advice, just call our export office we will answer your questions immediately.
2) We will finish the production on the delivery time according to the promise in the contract.
