TOP LIFT air lift bags and water bags are manufactured of heavy duty 3x3 Panama PVC coated fabric. All seams are HF weld, no glue or hot-air welding.
We use the highest quality shackles, lifting straps, master-link and other accessories, which meet/over industry standard. TOP LIFT load test water bags are desianed, ma nufactured, tested and ce rtificated in MAaccordance with LEEA 051. We accept OEM/ODE order, meeting any customized size and design. We provide rent service and project contract service. Underwater air lift bags are designed, manufact- ured and tested in compliance with IMCA D016. it has a proven and certified factor of safety in excess of 5:1.
| Model NO. | TP-PLB |
| Material | UV Resistance PVC Coated Fabric |
| MOQ | 1 PC |
| Color | Accroding to Customer Request |
| Function | for Crane Load Test |
| Production Time | 15-30days |
| Certificate | CCS.ABS.Lrs.BV.Gl.Dnv.Nk |
| Transport Package | Wooden Box |
| Specification | 1 ton-100 ton |
| Trademark | TOPLIFT/OEM |
| Origin | China |
| Production Capacity | 150 PCS/Month |
Capacity: 1-100 ton can be offered.
Material: UV Resistance PVC coated fabric.
Usage: Load testing
Function: Load Testing
Specification
| Model | Capacity(kg) | Max .Diameter | Filled Height | Gross Weight |
| TP-PLB-1 | 1,000 | 1.3m | 2.2m | 50kg |
| TP-PLB-2 | 2,000 | 1.5m | 2.9m | 65kg |
| TP-PLB-3 | 3,000 | 1.8m | 2.8m | 100kg |
| TP-PLB-5 | 5,000 | 2.2m | 3.7m | 130kg |
| TP-PLB-6 | 6,000 | 2.3m | 3.8m | 150kg |
| TP-PLB-8 | 8,000 | 2.4m | 3.9m | 160kg |
| TP-PLB-10 | 10,000 | 2.7m | 4.8m | 180kg |
| TP-PLB-12.5 | 12,500 | 2.9m | 4.9m | 220kg |
| TP-PLB-15 | 15,000 | 3.1m | 5.5m | 240kg |
| TP-PLB-20 | 20,000 | 3.4m | 5.5m | 300kg |
| TP-PLB-25 | 25,000 | 3.7m | 5.7m | 330kg |
| TP-PLB-30 | 30,000 | 3.9m | 6.3m | 360kg |
| TP-PLB-35 | 35,000 | 4.2m | 6.5m | 420kg |
| TP-PLB-50 | 50,000 | 4.8m | 7.5m | 560kg |
| TP-PLB-75 | 75,000 | 5.3m | 8.8m | 820kg |
| TP-PLB-100 | 100,000 | 5.7m | 8.9m | 1050kg |
| Model | Capacity | Max.Diameter | Filled Height |
| PLB-3L | 3000kg | 1.2m | 2.6m |
| PLB-5L | 5000kg | 2.3m | 3.2m |
| PLB-10L | 10000kg | 2.7m | 4.0m |
| PLB-12L | 12000kg | 2.9m | 4.5m |
| PLB-20L | 20000kg | 3.5m | 4.9m |
| PLB-40L | 40000kg | 4.4m | 5.9m |
Application

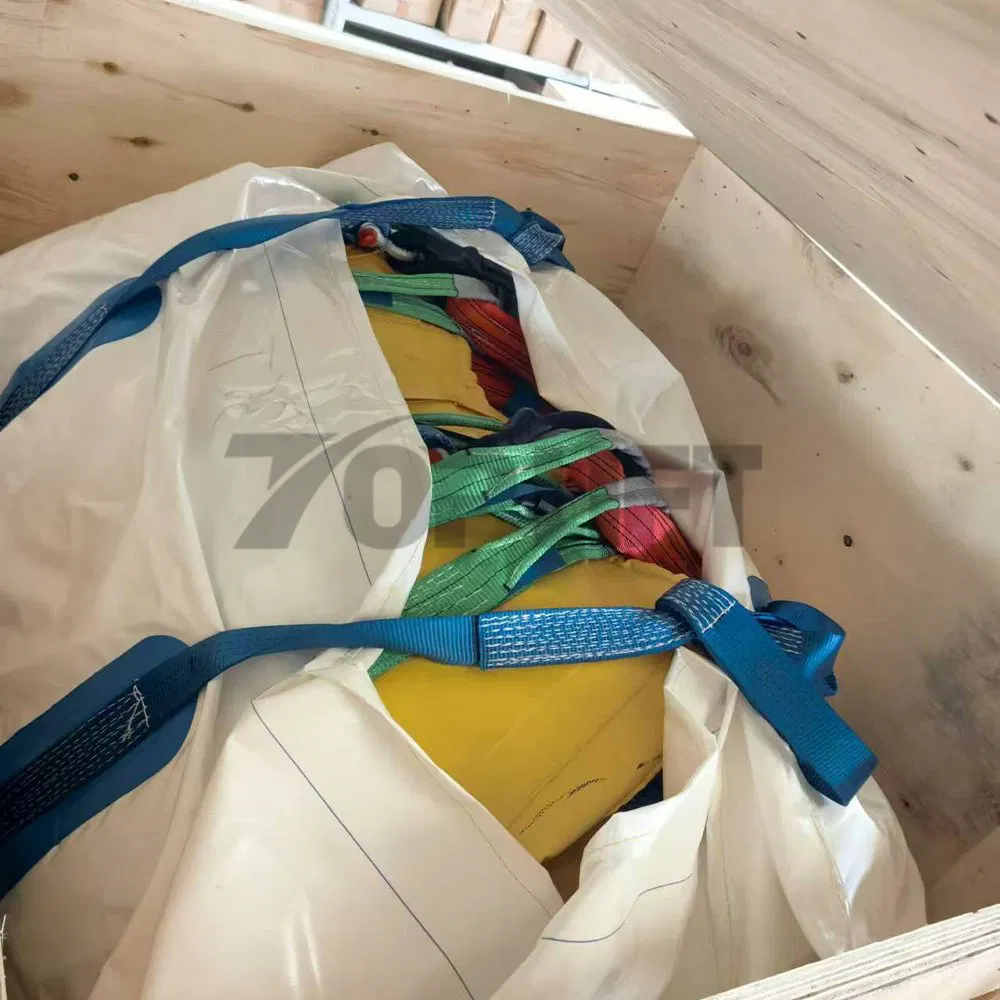

Packaging & Shipping
| Package Size | 50.00cm * 50.00cm * 45.00cm |
| Package Gross Weight | 50.000kg |
FAQ
Q: How long about the shortest delivery time?
A: Generally 30-45 days. Actually it is according to your order quantity. Customized products will take longer. But we could rush the order if you need urgently.
Q. What's your MOQ of water bags?
A: If you accept the package of our brand, any quantity you can order.
Q: Can you make customized items?
A: Yes. Please provide us the samples or the sketches, then we could assist you!
