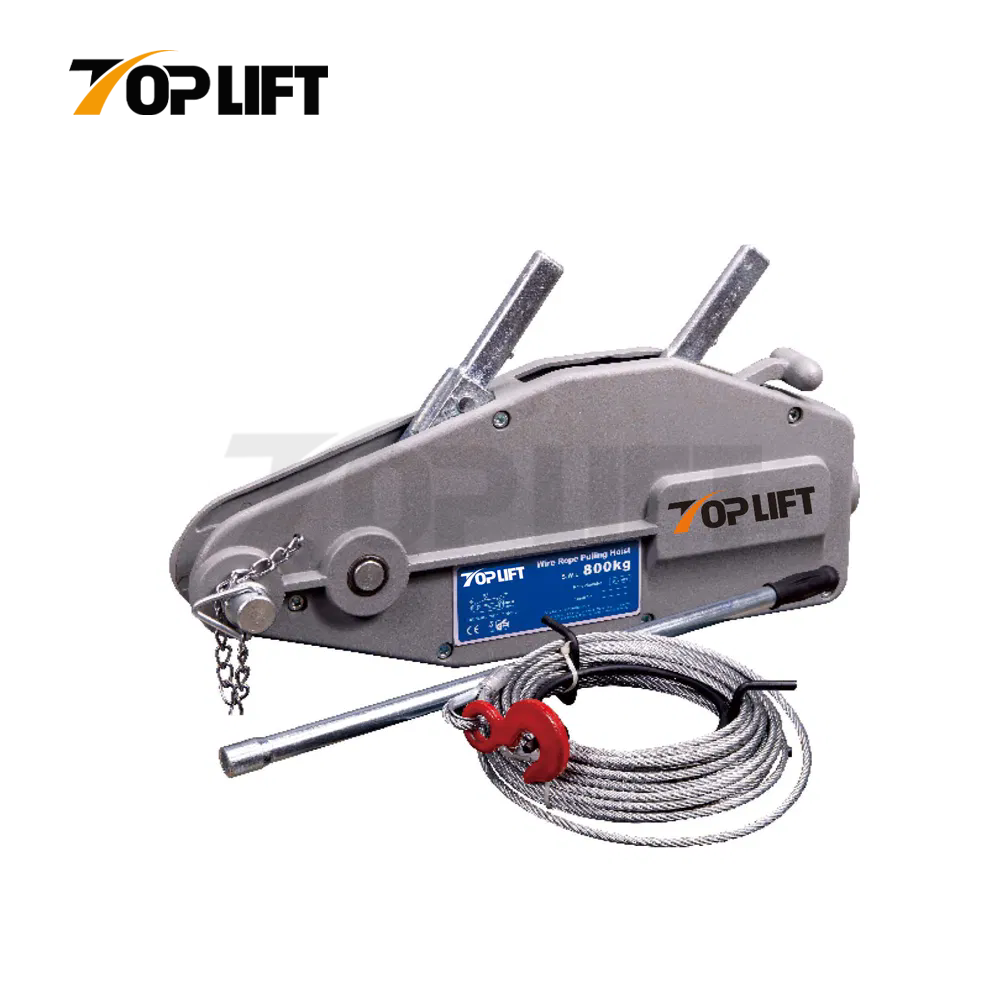

TP-LIFTING Durable Manual Pulling Equipment Wire Rope Hoist Model Y
WLL: 800-5400 KGS
Model Type. | Y | Transport Package | in Pallet | |
Specification | 800-5400 KGS | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 8425399000 |
Features
Forward and reversing levers in tandem provide slim design and assure power transfer along the center line.
Overload protection is by a shearing pin in the forward lever,Spare shear pins are conveniently located in the carrying handle or operating lever.A broken pin can be replaced without removing the load.
A lever disengages the rope clamp system allowing easy,smooth installation of the wire rope.
The parallel arrangement of the clamping system protects the wire rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
The large opening in the top of the unit allows easy cleaning:simply flush the unit with water,apply motor oil for lubrication and the puller is again ready for use.
Specification
Model | Rated Forward Hand Power (N) | Rated Lifting Capacity (kg) | Rater Forward Travel(Swing forward &backward) (mm) | Rope Diameter (mm) | Wire Rope Safety Factor Load Capacity | Safety Factor & Static Load Capacity | Max. Travelling Load (kg) | A /mm | B /mm | C /mm | D /mm | E /mm | L1 /cm | L2 /cm | Net Weight (kg) |
Y-800 | 341 | 800 | ≥52 | 8.3 | 5 | 4 | 1200 | 426 | 235 | 168 | 60 | 64 | 80 | 80 | 14.6 |
Y-1600 | 438 | 1600 | ≥55 | 11.0 | 5 | 4 | 2400 | 545 | 280 | 190 | 72 | 97 | 80 | 120 | 26.4 |
Y-3200 | 438 | 3200 | ≥28 | 16.0 | 5 | 4 | 4000 | 660 | 325 | 230 | 91 | 116 | 80 | 120 | 49.3 |
Y-5400 | 745 | 5400 | ≥30 | 20.0 | 5 | 4 | 8000 | 932 | 420 | 300 | 155 | 152 | 80 | 120 | 98.0 |

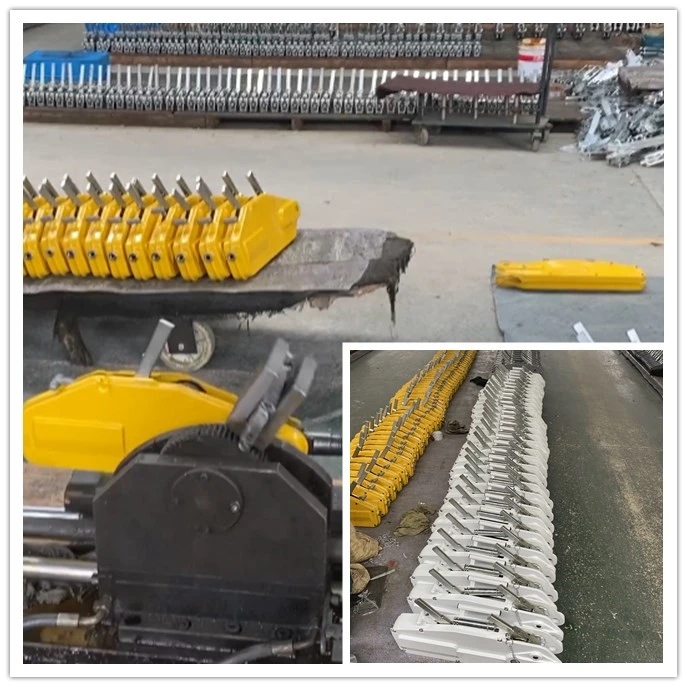

Production
Packing
FAQ
1. How to order the products?
Please send inquiry with detail, including Model No., size, quantity and packing. If possible, photos or links from you are highly appreciated for us to get a better understanding about your demand.
2.How about sample?
We provide free quantity samples, but express charges are accounted to buyers..
3.How about the production time ?
Normally 35 days are needed for production after deposit received. Customized products are excepted.
4.How will my order be shipped?
Usually shipped by sea, small order or urgent order can be delivered by air or by express.
5.How about the mini order ?
Depend on the particular products, please confirm with us.
