Product Description

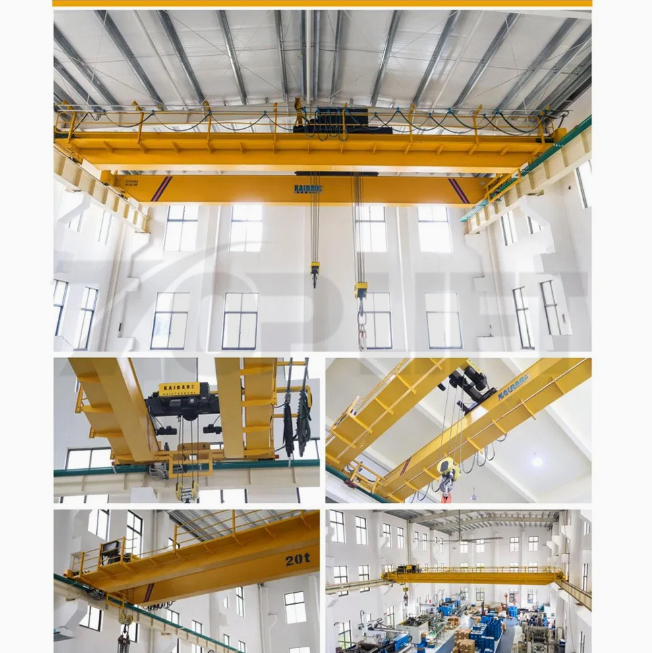

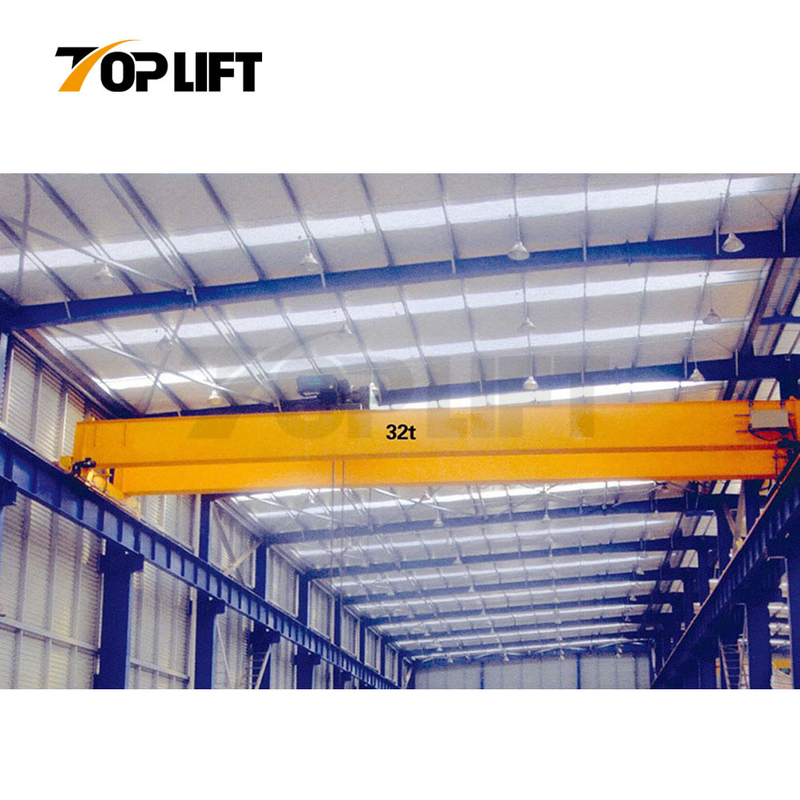

The 5-32&5T LH Electric Hoist Overhead Crane is a robust and versatile double-girder crane designed for medium to heavy-duty lifting applications.

Equipped with a reliable electric hoist, this crane offers a lifting capacity ranging from 5 to 32 tons for the main hook and an additional 5 tons for the auxiliary hook, ensuring flexibility and efficiency in handling a wide variety of loads.

Engineered with advanced safety features and precise control systems, it is ideal for workshops, warehouses, manufacturing plants, and other industrial environments.

Its compact structure, smooth operation, and low maintenance requirements make it a cost-effective and high-performance solution for overhead material handling

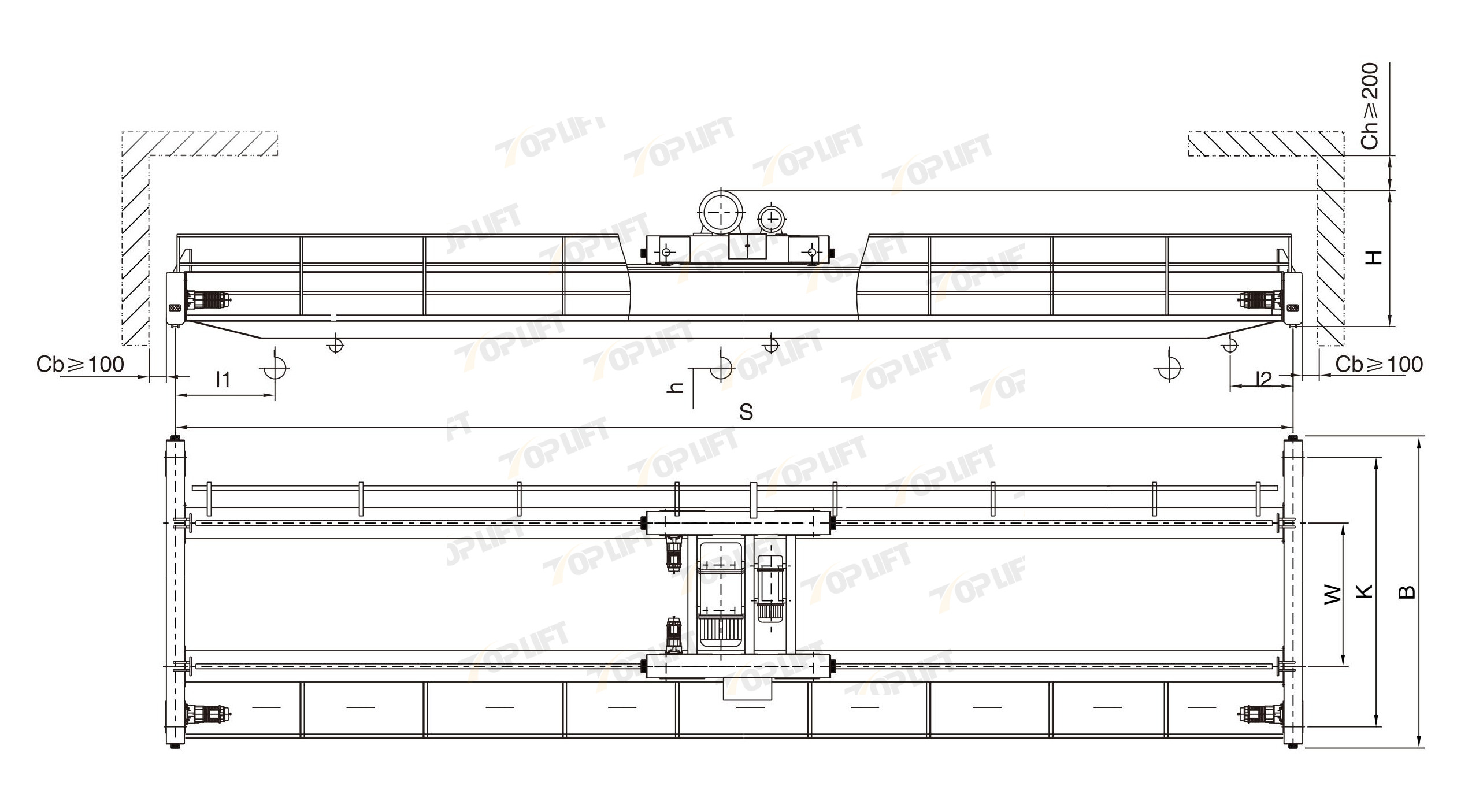

Product Size:

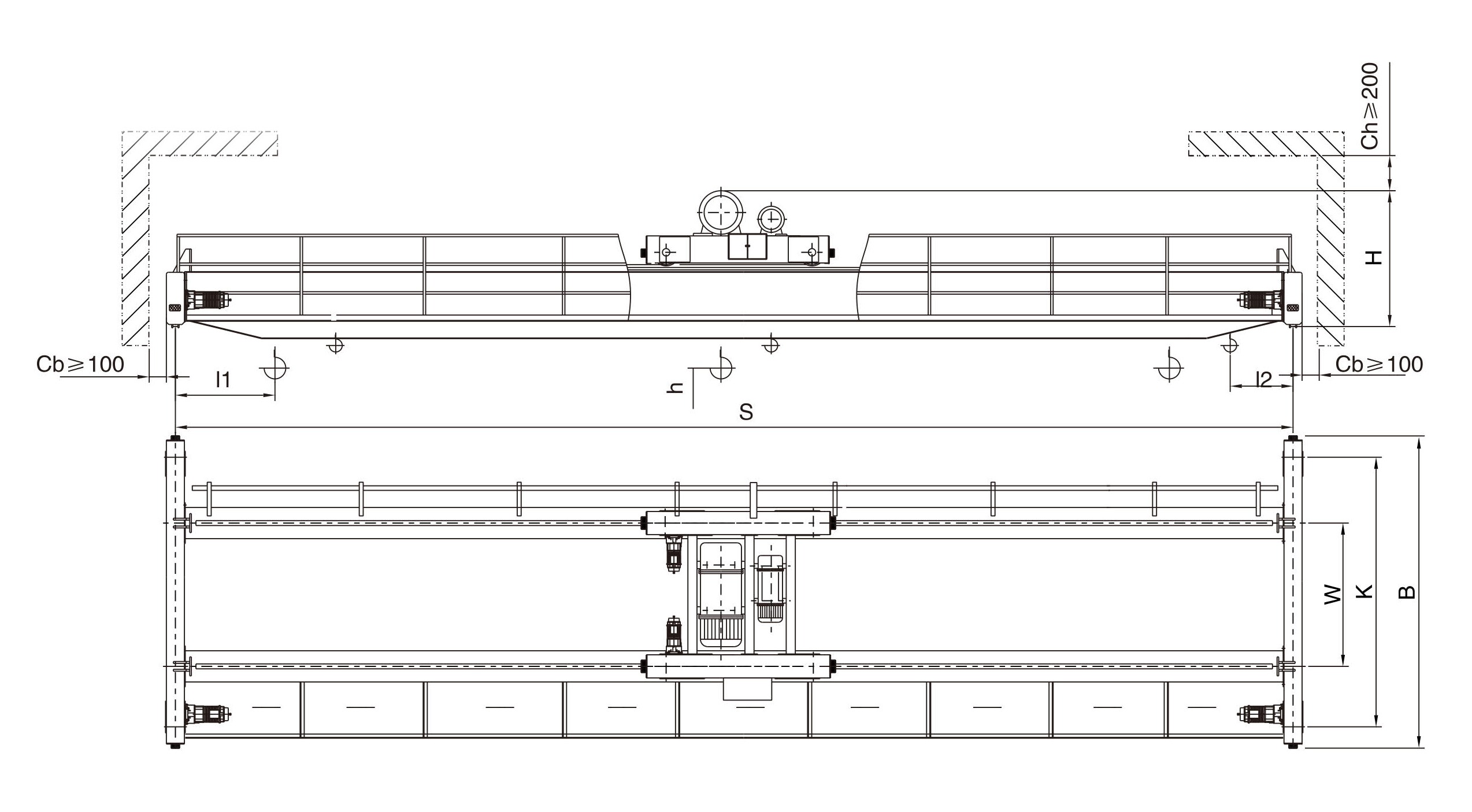

5-32&5T LH 型电动葫芦桥式起重机 (3)

Product Date sheet:

Load Capacity	Main		t	5								10										20										32
	Auxiliary			/								/										5										10
Crane Span	S		m	105,135		165	195	225	255	285	315	105	135	165		195	225	255		28,531.5		105,135		165		195	225	255		285	315	105	135	165		195	225	255	28,531.5
Lifting Height	Main			12																		12
	Auxiliary			/																		12
Working Level				A4																		A4
Speed	Main Hoisting		m/min	8(8/0.8)								7(7/0.7)										3.5(3.5/0.35)										3.5(3.5/0.35)
	Auxiliary Hoisting			/								/										8(8/0.8)										7(7/0.7)
	Trolley Traveling			20								20										20										20
	Crane Traveling	Rround Control		20 30								20 30										20 30										20 30
		Operator Cabin		45 60								45 60										45 60										45 60
Electric Hoist Type		Main		CD15-12A2 MD15-12A2								CD110-12A2 MD110-12A2										CD120-12A2 MD120-12A2										HCD32-12A2 HMD32-12A2
		Auxiliary		/								/										CD15-12A2 MD15-12A2										CD110-12A2 MD110-12A2
Electric Motor	Main Hoisting		kw	ZD141-4/7.5 ZDS1-7.5/0.8								ZD151-4/13 ZDS1-13/1.5										ZD151-4/13 ZDS1-13/1.5										ZD151-4/13 ZDS1-13/1.5
	Auxiliary Hoisting			/								/										ZD141-4/7.5 ZDS1-7.5/0.8										ZD132-4/4.5 ZDS1-4.5/0.4
	Trolley Traveling			2×0.4								2×0.8										2×1.1										2×1.5
	Crane Traveling	Rround Control		2×0.8				2×1.5				2×1.1			2×1.5				2×2.2			2×1.5			2×2.2				2×3.0			2×2.2			2×3.75
		Operator Cabin		2×1.5				2×2.2				2×1.5			2×2.2				2×3.0			2×2.2			2×3.0				2×3.75			4×2.2
Trolley			t	1.2								1.5										3.6										4.5
Weight	Gross	Rround Control	t	6.6	7.6	8.4	11	123	15.5	178	20.4	8.6	10	13.7		154	16.9	18.3		19.4	21.5	10.8	12.6	15.5		18	520	,823		,627,	230.2	9.3	10.6	13.8		16	184	211	247	27.4
		Operator Cabin		7.1	8.2	9	11.6	12.8	16	18.3	21	9.2	11.7	14.3		16	17.5	19		20.1	22	11.8	13.6	16.5		195	21.8	246		283	31.3	10.3	11.6	14.8		17.1	19.4	22	25.8	28.7
Max Wheel Load		Rround Control	KN	46	49	54	59	65	72	81	90	82	90	94		101	108	112		116	126	134	140	150		159	166	175		185	195	114	119	129		136	143	152	163	174
		Operator Cabin		48	51	56	61	67	74	83	92	82	90	94		101	108	112		116	126	137	143	153		162	169	179		189	199	117	122	132		140	147	156	167	178
Recommended Rail Type for Crane				P24; P38								P38; P43; P50										P38; P43; P50										P38; P43; P50
Power Suppy				3 Phase AC50Hz 380V
