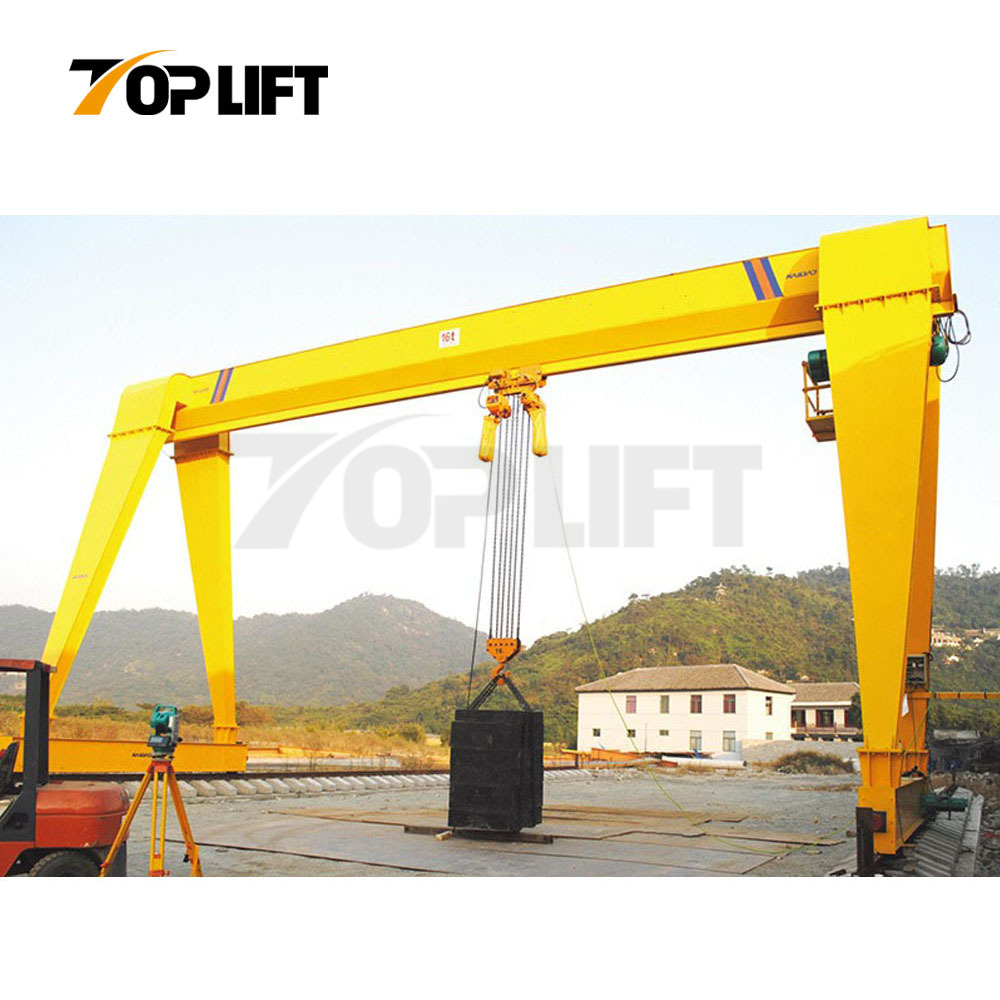

The 5–16T MH Type Electric Hoist Gantry Crane is a medium-duty, rail-mounted lifting solution widely used in warehouses, freight yards, factories, and construction sites.
It features a compact structure with an electric hoist as the lifting mechanism, offering smooth operation, high lifting efficiency, and easy maintenance.
With a lifting capacity ranging from 5 to 16 tons, the span and lifting height can be customized to meet specific operational needs.
This gantry crane delivers reliable performance and excellent cost-effectiveness, making it an ideal choice for material handling and loading/unloading tasks.
Product Details:
| 5-16T MH Type Electric Hoist Gantry Crane | ||||||||||||||||||
| Lifting Capacity(T) | 5 | 10 | 16 | 20 | ||||||||||||||
| Crane Span | m | 12 | 18 | 24 | 30 | 12 | 18 | 24 | 30 | 12 | 18 | 24 | 30 | 12 | 18 | 24 | 30 | |
| Lifting Height | 69 | 69 | 69 | 69 | ||||||||||||||
| Working Level | A3-A5 | A3-A5 | A3-A5 | A3-A5 | ||||||||||||||
| Electric Hoist Type | HKDL0502 | HKD1004 | HKD1606 | HKD2008 | ||||||||||||||
| Speed | Lifting | m/min | 2.7;2.7/0.9 | 2.7;2.7/0.9 | 1.8;1.8/0.6 | |||||||||||||
| Trolley Traveling | 11/21 | 11/21 | 11/21 | 11/21 | ||||||||||||||
| Crane Traveling | 20/30 | 20/30 | 20/30 | 20/30 | ||||||||||||||
| Electric Motor | Crane Traveling | Kw | 2×1.5 | 2×2.2 | 2×2.2 | 2×3.75 | 2×3.75 | 4×2.2 | 4×2.2 | 4×3.75 | ||||||||
| Gross weight | Kg | 12806 | 15324 | 18243 | 24672 | 16876 | 18963 | 26793 | 33620 | 29200 | 31300 | 39000 | 42500 | 30500 | 36200 | 40100 | 43800 | |
| Max Wheel Load | KN | 68.6 | 71.3 | 74.9 | 79.8 | 93.6 | 101.6 | 138.9 | 176.8 | 165 | 182 | 203 | 216 | 185 | 202 | 223 | 236 | |
| Recommended Rail Type for Crane | P24;P38;P43 | P38;P43; | ||||||||||||||||
| Power Supply | 3 Phase AC 50Hz 380V | |||||||||||||||||
The 5–16T MH Type Electric Hoist Gantry Crane is a medium-duty, rail-mounted lifting solution widely used in warehouses, freight yards, factories, and construction sites.
It features a compact structure with an electric hoist as the lifting mechanism, offering smooth operation, high lifting efficiency, and easy maintenance.
With a lifting capacity ranging from 5 to 16 tons, the span and lifting height can be customized to meet specific operational needs.
This gantry crane delivers reliable performance and excellent cost-effectiveness, making it an ideal choice for material handling and loading/unloading tasks.
Product Details:

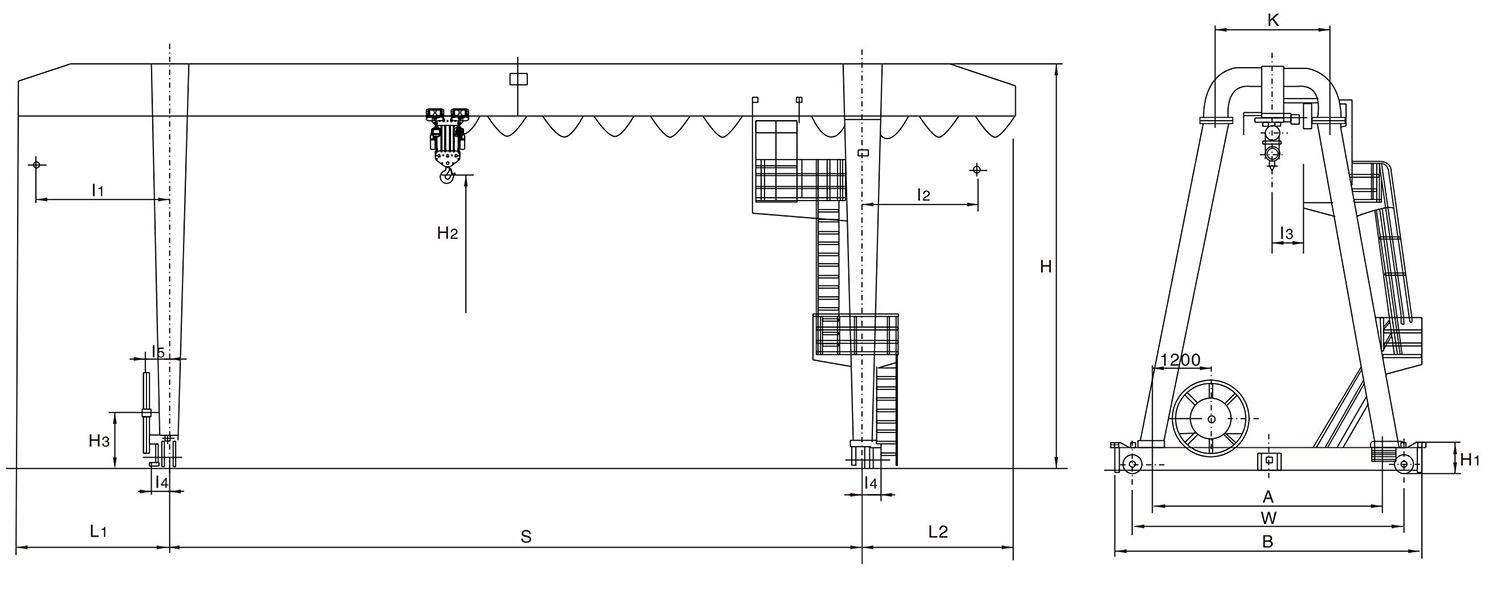

| 5-16T MH Type Electric Hoist Gantry Crane | ||||||||||||||||||
